Home > Products > Manual plane screen printer > IR hot Drying Tunnel conveyor dryer oven SD1200 oven for acrylic

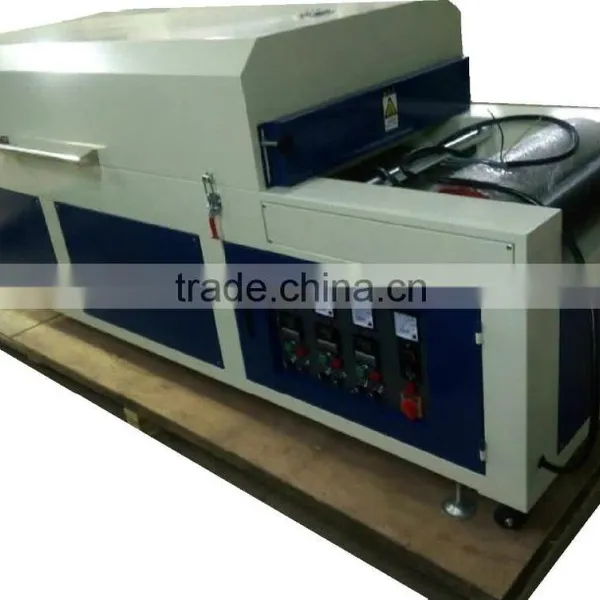

IR hot Drying Tunnel conveyor dryer oven SD1200 oven for acrylic
- 50 Set / Sets per Month
- Shenzhen China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Condition: | New | Type: | Other, IR hot oven, IR oven | Place of Origin: | Guangdong, China |
| Brand Name: | LC | Model Number: | SD1200 | Voltage: | AC 380V 50HZ |
| Power(W): | 2KW | Dimension(L*W*H): | (L)1580x(W)1180x(H)1300mm | Weight: | 180kg |
| Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
IR hot Drying Tunnel conveyor dryer oven SD1200 oven for acrylic
IR hot Drying Tunnel conveyor dryer oven SD1200 oven for acrylic
Description:
IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.
Features:
1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.
2. adopt hot circulating system,save energy effectivly.
3. Teflon screen belt , customers' designs are welcome
4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
5.Adjustable belt speed and tunnel temperature controls.
Parameters:
1. | Conveyor length :1500 |
2 | Conveyor width:600mm |
3 | machine size: (L)1580x(W)1180x(H)1300mm |
4 | working power: AC 380V 50HZ |
5 | Temperature adjustment: 0-200 Centigrade |
6 | constant temperature will be 5º C more or less |
7 | temperature resolution: 1º C |
8 | Belt speed adustment: 0-10M/MIN |
9 | Gross weight: 180 KG |
Warranty | For all our machines, we provide one-year warranty. |
Description:
IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.
Features:
1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.
2. adopt hot circulating system,save energy effectivly.
3. Teflon screen belt , customers' designs are welcome
4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
5.Adjustable belt speed and tunnel temperature controls.
Parameters:
1. | Conveyor length :1500 |
2 | Conveyor width:600mm |
3 | machine size: (L)1580x(W)1180x(H)1300mm |
4 | working power: AC 380V 50HZ |
5 | Temperature adjustment: 0-200 Centigrade |
6 | constant temperature will be 5º C more or less |
7 | temperature resolution: 1º C |
8 | Belt speed adustment: 0-10M/MIN |
9 | Gross weight: 180 KG |
Warranty | For all our machines, we provide one-year warranty. |
PLYWOOD CASE
IR hot Drying Tunnel conveyor dryer oven SD1200 oven for acrylic
Contact Us
- Luen Cheong Printing Equipment Ltd.
- Contact nameMichael AO
- Phone86-769-85375030
- AddressRoom 608-10, No. 1, Hengzeng Road, Xin'an Community, Chang'an Town
-
