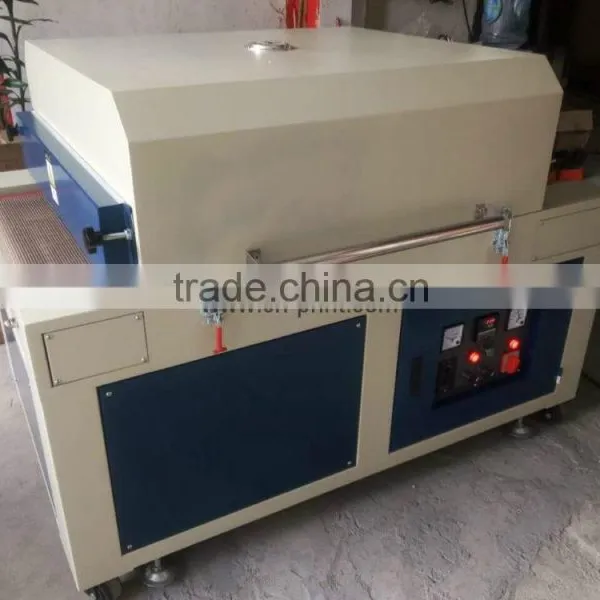

IR hot Drying Tunnel SD1200 IR dryer oven for solvent inks
IR hot Drying Tunnel SD1200 IR dryer oven for solvent inks
Description:
IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.
Features:
1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.
2. adopt hot circulating system,save energy effectivly.
3. Teflon screen belt , customers' designs are welcome
4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
5.Adjustable belt speed and tunnel temperature controls.
Parameters:
1. |
Conveyor length :1500 |
2 |
Conveyor width:600mm |
3 |
machine size: (L)1580x(W)1180x(H)1300mm |
4 |
working power: AC 380V 50HZ |
5 |
Temperature adjustment: 0-200 Centigrade |
6 |
constant temperature will be 5º C more or less |
7 |
temperature resolution: 1º C |
8 |
Belt speed adustment: 0-10M/MIN |
9 |
Gross weight: 180 KG |
Warranty |
For all our machines, we provide one-year warranty. |
Description:
IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.
Features:
1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.
2. adopt hot circulating system,save energy effectivly.
3. Teflon screen belt , customers' designs are welcome
4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
5.Adjustable belt speed and tunnel temperature controls.
Parameters:
1. |
Conveyor length :1500 |
2 |
Conveyor width:600mm |
3 |
machine size: (L)1580x(W)1180x(H)1300mm |
4 |
working power: AC 380V 50HZ |
5 |
Temperature adjustment: 0-200 Centigrade |
6 |
constant temperature will be 5º C more or less |
7 |
temperature resolution: 1º C |
8 |
Belt speed adustment: 0-10M/MIN |
9 |
Gross weight: 180 KG |
Warranty |
For all our machines, we provide one-year warranty. |
PLYWOOD CASE
IR hot Drying Tunnel SD1200 IR dryer oven for solvent inks
