Plane/Cylinder Heat Transfer Machine/ribbon Transfer Machine TC-200R

Plane/Cylinder Heat Transfer Machine/ribbon Transfer Machine TC-200R thumbnail-1
Plane/Cylinder Heat Transfer Machine/ribbon Transfer Machine TC-200R photo-1
US$ 4,900 - 5,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, hot stamping machine
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Luen Cheong Printing Equipment Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, hot stamping machine
Place of Origin Guangdong, China
Brand Name LC
Model Number TC-200R
Usage Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Other, Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Heat Transfer Machine for Bottles
Automatic Grade Semi-Automatic
Voltage AC220V
Gross Power 500W
Dimensions(L*W*H) 1260*600*1850MM
Weight 420kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Product Description

Product name

Heat Transfer Machine

Model No

TC-200R

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

Machine stability. 8mm thickness of the cast iron body and a shape. Durability, service life of up to 30 years

Advantage

1, the toggle mechanism design, strong pressure, air pressure consumption;
2, stamping pressure, temperature, transfer time is adjustable;
3, the table can be moved manually before and after, to facilitate the safe and quick operation;
4, the table can be around the rotation adjustment
5, automatic document feeder, the collection of paper, and can adjust;
6, stamping head lift height adjustable;
7 shuttle table driven the the workpiece smooth rotation Stamping stamping quality is stable.
8 for stamping curved or round face, remove the shuttle table is the plane tipping machine.

Parameter

The Max.Stamping pressure ≤ 1000kgs
Max stamping diameter / full circle printing Φ140mm/Φ60mm
Stamping head height adjustable stroke: 53mm
Thermal transfer Cots area: outside diameter: 100 × length of 150mm. Red 45 degrees -85 degrees customers freedom of choice.

Application area

learth , toys , plastic parts, glass bottles

Free fittings

1 Set/Sets

Shipping way

By sea, by air, by express

Delivery time

Within 5 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation

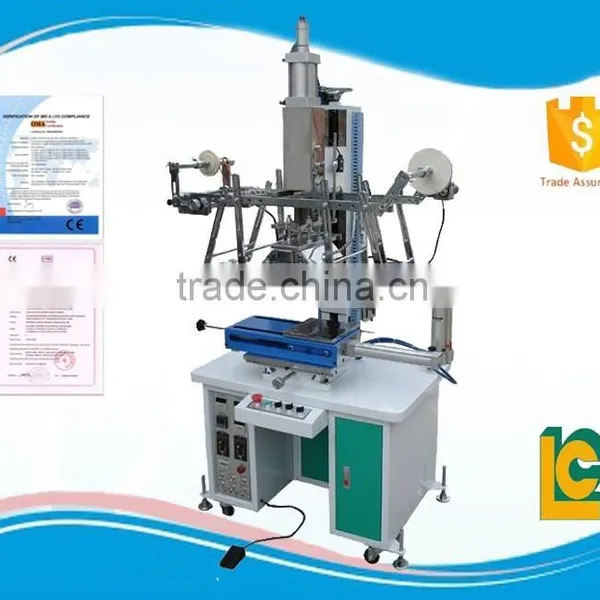

Machine pic

Plane/Cylinder Heat Transfer Machine/ribbon transfer machine TC-200R

Sample pic

Plane/Cylinder Heat Transfer Machine/ribbon transfer machine TC-200R

Plane/Cylinder Heat Transfer Machine/ribbon transfer machine TC-200R





Packaging & Shipping

  Plane/Cylinder Heat Transfer Machine/ribbon transfer machine TC-200R Plane/Cylinder Heat Transfer Machine/ribbon transfer machine TC-200R

Why choose us?







Company Information

1.we had been exported different 90 countries around the world 1500 customers satisfied use our printing machine

 Plane/Cylinder Heat Transfer Machine/ribbon transfer machine TC-200R

2. We have 21 years manufacturing experience, with professional engineer group and production plant, the stock is 50sets at least each month

 Plane/Cylinder Heat Transfer Machine/ribbon transfer machine TC-200R




Our Services

3.We have a professional training after sales service department who is free to resolve your problem on installation and adjustment of the machine.

 Plane/Cylinder Heat Transfer Machine/ribbon transfer machine TC-200R





FAQ



4.We are located in China industrial zone center ---Dong-guan It's only two hour's car ride far from Guangzhou airport. If you are interested in our products, Welcome  Agented !

Plane/Cylinder Heat Transfer Machine/ribbon transfer machine TC-200R
