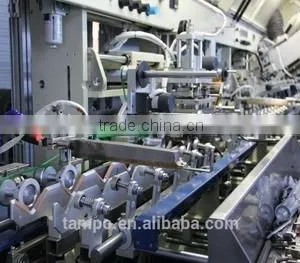

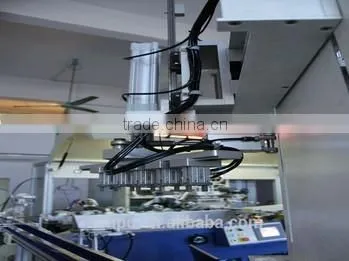

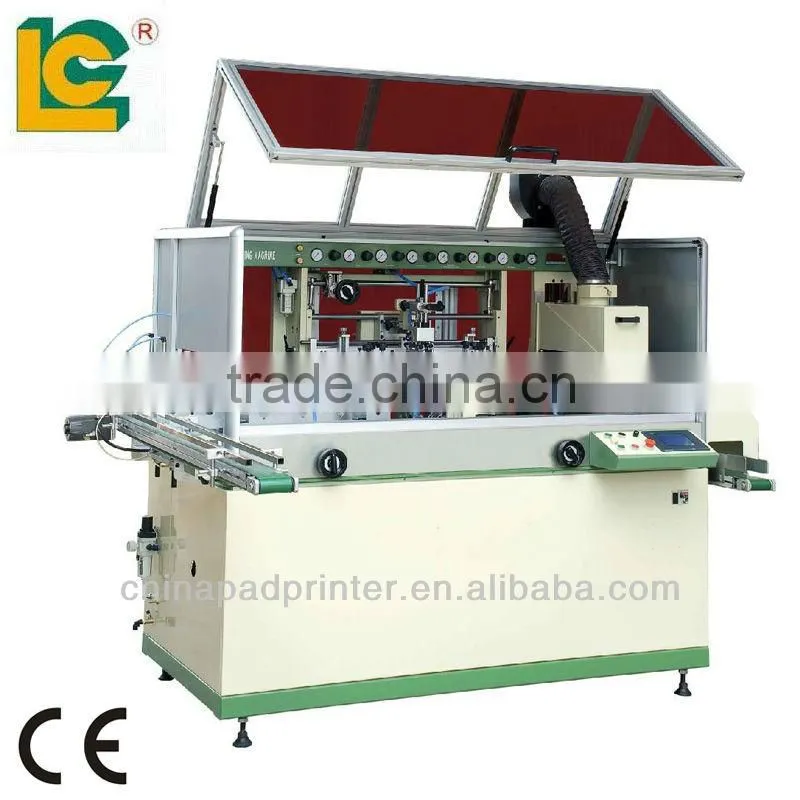

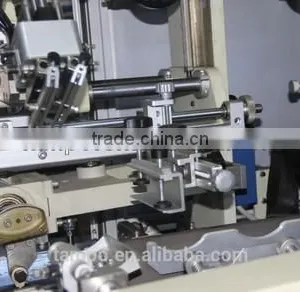

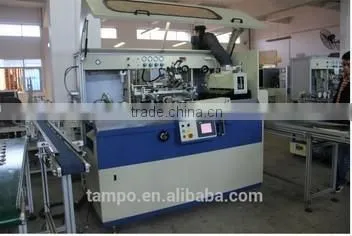

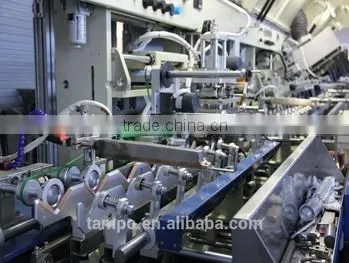

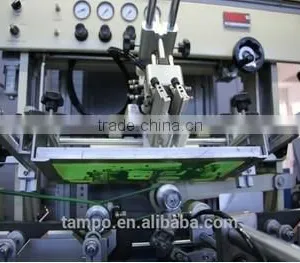

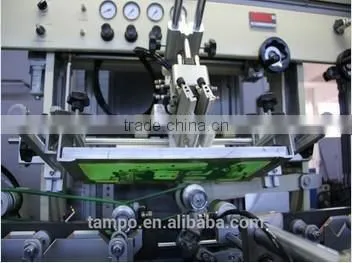

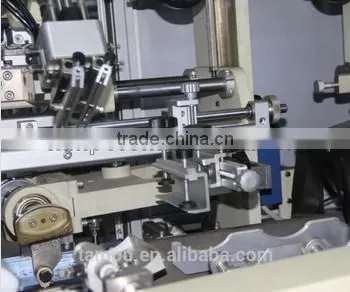

Single color Automatic UV screen printing machine for bottles LCB-120AL-1
- 30 Set / Sets per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- TMEP-LED18230T plate making equipment prepress proofing machine
- TMEP-LED18230T plate making equipment prepress proofing machine
- D 510 mm large oil drum Servo drive screen printing machine
- 1X10m Dust-Free Far Infrared Tunnel Dryer
- German Stainless steel sieve High tensile re-mesh stretch table
- TM - F4 Plastic flame treatment machine
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | LC |
Model Number: | LC-120AL-1 | Usage: | Tube Printer | Automatic Grade: | Automatic |
Voltage: | 380V | Gross Power: | 1000W | Dimensions(L*W*H): | L:1900 *W:1000*H:1500mm |
Weight: | 1050kg | Certification: | CE Certification | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
LC-120AL-1 it is a full mechanical conveyer, With the touching control panel operation, easy to operate the machine. Fast adjustment, easy operation. Fast printing, speed: 4000pcs/hr
The following is the machine main parts
1. MAIN MOTOR: SITI(Italy)
2. PLC: Omron(Japan)
3. SENSOR: Optex(Japan)
4. TOUCH SCREEN: Proface(Japan)
5. Switch: Schneider(France)
6. (CONTACTOR):(Schneider)(France)
7.(RELAY): (Idec)(Japan)
8. (INVERTER): Omron(Japan)
9. (UV CURING)(Primarc)Britain
10. (Cylinder):Festo(Germany)
Product Information:
1.The machine is specialized design for printing the round or oval bottles, with easy operation and stable.
2. Feeding machine can load product to the screen printing machine automatically..fully automatic feeding, flame treatment, UV screen printing and UV curing.
3. It is a mechanical conveyer ,With touching control panel operation , easy to operate the machine. Fast adjustment, easy operation. Fast printing,speed:4000pc/hr.
4. Fully automatic,It will alarm when the machine without product loading and no printing without product. it can save energy.
5. All components and control system are from Germany and Japan, guarantee the quality of the print.
6. It is suitable for print round/oval product printing such as the cosmetic bottles, drink bottles, cans ect
Specification:
Subject surface | Oval | Round |
Max speed | 4000pcs/hr | 3600pcs/hr |
Max print length | 120mm | 300mm |
Max print wide | 250mm | 250mm |
The size of print | semimeter:Φ25-Φ260mm | diameter:Φ25-100mm |
Length :60-300mm | Length :60-300mm | |
The power of UV lamp | 4Kw/unit | |
UVair draft power | 0.2KW | |
reduction gearbox Conveyer proportion | 1:7.5 | |
Single motor power | 0.75KW | |
The power ofbottle liftervacuum motor | 0.5KW | |
Vacuum supply | 500 mmAq | |
Flame treatment fuel | LPG | |
air supply | 6Bar | |
Air consumption | 730Liter/Min | |
Power supply | AC380V 3Phase 50Hz |
LC-120AL-1 it is a full mechanical conveyer, With the touching control panel operation, easy to operate the machine. Fast adjustment, easy operation. Fast printing, speed: 4000pcs/hr
The following is the machine main parts
1. MAIN MOTOR: SITI(Italy)
2. PLC: Omron(Japan)
3. SENSOR: Optex(Japan)
4. TOUCH SCREEN: Proface(Japan)
5. Switch: Schneider(France)
6. (CONTACTOR):(Schneider)(France)
7.(RELAY): (Idec)(Japan)
8. (INVERTER): Omron(Japan)
9. (UV CURING)(Primarc)Britain
10. (Cylinder):Festo(Germany)
Product Information:
1.The machine is specialized design for printing the round or oval bottles, with easy operation and stable.
2. Feeding machine can load product to the screen printing machine automatically..fully automatic feeding, flame treatment, UV screen printing and UV curing.
3. It is a mechanical conveyer ,With touching control panel operation , easy to operate the machine. Fast adjustment, easy operation. Fast printing,speed:4000pc/hr.
4. Fully automatic,It will alarm when the machine without product loading and no printing without product. it can save energy.
5. All components and control system are from Germany and Japan, guarantee the quality of the print.
6. It is suitable for print round/oval product printing such as the cosmetic bottles, drink bottles, cans ect
Specification:
Subject surface | Oval | Round |
Max speed | 4000pcs/hr | 3600pcs/hr |
Max print length | 120mm | 300mm |
Max print wide | 250mm | 250mm |
The size of print | semimeter:Φ25-Φ260mm | diameter:Φ25-100mm |
Length :60-300mm | Length :60-300mm | |
The power of UV lamp | 4Kw/unit | |
UVair draft power | 0.2KW | |
reduction gearbox Conveyer proportion | 1:7.5 | |
Single motor power | 0.75KW | |
The power ofbottle liftervacuum motor | 0.5KW | |
Vacuum supply | 500 mmAq | |
Flame treatment fuel | LPG | |
air supply | 6Bar | |
Air consumption | 730Liter/Min | |
Power supply | AC380V 3Phase 50Hz |
1 The guarantee time is 1 years, and maintain is lifelong. During this time, if any work piece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, but the carrier cost must be in buyer's side. And the machines have matched an urgent foot switch.
2 The supplier must sure the machine all work well before package.
3 we will provide the working video after delivery the machines.
4 Welcome your engineers to come to our factory for training.
1. One of three famous brand in China.our key products include pad printer, screen printer, hot stamping machine and UV curing machine.
2. We specialize in the field for 25 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.
3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.
