Home > Packaging & Printing > Printing Machinery > Screen Printer > Automatic Penholder Screen Printing Machines

Automatic Penholder Screen Printing Machines

US$ 9,454 - 11,062 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

Contact Supplier Request Quote Chat Now

Luen Cheong Printing Equipment Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Yantian ShenZhen China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Guangdong, China

Brand Name LC

Model Number LC-YG

Usage Label Printer, Tube Printer

Automatic Grade Automatic

Voltage 220V

Gross Power 50W

Dimensions(L*W*H) 3100*1540*1200 mm

Weight 530KG

Certification CE

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

automatic control,
smooth running smoothly
CE certificates
ISO9001

Product Description

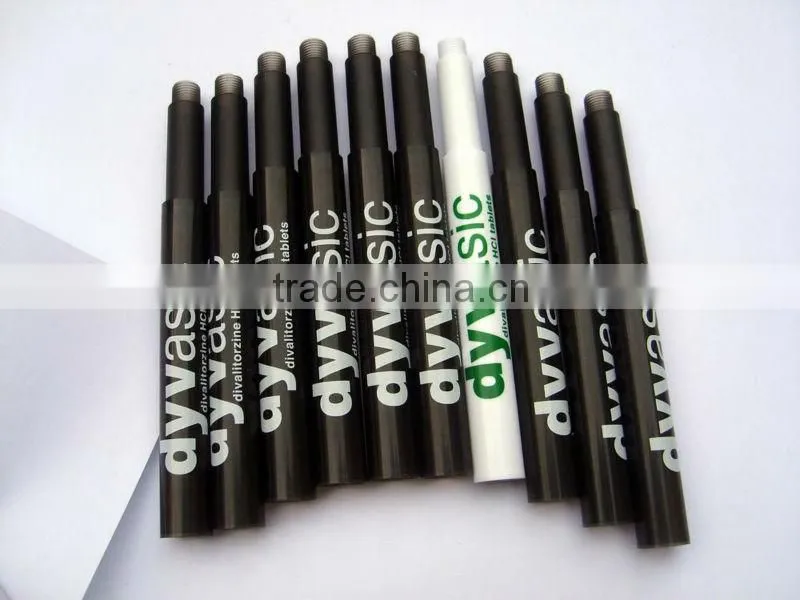

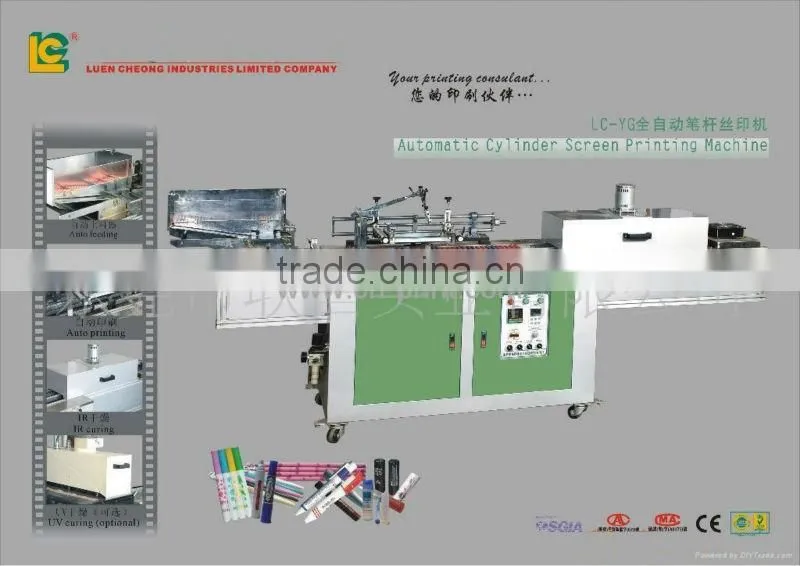

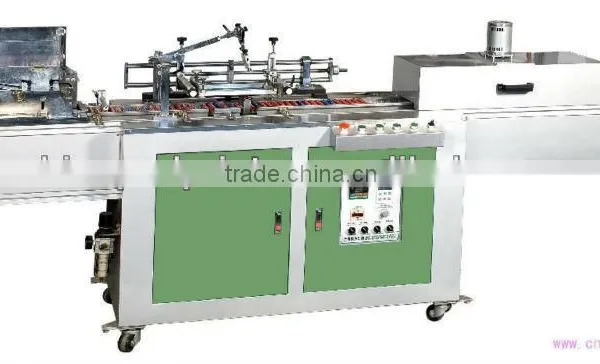

Automatic Penholder Screen Printing machines Model is LC-YG. It able to have good printing quality, high speed printing system, easy to adjust, It it use for the printing of round type plastic or metal pens, small round tubes, medical syringes, chopstick, cosmetics lipstick tube, and so on.

The full auto printing system combine with the Automatic feeding & unloading system, Screen printing, UV or IR curing, with the non-class speed adjust,it is widely used in the pen printing factory and cosmetics manufacture.
you can print different diameter ball-point pen holders, pencil rod, and cosmetics such as lipstick tubes; the set of automatic feeding machine, printing, drying (with UV and heat dry two options ), automatic blanking and other automatic systems; can be variable speed; fill the gaps in the domestic industry, domestic stationery, cosmetics manufacturers the ideal choice.

Features:
1, automatic control, smooth running smoothly;
2, which could be printed cylindrical workpiece;
3, Block printing with vacuum suction function (optional), the workpiece positioning more accurate and reliable;
4, high-speed printing, print speeds of up to 4,000 / hour;
5, dust, flame processing unit (optional) or PP water treatment device (optional) pre-press processing system;
6, using IR infrared or UV ultraviolet (optional) drying system, printing, drying synchronization is complete;
7, can be widely used in ball-point pen, hydrolysis of pens, pencils, markers, lipstick body, medical tubes and other objects of a single high-speed printing;
8, can product according to customer special requirements, design custom equipment.

Function:
1. Automatic feeding and unloading system, can be printing the object one or double at the same time.
2. Running smoothly with less noisy, can be adjust the printing distance & speed as you wish.
3. Control by Inverters for steady moving, ensure for good affect printing.
4. Adopt IR or UV drying system, it can finish the printing and drying at the same time,

1. Model No:LC-YG

2. Printingcolors:1 color

3. Product appearance:round

4. Operation:Full Auto

5. Printing Diameter:4--18mm

6. Printing speed:4000Pcs/Hr

7. Power:220V/50Hz 4.1kw

8. Weight:530(kg)

9. Dimensions:3100×1540×1200(mm)

Price Terms --FOB or CFR
Payment Terms --T/T or LC
Packing --Wooden case
Lead Time ---15days after confirm PO
SKU ---8sets
Standards Certificate--- CE
Cubic Meter--- 2.8
Gross Weight ---530kg
Main Parts FESTO CYLINDER (MADE BY GRMAN

Packaging & Shipping

the machine is packed in wood case,shipped by sea or air

Our Services

In order to protect the rights and interests of each user, each printing machine has to undergo a rigorous inspection and testing in factory before sold out as to deliver the most comprehensive after-sales service. Our company's goal: First-class quality, first-class technology, provide customers with first-class products and services.
