LC-VR12UV

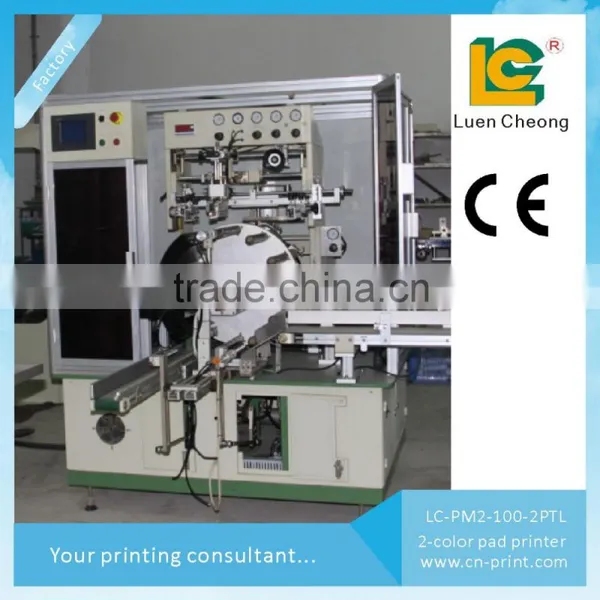

Automatic UV Cylindrical Screen Printer for soft tubes
- Specially design for circular shaped applications such as ubes,caps,and injection molds bottles.
- Servo optical fiber indexing system.It is possible to do multi-colors printing and overpint for some applications.
- The machine intergrates automatic feeding device,flame treatment and UV curing system and so on.
- It combines mechanical driven with pneumatic driven, and LED display .The maximun printing capacity of the machine is 4000pcs/hr.
- This system is equipped with various warning devices such as low pressure and overloading.The sensor can detect “no product ,no printing’
- The electrial components and control system adopt from Japan and Germany,ensure good printing quality.
- We provide machine design and construction services for special application.
Item |
Specification |
Max printing speed |
3600 pcs/hour |
Printing area |
236 mm x 170 mm |
Height for bottle |
20 mm < height < 200 mm |
Diameter for bottle |
10 mm < diameter < 75 mm |
UV Lamp Power |
2.4 KW |
Main machine size |
1500 mm x 1180 mm x 1900 mm |
Machine cover area |
2600 mm x 3600 mm x 2000 mm |
Machine weight |
1000 kg |
Air supply |
5 to 7 bar |
Air Consumption |
100 liter/min |
Power supply |
380 V ,3 phase ,50Hz |
Power consumption |
4.5 kw |
Mainly Motor:SITI (Italy)
Feeding Motor :Panasonic(Japan)
PLC: Omron(Japan)
Rotary Encoder: Omron(Japan)
Sensor: Optex(Japan)
Touch Screen: Proface( Japan)
Switch: Schneider( France)
Contactor: Schneider (France)
Relay: Idec (Japan)
Inverter: Omron(Japan)
UV Curing System: Primarc( England)
Pneumatic part: Testo (Germany)

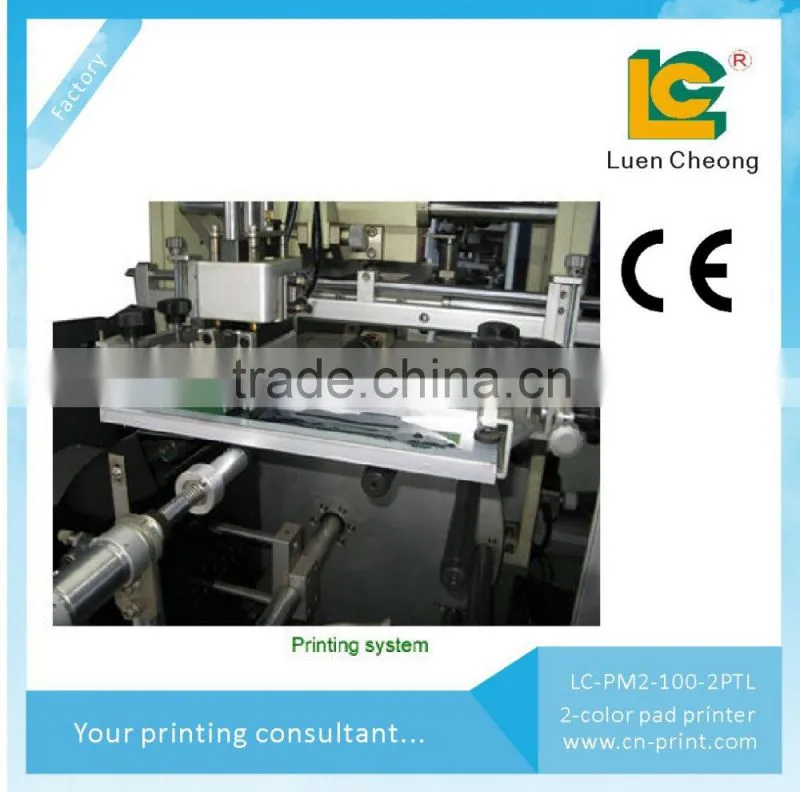

Specially designed for the circular-shaped applications such as soft tubes, bottle caps and cream bottles. It also supports the operation of polychrome printing and accurate color register.
The main transfer system adopts famous Occident transmission equipment. With the help of accurate interval slicer in high speed, the system is able to realize the accurate transmission of division, which makes this machine perform stably at a printing speed of 4000 times/hour.

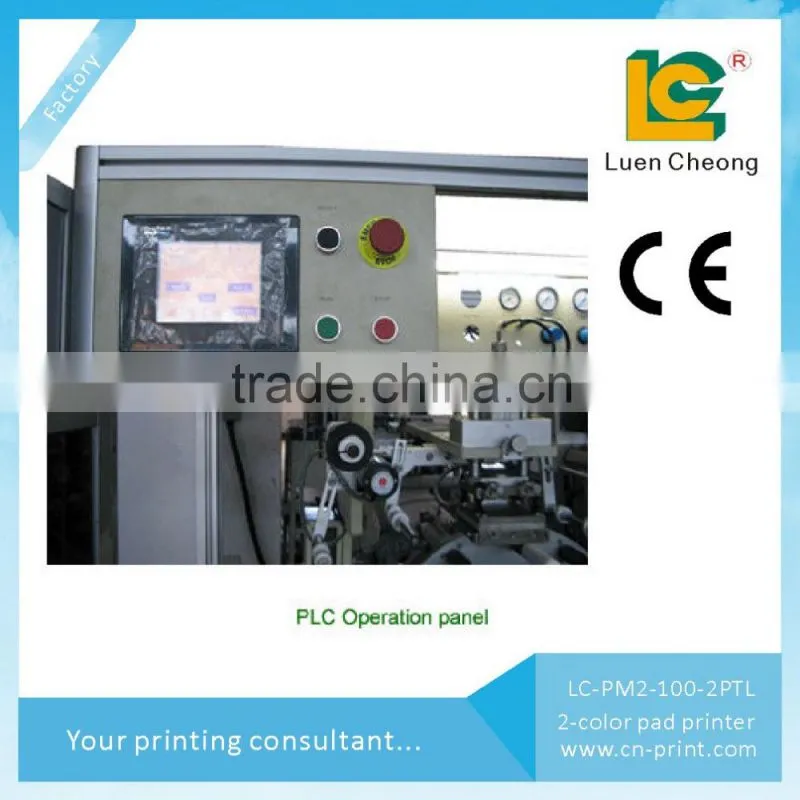

The PLC control System enjoys a high reputation. Equipped with simple, convenient and fast touch screen system, man-machine conversation is possible, which makes the operation more handy.

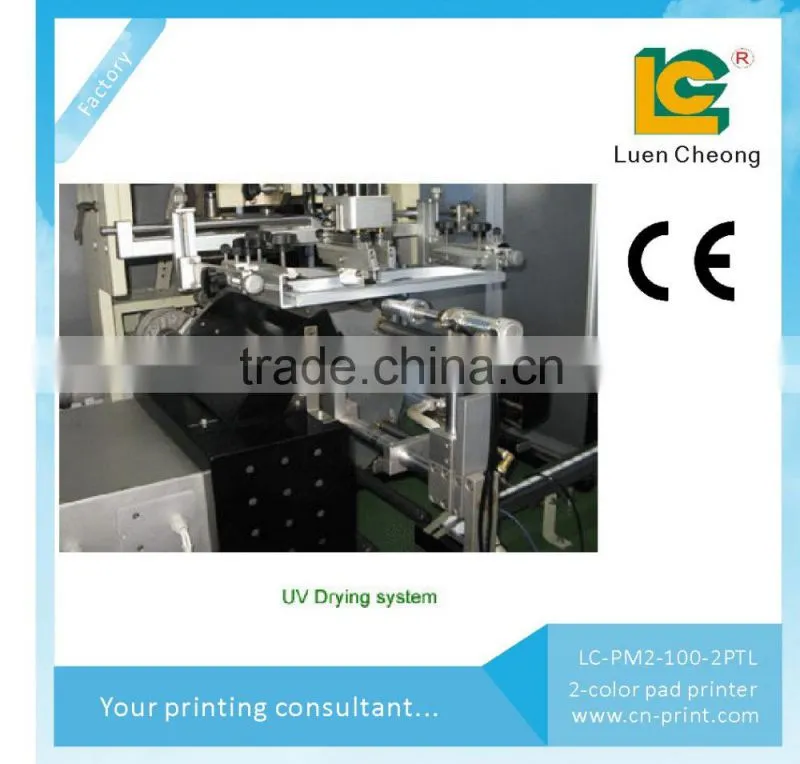

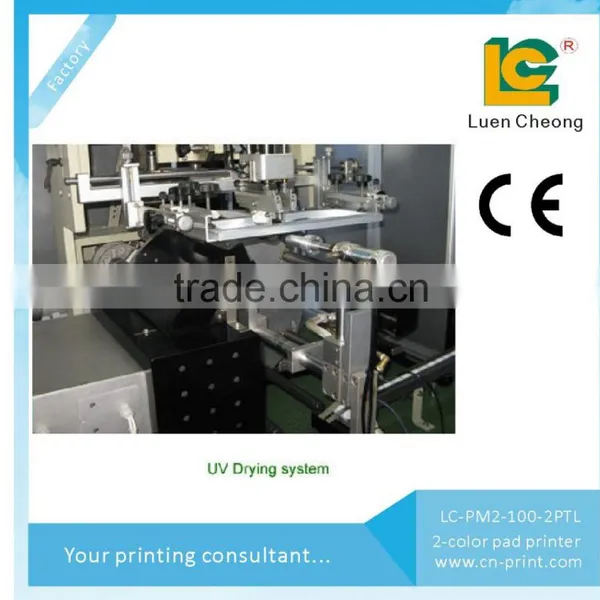

As for the solidification of the printing ink, we use the ultraviolet for realization. The ultraviolet will facilitate the printing effects when the stable performance and electricity-efficiency are guaranteed.
The full-auto loading and unloading manipulator device system promises continual and stable printing work as well as the safety of operating personnel.
1, Designed for the screen printing of the special circular substrates designed mainly applies to hoses, caps, cream bottles, test tubes and other round products.
2, The integration of the whole synchronization on the material, the width of the feed device can be flexibly adjusted, easy to adjust depending on the size of the hose; speed stepless adjustment, so that the transport speed and printing speed like a match;
3. Online flame treatment device, the surface tension of PE PE materials to increase the adhesion of the ink;
4. Patented hose disc transmission system, run smooth, high accuracy;
5. Automatic screen printing equipment, the fixture can dress according to the size of the hose; printing locale electronic sensors, and no pieces of printing function;
6. England high-performance UV drying device, ink instantaneous drying; pull lamp replacement unit, the lamp is easy to replace;
7. The whole machine of mechanical drive, touch screen operation, easily man-machine dialogue, make operation even easier;
8. The eight main parts with CNC machining, high-quality machining accuracy to ensure the stability of high-speed operation, the printing speed of up to 4000pcs/hr.
9. With the automatic monitoring of air pressure too low alarm function.
10. Electrical components and control systems using components of Germany and Japan to ensure stable printing quality.
Bottles, cosmetics tube.
As the picture bellow, we pack goods with high standard ways to ensure the goods not damaged on the way of transportation.
Delivery:
30-40days after order confirmed.
Shipping Cooperators:
You can choose any shipping way as follow:
