Home > Products > Aluminum Honeycomb Panel > Customed Aluminium Honeycomb board

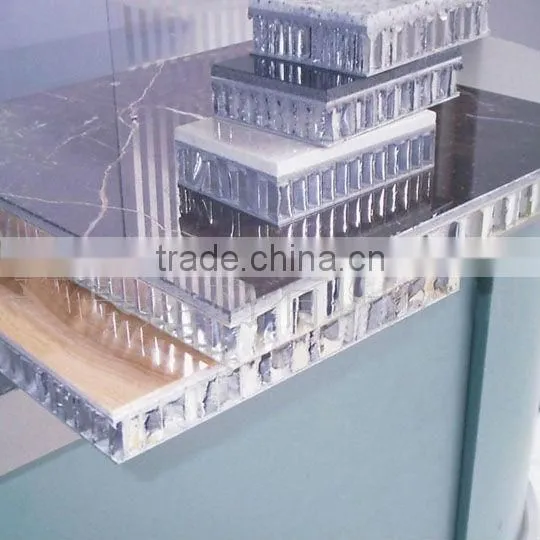

Customed Aluminium Honeycomb board
- 100000 Square Meter / Square Meters per Month
- guangzhou shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | beiliming | Model Number: | AHP1001 |
Panel Material: | Metal |
Product Description
Specifications
Aluminium Honeycomb board AHP1001high quality
Struction

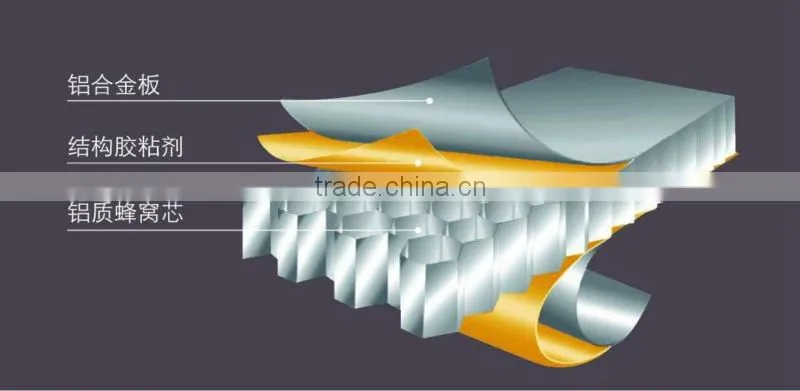

Aluminum Honeycomb board use 3003 Aluminum Alloy with high strength to be surface board;the high density Aluminum Honeycomb to be pith materials.The routine thickness of surface board is 0.8mm,1.0mm,The thickness of the whole board is 10mm,15mm,25mm.Other specification,struction & size can be made accordingly to meet the variety needs of using.
Surface Painting
The surface painting of al-honeycomb planking is conform to the standard quality of AAMA & ECCAF-C bakingpaint. The color choosing is the same as complex aluminum plastic planking.We will offer standard color in large arrange for your reference.That including simple color and metal color or anycolor appointed by the clients.That enable it to have the peculiarities such as climate-bearable,ultraviolet-bearable,wet-bearable and polluting-bearable etc.Additionally,titanium zinc plate and bronze plate can also be used as the honeycomb plate surface materials.
Lighe specific gravity,high rigidity,steady structure and High wind-resistance performance.
Curtain wall aluminum honeycomb panels have been extensivly applied to extemal wall decoration of high-rides.Honeycomb sand wich panels of the same rigidity have a weight that is only 1/5 of aluminum panels and 1/10 iron panels,whose total thickness being 15mm,pandls 1.0mm thick and bottom panel 0.8mm thick have a weight of only 6 kilos per square meter.The interconnected honeycomb cores are like numerous I bars with interface layers distributed within the whole panel,thus resisting shearing and bending and large pressure.Lts wind-resistance performance has greatly exceeded that of aluminum-plastic panels and aluminum single aluminum panels,so that even large-sized honeycomb panels can reach extremely high straightness.aluminum honeycomb panels can reach the highest intebsity and bending resistance with the lightest weight,which is an incomparable compared to other materials,thus making it currently the preferred light weight material in the building industry.
Fine decoration effect,easy and rapid installation
The bottom panels of honeycomb panels can adopt different materials according ta different requirements,such as aluminum panels,corrosion resistant panels,colored steel panels and natural stones.The curtain wall aluminum honeycomb panels are processed in factories according to sizes designed in situ.the surroundings of the panels are bent and then formed by hubird forming.The honeycomb panels can be made jinto flat panels,panels of arc and panels of L type and U type through full factoy run with positivve quality and easy installation.
Flat and straight in vision and duverse in color,elegant and bright.
Aluminum honeycomb panels,all different sizes with a high flatness,and has the advantages of easy deformation,mainly panel of fluorocarbon coated aluminum roller.PVDF coating aluminum roll the most important thing is to use a continuous roll coating process,the aluminum coating is completed once the product stream without color coating roughness good,reliable,able to remain outside the building for a long time brightly colored walls.After a long sun and rain or industrial air plooution,it became clear roller coating spray cleaner than the light board,and has good adhesion and weather resistance.
Excellent performance in sound insulation,heat insulation,fireproofing and quakeproof
Since the honeycomb cores in aluminum honeycomb composite panels are divided into many enclosed cells,which stops air flows and blocks heat and waves with 20-30DB,noise reduction for sources from 100HZ to 3200HZ and a heat conduction coefficient of 0.1040.130W/M.k,aluminum honeycomb panels is an ideal energy-saving material with an energy absorption capability of 150-3500KJ/M.For example,when it is raining,rains dropping on the aluminum single aluminum panels or aluminum-formed panels will make a loud noise,but if replaced them with honeycomb panels,no such problem will occur.
