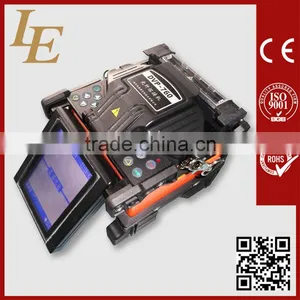

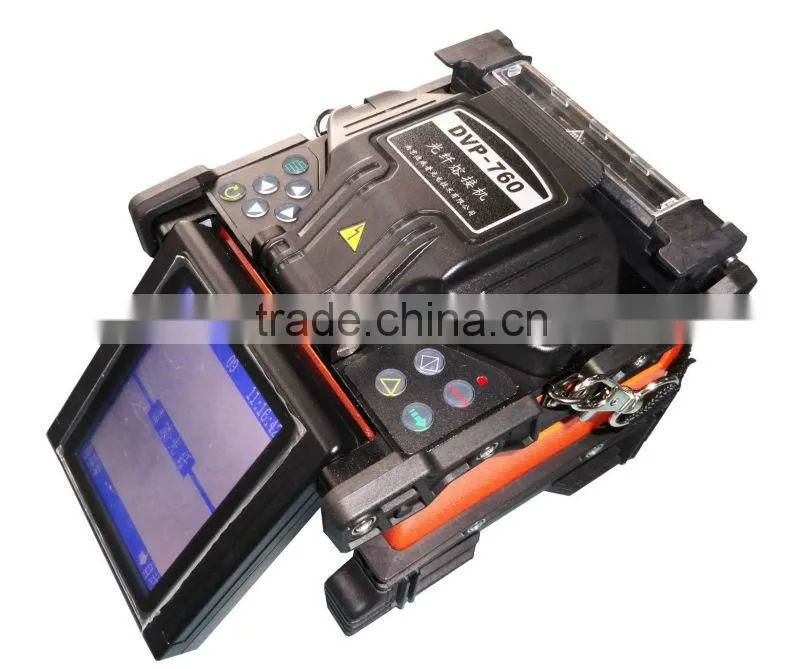

DVP-760 Single Fiber Fusion Splicer
Negotiable
MOQ: 3 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DVP
Model Number:
760
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
DVP
Model Number
760
Specifications
High definition LCD displayPAS technology
USB interface
Fiber Fusion Splicer
DVP-760 Single Fiber Fusion Splicer
Features:
*Compact & Light weight
*Fully Automatic Operation
*5000m altitude ensures Splice Quality
*SYSTEM TEST ensures the best working condition
*Color LCD monitor
*Pause function, convenient for scientific research
* Store 8000 groups of splice results
* USB & DC interface
*High battery capacity, up to 120 times of continuous splice and heat
SPECIFICATIONS:
| Applicable fibers: | SM, MM, DS, NZ-DS(G655), EDF |
| Fiber cleaved length: | 8-22mm |
| Average splice loss: | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Return loss: | ≥60dB |
| Tension test: | 2.0N(200gf)(Standard) |
| Protection sleeve length: | 20mm, 40mm, 60mm |
| Splice Program: | 15 groups of preset programs, 1 group of manual setting |
| Language: | English, Chinese, Korean, Russian, Spanish, Portuguese, German, French |
| Environment conditions | -25 to 50°C (operation temperature), 0 to 95%RH (humidity), 0 to 5000m(altitude) |
| Storage environment: | -40 to 80°C (temperature) , 0 to 95%RH (humidity) |
| Power supply: | AC adaptor: 85~260V input voltage |
| Internal battery: | 12V, 6Ah, up to 120 times of continuous splice and heat |
| Dimensions: | 142(D)×122(W)×138(H)mm |
| Weight: | 1.95kg |
picture:
Standard package
1. Main body,
2. Internal Battery,
3. Charger,
4. Spare Electrodes,
5. Cooling Tray,
6. Manual Instruction,
7. Carry Case, Fiber
8. Cleaver,
9. Fiber Stripper,
10. AC Adaptor,
11. AC Power Cord
