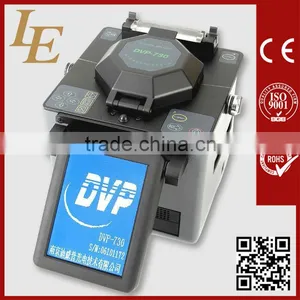

DVP-730 Single Fiber Fusion Splicer
Negotiable
MOQ: 3 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DVP
Model Number:
730
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
DVP
Model Number
730
Fiber Fusion Splicer
DVP-730 Single Fiber Fusion Splicer
Features:
Reversible monitor with control panel on each side
Color LCD monitor
Large capacity internal battery
SYSTEM TEST ensures the best working condition
User programmable
Auto check fiber end face
Auto calibrate parameters
Store 8000 groups of splice results
Multiple language options
Core Alignment
SPECIFICATIONS:
| Applicable fibers: | SM, MM, DS, NZ-DS(G655), EDF |
| Cladding diameter: | 100 to 150um |
| Coating diameter: | 100 to 1000um |
| Fiber cleaved length | 8-22mm |
| Splicing mode: | Auto & Manual |
| Average splice loss: | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Return loss: | ≥60dB |
| Tension test: | 2.0N(200gf)(Standard) |
| Protection sleeve length: | 20mm, 40mm, 60mm |
| Language: | English, Chinese, Korean, Russian, Spanish, Portuguese, German, French |
| Interface: | RS232 interface & video output |
| AC adaptor: | 85~260V input voltage |
| Environment conditions: | -25~+50 (operation °C temperature), 0~95%RH (humidity), 0~5000m (altitude) |
| Storage environment: | -40~+80°C (temperature) , 0~95%RH (humidity) |
| Power supply: | Internal battery: 12V, 10Ah, up to 200 times of continuous splices and heats DC adaptor:12V voltage,optional multipurpose external battery |
| Dimensions: | 170(D)×170(W)×140(H)mm |
| Weight: | 3.3kg |
picture:
Standard package
1. Main body,
2. Internal Battery,
3. Charger,
4. Spare Electrodes,
5. Cooling Tray,
6. Manual Instruction,
7. Carry Case, Fiber
8. Cleaver,
9. Fiber Stripper,
10. AC Adaptor,
11. AC Power Cord
