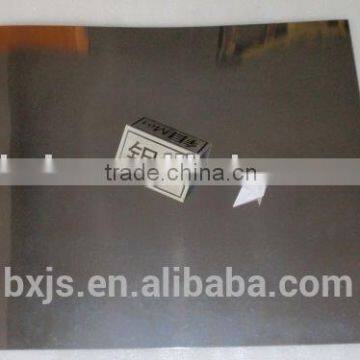

0.05mm thickness molybdenum foil 0.05mm thickness molybdenum foil
1. high temperature Molybdenum plates, sheets are hot/cold rolled by unique technology, the products gain more high temperature property by increasing the recrystal temperature of molybdenum by 500-700.having met the using temperature 1850 of heat shields materials for vacuum furnace.
2 .Application: electron, aviation, aerospace, electric light, electron- vacuum, heating bodies and heat shields, molybdenum boat and crucibles etc.
3. Molybdenum foil
1)Designation, condition and size of molybdenum plate:
Table1
Designation |
Method |
condition |
Size (mm) |
||
Thickness |
Width |
Length |
|||
|
Mo1 Mo3G TZM Mo 361 Mo 364 |
Powder metallurgy |
(Y) (m) |
0.01~0.09 |
50~200 |
≥200 |
2)Toleranceof thickness, width and length
Table2 unit:mm
Thickness |
Toleranceof thickness |
Width |
Toleranceof width |
Min length |
|
Class I |
Class II |
||||
0.05~0.06 |
±0.005 |
±0.007 |
50~150 |
±3.0 |
200 |
0.06~0.09 |
±0.006 |
±0.008 |
50~150 |
±3.0 |
200 |
3) Designation, condition and size of molybdenum plate:
Table3
Designation |
Method |
Condition |
size(mm) |
||
Thickness |
Width |
Length |
|||
|
Mo1 Mo3G TZM(Mo364) JMo1 Mo361 |
Powder metallurgy |
(Y) (m) |
0.1~1.0 |
50~600 |
100~2000 |
(R) |
1.0~30 |
50~600 |
100~1500 |
||
|
Mo1 Mo360 |
vacuum electric arc smelting |
(Y) (m) |
0.1~1.5 |
50~600 |
100~2000 |
(R) |
1.5~30 |
50~600 |
100~1500 |
||
Company
Boxin is the expert in applications and materials. We manufacture products made of tungsten, molybdenum, tantalum, niobium, titanium, nickel, zirconium, vanadium, cobalt, indium, hafnium, stannum, chromium and their related alloys. We produce these materials on our own equipment as pure metals, alloys or composite materials. We excel with the outstanding properties of our materials wherever traditional solutions meet their limits. They are able to fulfill requirements that other materials simply cannot meet. Through working closely with our customers we successfully master even the most complex challenges. Only those who truly understand the problem are capable of delivering successful, individual solutions.
Boxin is customer oriented. This statement applies to all of our products encompassing standardized flat products, round products and customized components. Our highly flexible production processes enable a wide range of product dimensions that we provide in a broad selection of mass products and customized solutions.
Boxin is the supplier you can count on. Our production, all the way from powder to finished part, at the china largest and most modern refractory metal facilities ensures capacity and volume, and also guarantees the high quality of our products.
other products:
Do you have any very special requirements? For us, that's not a problem: As a specialist in the field of refractory metals, we can adapt the tensile strength and surface properties of our sheets to meet your specific needs.
Just contact us!
