1.Product Introduction:
Steel Square Tube for Traffic Sign Support,Sign Post
Square Post | |
Steel plate |
ASTM A1011 or ASTM A653 Grade 50 Structural quality |
Tolerance |
yield strength: 90,000 PSI (340 MPa) |
tensile strength |
100,000 PSI (540 MPa) |
Galvanizing type |
Zinc primer, hot-dip galvanized, ASTM A653 G90 |
Sizes |
1 1/2", 1 3/4", 2", 2 1/4" and 2 1/2" square. |
Thickness |
12Gauge and 14Gauge |
| Holes | Holes of 7/16" diameter are 1" on center on all four sides |
U Channel Sign Post | |
tensile strength |
100,000 psi |
yield strength |
80,000 psi |
Dimensions |
Available in 7-, 8-, 10-, 12-, 14- and 16-foot lengths or as customer's request. |
Holes are 3/8'' diameter spaced 1''on center for easy sign mounting | |
Flanged channel sign posts manufactured in a variety of lengths in the weight of 2lb or 1.2lb per linear foot | |
Standard finish is hot-dip galvanized or available in a variety of powder coated colors | |
Aluminum Alloy Sign Post | |
Materials |
6061,6063,6082 and other aluminium alloy |
Standards |
in accordance with ASTM, AMS WW-T-700, BS EN, DIN and JIS |

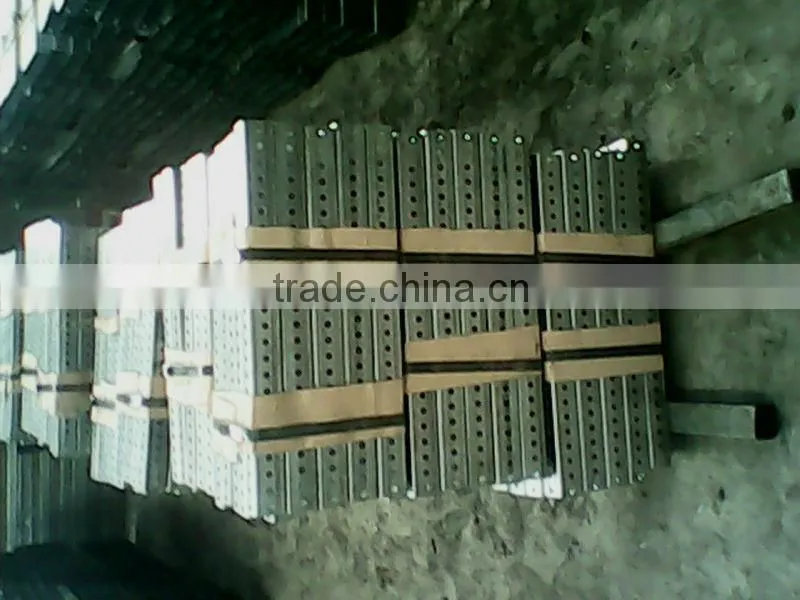

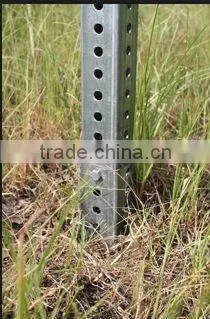

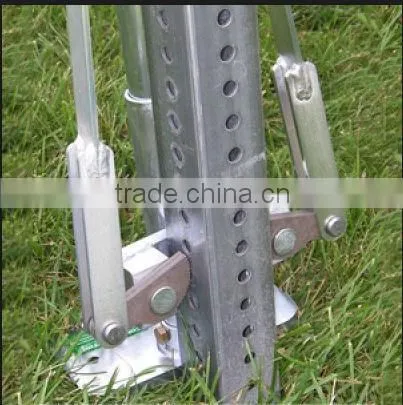

2.Product Pictures:
