1.Product Introduction:

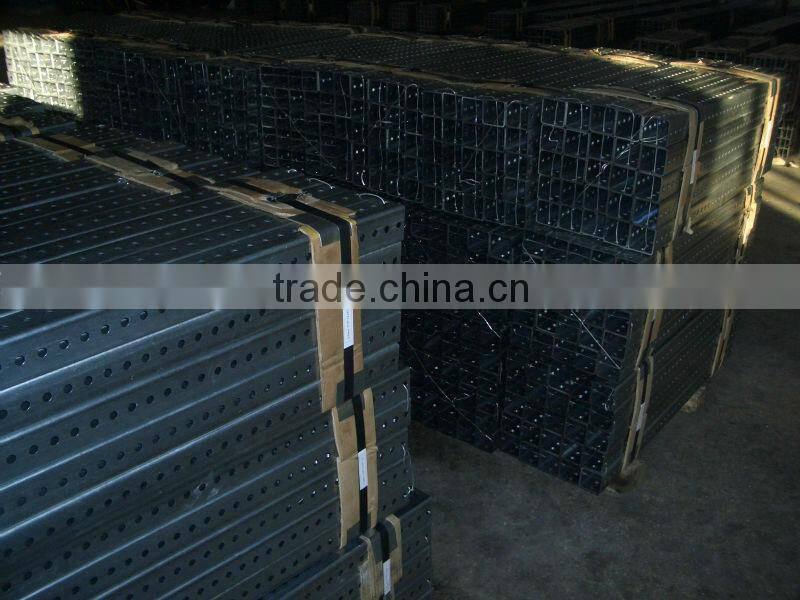

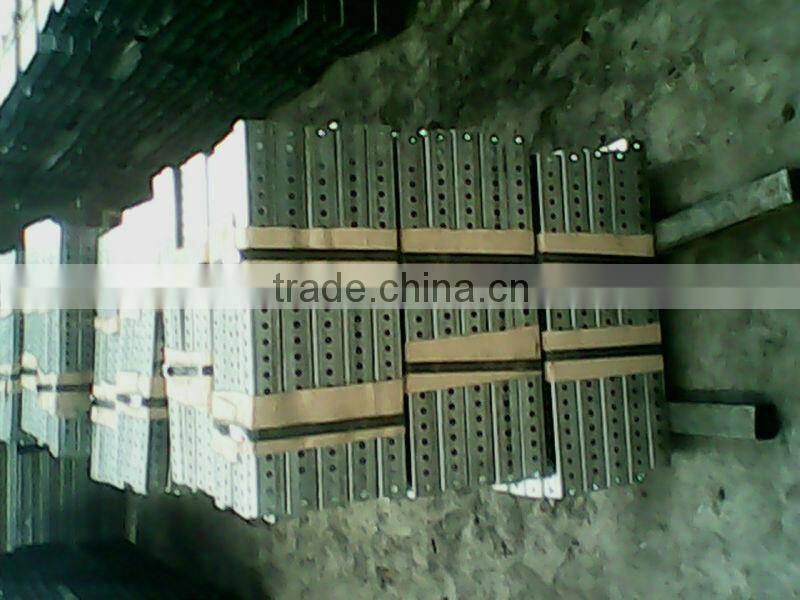

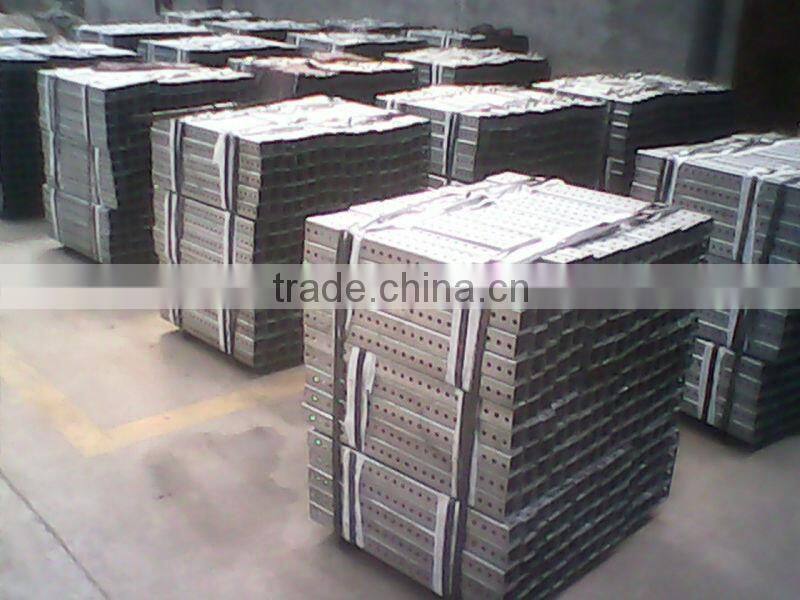

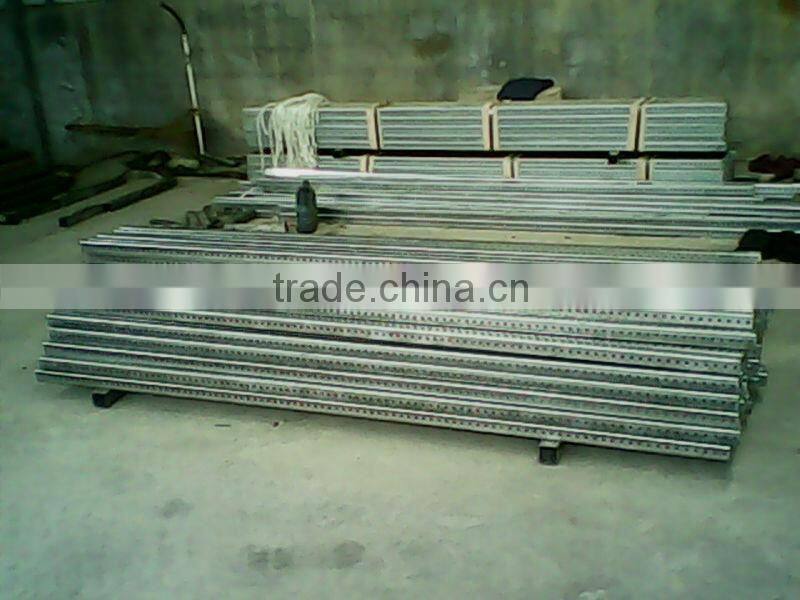

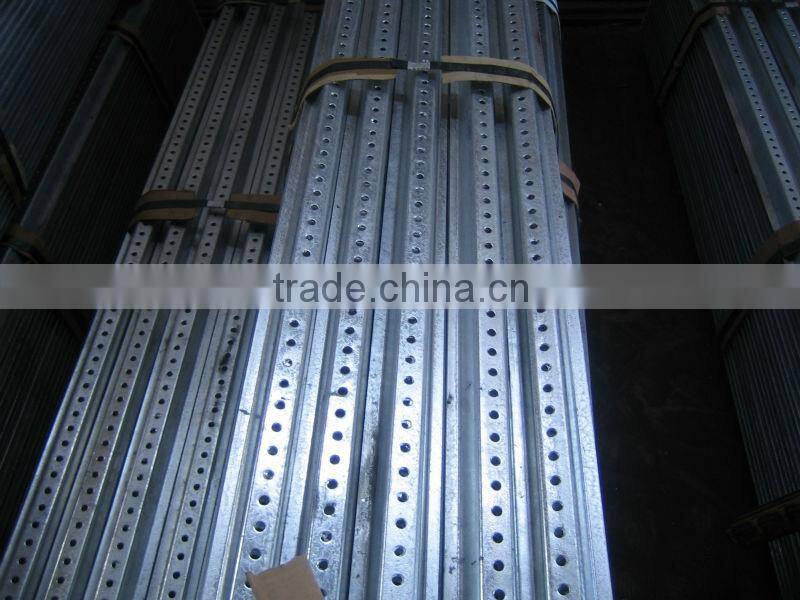

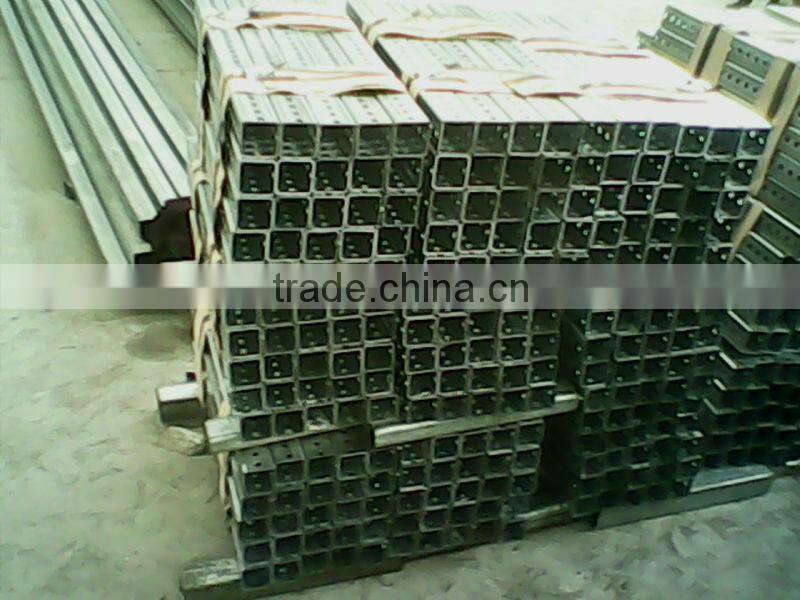

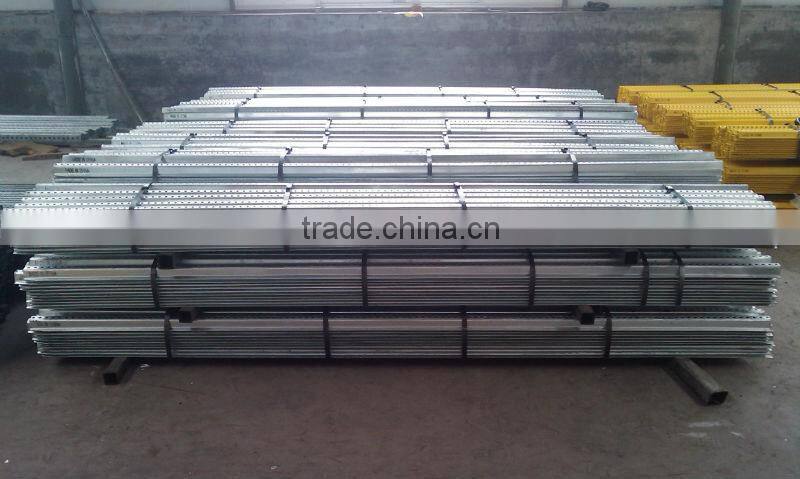

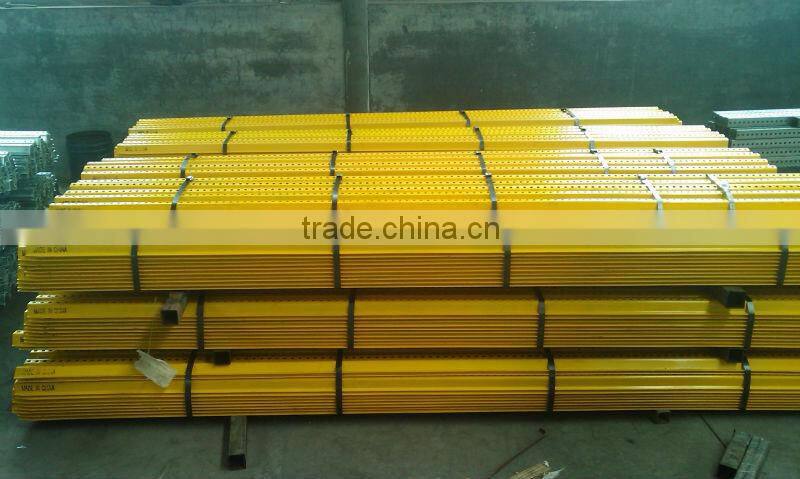

Steel Square Tube for Traffic Sign Support,Sign Post
Square Post | |
Steel plate |
ASTM A1011 or ASTM A653 Grade 50 Structural quality |
Tolerance |
Min yield strength: 50,000 PSI (340 MPa) |
Max tensile strength |
79,000 PSI (540 MPa) |
Galvanizing type |
Zinc primer, hot-dip galvanized, ASTM A653 G90 |
Sizes |
1 1/2", 1 3/4", 2", 2 1/4" and 2 1/2" square. |
Thickness |
12Gauge and 14 Gauge |
| Holes | Holes of 7/16" diameter are 1" on center on all four sides |
Anchor Base 2 inch Perforated Square Tube --Weight for Each Size
Tube Size |
Gauge |
Pounds Per Foot |
1.50″×1.50″ |
14 |
1.43Lbs/ft |
1.50″×1.50″ |
12 |
1.54Lbs/ft |
1.75”x1.75” |
14 |
1.54Lbs/ft |
1.75”x1.75” |
12 |
1.87Lbs/ft |
2.25″×2.25″ |
14 |
2.09Lbs/ft |
2.25″×2.25″ |
12 |
2.53Lbs/ft |
2.5″×2.5″ |
12 |
2.86Lbs/ft |
2.00″×2.00″ |
14 |
1.87Lbs/ft |
2.00″×2.00″ |
12 |
2.31Lbs/ft |

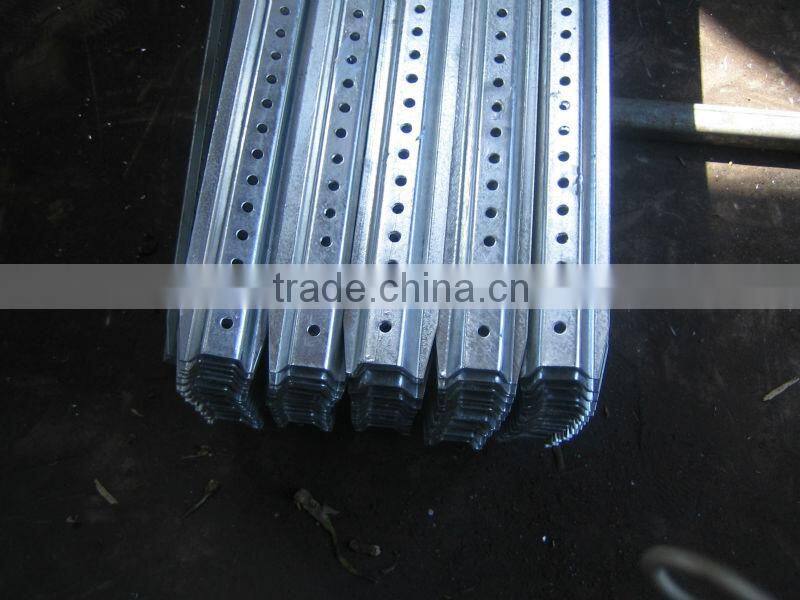

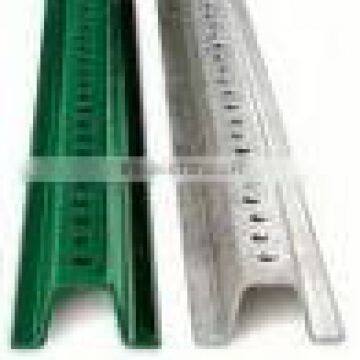

U Channel Sign Post | |
Min tensile strength |
80,000 psi |
min yield strength |
100,000 psi |
Dimensions |
Available in 7-, 8-, 10-, 12-, 14- and 16-foot lengths or as customer's request. |
Holes are 3/8'' diameter spaced 1''on center for easy sign mounting | |
Flanged channel sign posts manufactured in a variety of lengths in the weight of 2lb or 1.2lb per linear foot | |
Standard finish is hot-dip galvanized or available in a variety of powder coated colors | |
