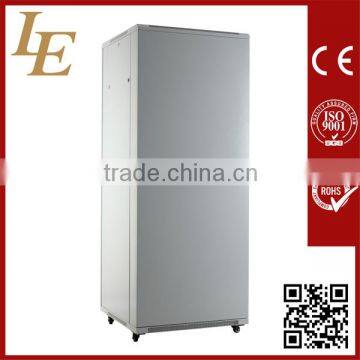

19 Inch Network Rack/cabinet High Quality

Name: 19 Inch Network Rack/cabinet High Quality
Brand: LE Network Cabinet
SKU: 113620717
Availability: InStock

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Cabinet Standard:

Comply with ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1, DIN41499 STANDAR

Material:

SPCC quality cold rolled steel

Size:

600*800mm*42U

Ningbo Latitude International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Cabinet Standard Comply with ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1, DIN41499 STANDAR

Material SPCC quality cold rolled steel

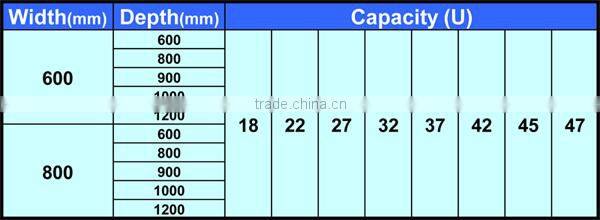

Size 600*800mm*42U

Place of Origin Zhejiang, China

Brand Name LE Network Cabinet

Feature

Exquisite design with precise craftsmanship;
Welded steel frame for front and back part, which can be flat packing, easy to transfer;
Tempered glass front door with over 180 turning degree; arc shaped vented front door border;
Steel rear door with square holes, little round lock, optional other lock;
Removable side panel wit latch, easy to install(optional lock);
Adjustable feet and castors are available simultaneously:
Cable entry on the top, adjustable cable entrance at the bottom with panel;
Advanced handle locks for front door, optional other lock;
S-shaped mounting profile, free to move forward and back;
Efficient baying kit of cabinet, earthing kit;
Optional plinth to fix cabinet on floor; under base cable entry;
Various optional Accessories for common using;
Unassembled packing, about 2/5 of original volume, save container space

Standard

Comply with ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1, DIN41491 STANDARD

Material

SPCC cold rolled steel

Thickness: mounting profile: 2.0mm,others: 1.2mm

Loading Capacity

Static loading:800kg(on the adjustable feet)

Degree of protection

IP20

Surface Finish

Degreasing, Pickling, Phosphating, Powder coated

Main Component

No.	Component Name	Quantity	Unit	Material Specification	Surface Finish	Note
1	Top Cover	1	pc	SPCC cold rolled steel T1.2	Powder Coated	--
2	Fan Unit	1	set	SPCC cold rolled steel T1.2	Powder Coated	--
3	Steel Frame	2	pc	SPCC cold rolled steel T1.2	Powder Coated	--
4	Tempered Front Door	1	pc	SPCC cold rolled steel T1.2	Powder Coated	Single open
5	Steel Rear Door with square holes	1	pc	SPCC cold rolled steel T1.2	Powder Coated	Single open
6	Bottom Panel	1	pc	SPCC cold rolled steel T1.2	Powder Coated
7	Mounting Angel	6	pc	SPCC cold rolled steel T1.2	Powder Coated	4pcs for below 32U
8	Mounting Profile	4	pc	SPCC cold rolled steel T2.0	Powder Coated	---
9	Side Panel	2	pc	SPCC cold rolled steel T1.2	Powder Coated	---
10	Handle lock for front door	1	pc	--	Galvanization	With 2 keys
11	Little round lock for rear door	1	pc	--	Galvanization	With 2 keys
12	2”Castor	4	pc	--	--	--
13	M10 adjustable feet	4	pc	--	--	--
14	M6-head screw and M6 square nut	20	pc	Steel	Color Zinc Coated	---
15	Allen Wrench	1	pc	Steel	Black	---
16	Spacer(only for 800mm width)	12	pc	SPCC cold rolled steel T1.2	Powder Coated	Only for 800mm
17	Vertical CABLE MANAGER	2	pc	SPCC cold rolled steel T0.8	Powder Coated	Only for 800mm
