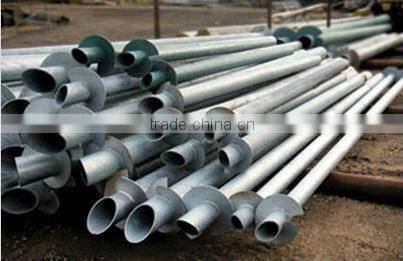

Help CenterGround Single Helix Screw Piers for Underpinning
Related Products
-
Round Helical Screw Post for FoundationUS$ 9.6 - 51.3MOQ: 100 Pieces -
Ground Helix AnchorsUS$ 8 - 50MOQ: 100 Pieces
-
Steel Screw-in FoundationsUS$ 12 - 36MOQ: 100 Pieces
-
Helical Screw Piles, Ground Screw Pole AnchorsUS$ 12.3 - 35MOQ: 100 Pieces
-
Deep Foundation Round Shaft Helical Screw PilesUS$ 10 - 25MOQ: 100 Pieces

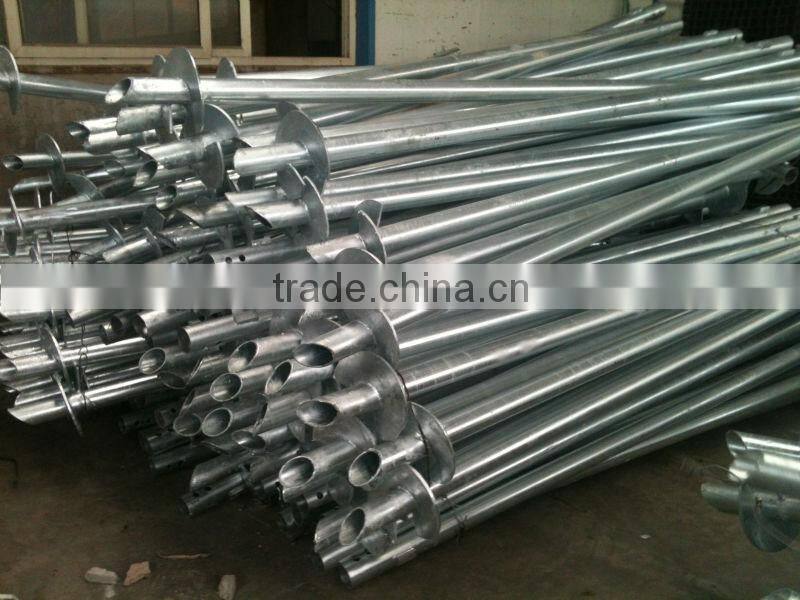

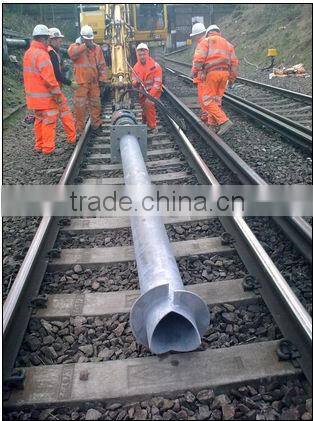

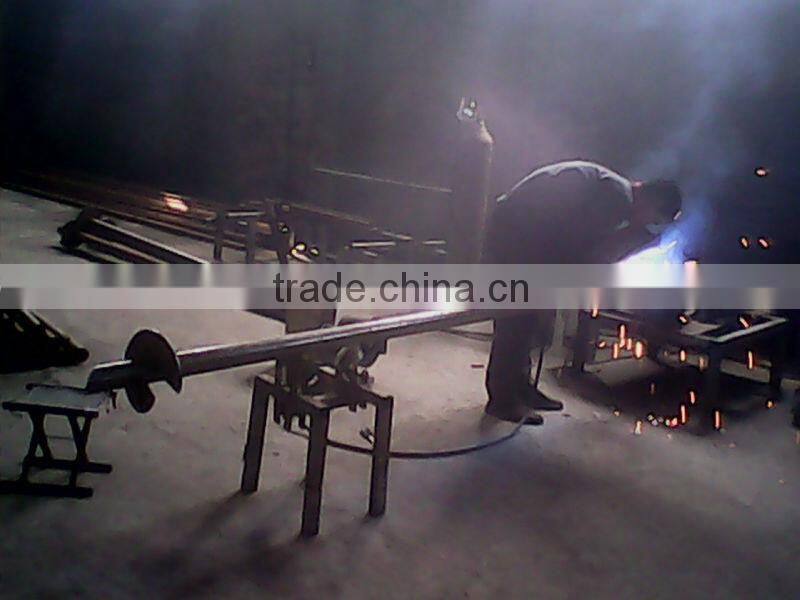

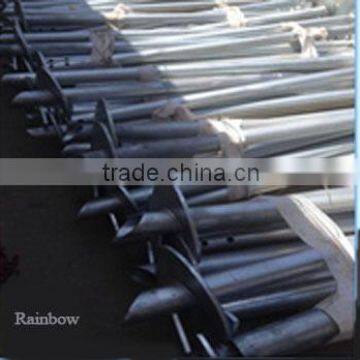

Round Shaft Helical Piers
Shaft material: Seamless high tensile pipe, conforms to ASTM A500 GRADE B
Helices material: ASTM A36 Hot rolled plate
Corrosion protection conform to ASTM A153 standard for hot dipped zinc coating
Round Shank Anchors are Hot Dip Dalvanized to meet ASTM Specification A153.

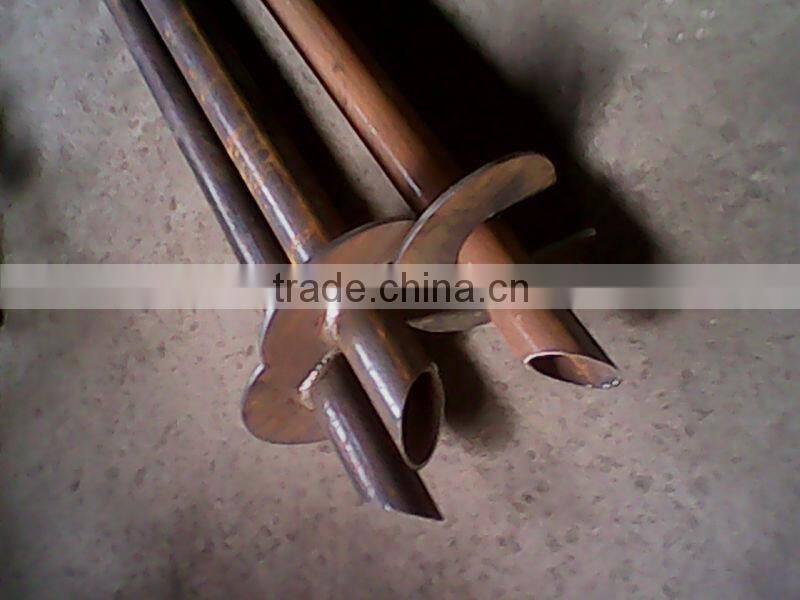

Leading edge of Helices beveled 45 degrees
Greater Section Modulus Strength to resist Twisting and Deflection
Greater Load Capacities
Specifications | |||||
Shaft Size(inch) |
Wall Thick(inch) |
Helix Thick(inch) |
Lead Length(ft) |
Helix Size(inch) |
Extension Length(ft) |
2.875 OD. |
0.262 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
3.00 OD. |
0.238 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
3.50 OD. |
0.254/0.300 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
4.50 OD. |
0.290/0.337 |
3/8 or 1/2 |
5ft/7ft/10ft/12ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
5.50 OD. |
0.362 |
3/8 or 1/2 |
5ft/7ft/10ft/12ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
6.625 OD. |
0.562 |
3/8 or 1/2 |
5ft/7ft/10ft/12ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
Notes: Other sizes are available upon request.

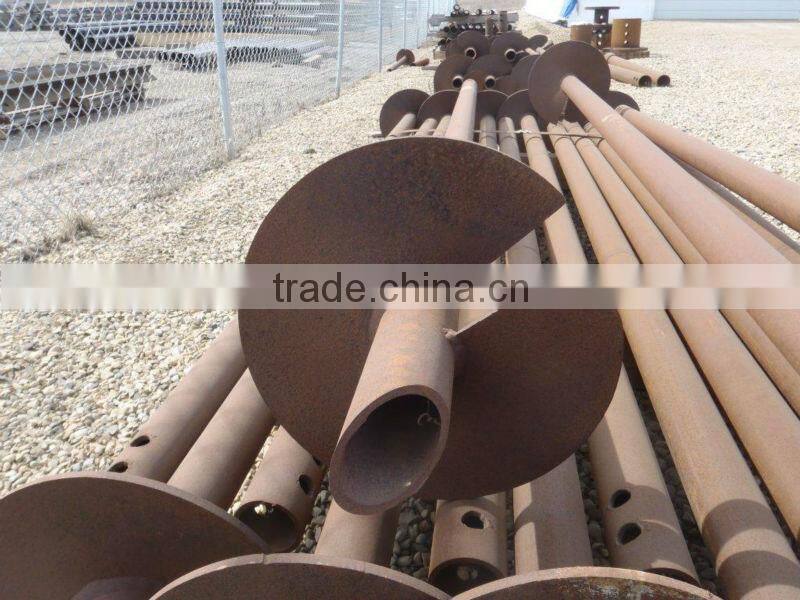

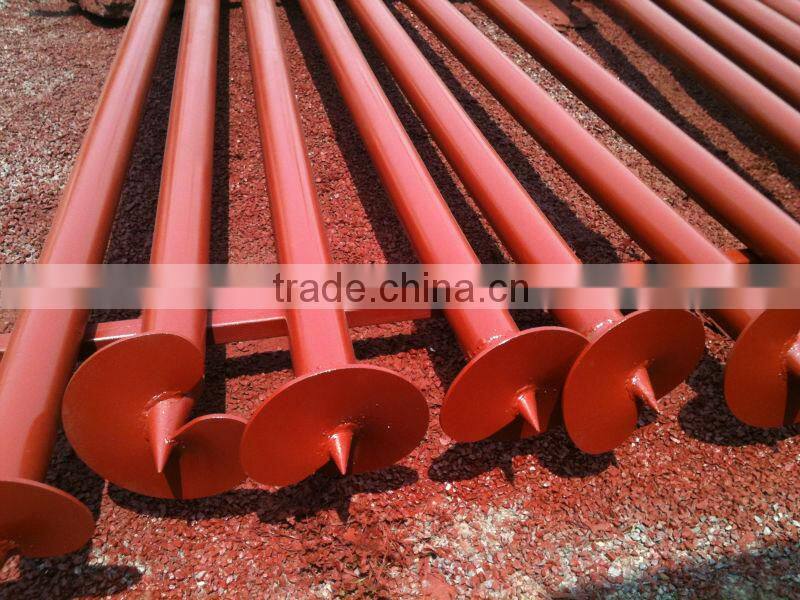

The detail of Helical Piles:
Shaft: 84"x2.375"x0.152" Round Pipe,
Helix: 2.92"x0.3125" Helix Plate

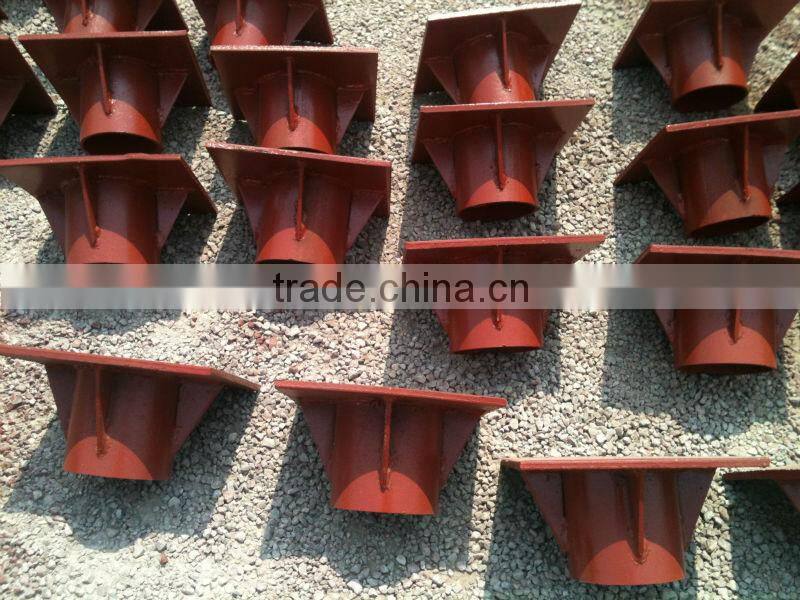

Bracket: 5"x5"x0.25" Square Plate or 3"x0.25" Round Plate
