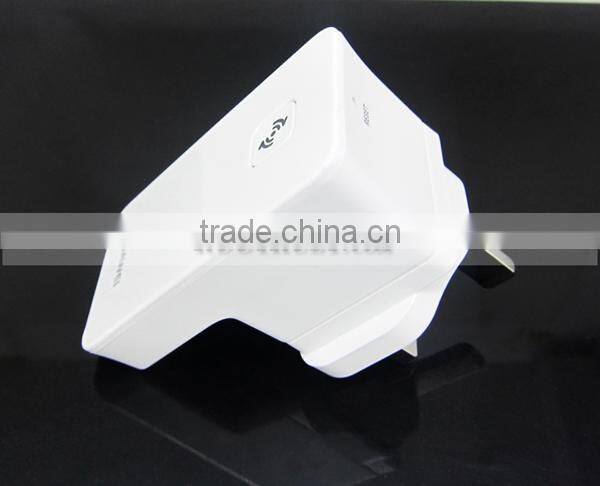

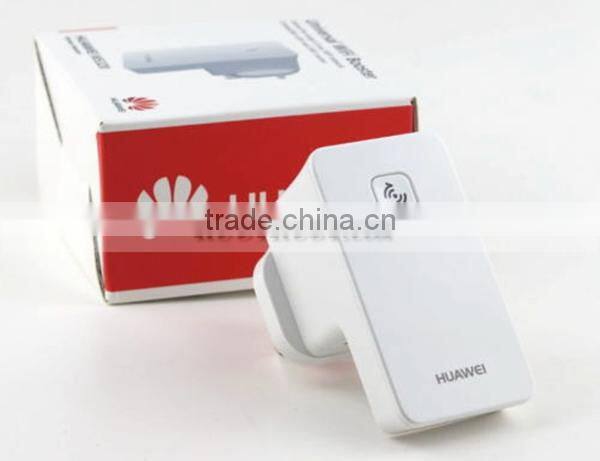

Huawei WS320 WIFI Signal Amplifier For Ipad Across Wall

Name: Huawei WS320 WIFI Signal Amplifier For Ipad Across Wall
Brand: HUAWEI
SKU: 113601577
Availability: InStock

Huawei WS320 WIFI Signal Amplifier For Ipad Across Wall thumbnail-1

Huawei WS320 WIFI Signal Amplifier For Ipad Across Wall photo-1

US$ 20 - 30 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

HUAWEI

Model Number:

WS320

Contact Supplier Request Quote Chat Now

Shenzhen Rootrust Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name HUAWEI

Model Number WS320

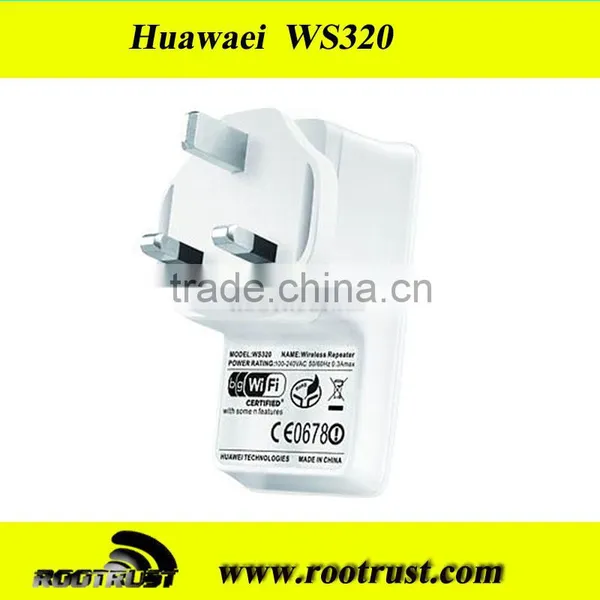

Huawei WS320 Wi-Fi Repeater Mini Wifi amplifier Range Extender UK PLUG

Description:

Introducing the Huawei WS320 Wifi Booster with UK 3 - Pin Plug A Simple to use solution to extend the range of an existing WiFi network within the home or the office. Simply plug in the device into a power socket and push the button and your ready to go.

Main Features:

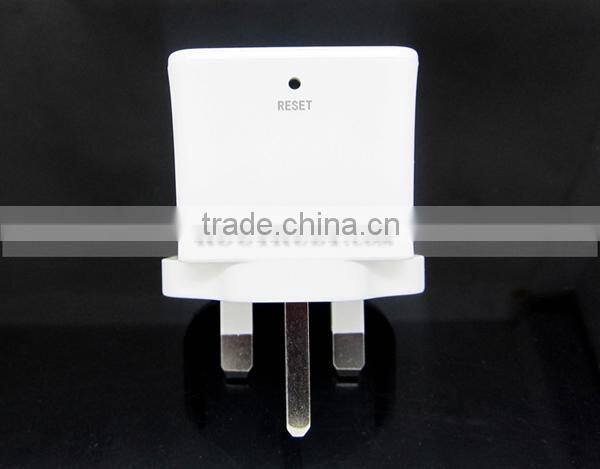

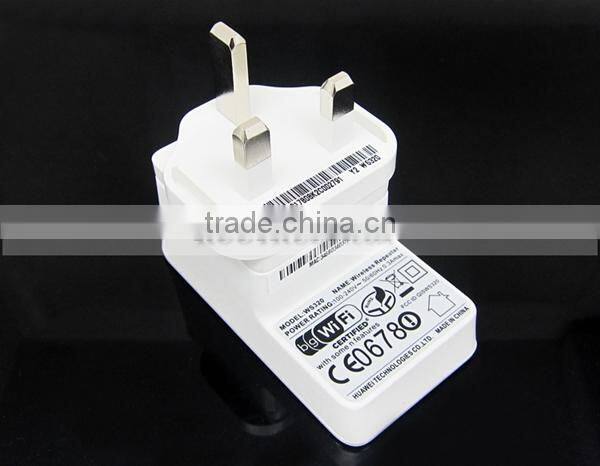

* Simple Plug in installation (UK 3-Pin Plug)
* WPS Pairing - Easy push button configuration
* Support for WEP, TKIP AES encryption
* Supports all common WiFi standards
* Up to 150m WiFi Range
* Simple Web Configuration

Technical specification
Entire-device power supply	100-240V AC
Entire-device powerconsumption	<5w
Dimension	76x42x59mm
Weight	about 61g
Wireless netowrking	802.11b/g/n (2.4-2.4835GHz)
Wirelss network coverage	maximum distance of 150m from the WS320 to a wireless router (with no obstacle between)
Wireless data rates	802.11b	1 Mbit/s, 2Mbit/s, 5.5 Mbit/s, and 11 Mbit/s
	802.11g	6 Mbit/s, 9Mbit/s,12Mbit/s, 18 Mbit/s, 24Mbit/s,36Mbit/s, 48Mbit/s and 54 Mbits
	802.11n (a IT x IR antenna used)	6 Mbit/s, 6.5Mbit/s,13.0Mbit/s, 13.5Mbit/s, 19.5Mbit/s,26.0Mbit/s,27.0Mbit/s and 39.0 Mbits, 40.5Mbit/s, 52.0Mbit/s,54.0Mbit/s, 58.5 Mbit/s, 65.0Mbit/s,81.0Mbit/s, 108.0Mbit/s and 121.5 Mbits and 135.0Mbits

Home Users:

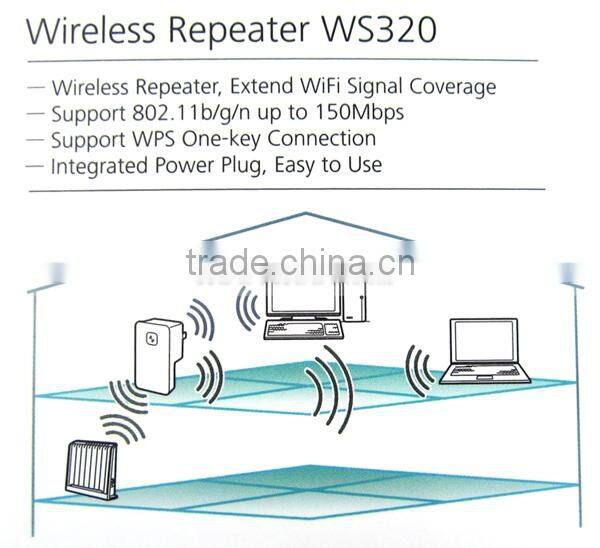

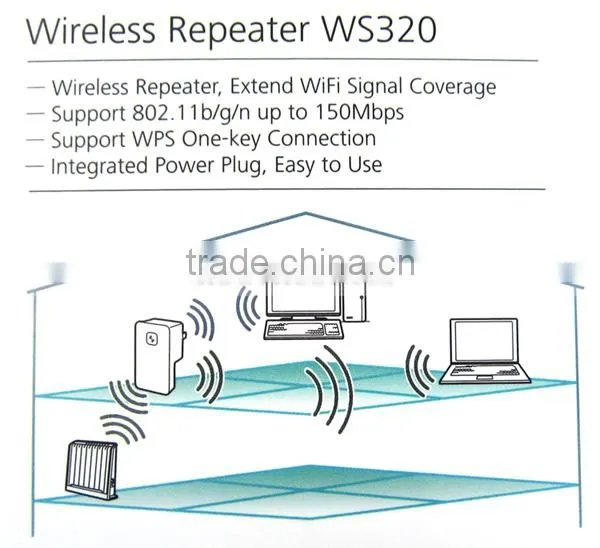

The number of consumer electronic products which uses WiFi connectivity continues to grow, creating a natural demand for wider WiFi coverage around the home from devices which include games consoles, TV's, Printers, smartphones and many more devices. Domestic WiFi routers tend to be sited next to the landline master socket, typically in the hallway or at the one side of the house which is not always the most effective location for distributing signal throughout the building. The Huawei WS320 can be sited at any point in the home to provide a strong signal and minimise black spots.

Business User:

The Huawei WS320 provides an easy solution for business users to extend a WiFi network for employee or customer use at minimal cost; these can be used as a simple extension to an office network, help signal strength at restaurants, hotels, cafes and many other places of interest. The Huawei WS320 avoids the need for expensive cabling or additional routers.

Setting-up:

* The WS320 can be set up easily in just a few steps:
* Plug WS320 into a power socket
* Press the 'pairing' button (WPS) on the existing WiFi router
* Press the 'pairing' button on the Huawei WS320
* Wait a few seconds, the status light on the WS320 will turn green
* Huawei device will begin to relay the existing WiFi signal using the same network name (SSID) and password (encryption)
* Devices can be seamlessly connected to the WiFi network as normal WPS is supported by most recent Wifi routers (e.g. BT Home Hub), if WPS is not available then a web-based setup administration console will guide the user through steps required to configure the device.

Comparison WS320 vs WS322 and WS323:

Name	WS320 150Mbps Wireless Repeater	WS322 300Mbps Wireless Range Extender	WS323 300Mbps Wireless Range Extender
Wi-Fi	802.11b/g/n	802.11b/g/n	802.11b/g/n
Working Mode	Repeater	Wi-Fi Router	Wi-Fi Router
		Repeater	Repeater
		Client	Client
Frequency	2.4GHz	2.4GHz	5GHz, 2.4GHz
Data rate	150Mbps	300Mbps	300Mbps
Interfaces	none	1 x Ethernet port	1x Ethernet port (Gigabit)
Wireless Strength detection	none	Support	Support
Antena	1x1 Internel antennas	2x2 Internal antennas	2x2 Internal antennas
Dimension(LxWxH)	76x42x59mm	73x73x30.7(without plug)	73x73x30.7(without plug)
Weight	about 61g	<200g	<200g
Power Supply	100V~240V AC	100V~240V AC	100V~240V AC
Power Consumption	<5W	<5W	<5W
Buttons	Reset, WPS	Reset, WPS	Reset, WPS
Power Supply	Built-in power supply	Built-in power supply	Built-in power supply
