Specifications
Waterproof structure designStandard 125K HZ RFID card module and optional Mifare module
Wiegand signal output
RS485,TCP/IP
All-mental Waterproof RFID Access Control
YA-203D
Main Features:
> Metal structure, anti-explosion.
> Support 125KHz EM card.
> Low power consumption (standby input current: <20mA).
> 3 access modes: Card, Card or PIN, Card with PIN.
> Can work as a standalone keypad (PIN code length: 4-6 digits).
> Pulse mode, toggle mode.
> Relay output load can be 3A max.
> Supports: door ajar, forced, shunt, monitor, and secure mode.
> Antistatic Interference: 15KV.
> Certificate: CE
Specifications:
> Input Voltage: 12V±10% DC
> User Capacity: 1 master code, 1,000 users
> Door Relay Time: 1-99s
> Standby Input Current: <20mA
> Card Read Range: 3-6cm
> Card Read Sensor Time: ≤0.1S
> Lock Output Load: 1A
> Alarm Output Load: 3A
> Operating Temperature: -40°C~60°C(-40°F~140°F )
> Operating Humidity: 0-95%
> Dimension: L135mm×W58mm×H30mm
Packing List:
1 × Digital Keypad
1 × User Manual
4 × Rubber Bungs
4 × Self Tapping Screws
1 × Diode

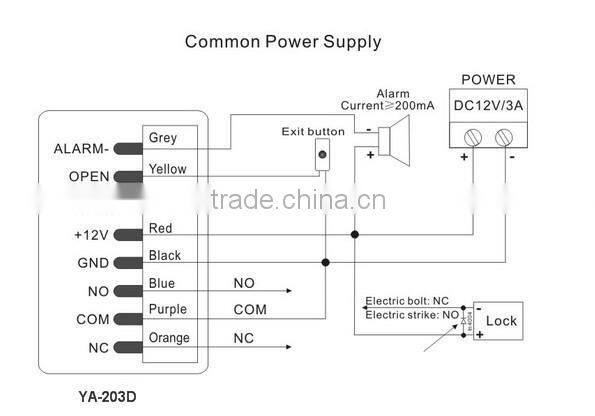

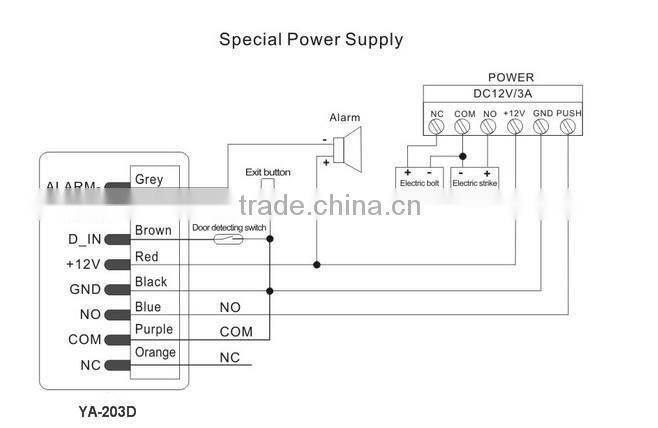

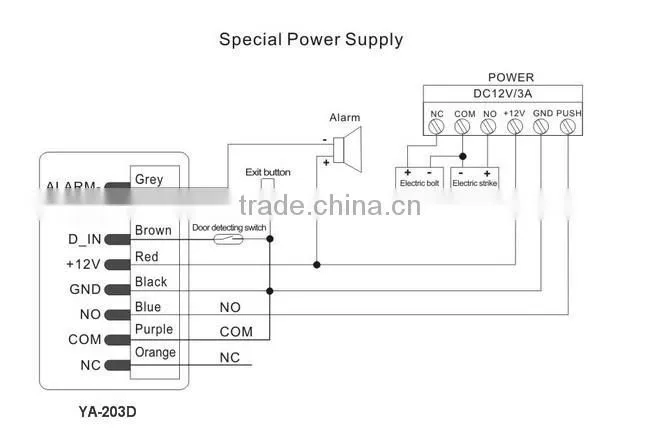

Connection Diagram:
