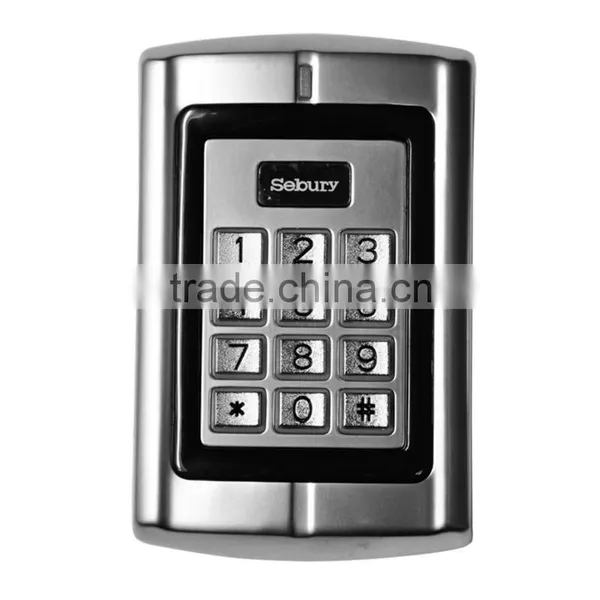

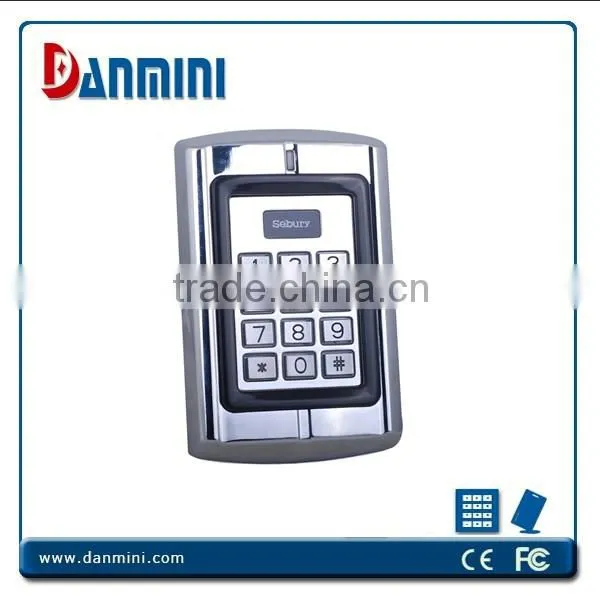

All-mental Waterproof Fingerprint&RFID Access Control
BC-2000
Model: YA-202D
> Card: 125KHz EM
> Card Reading Range: 3-6cm
> Communication interface: Wiegand 26-37 can be customized (26 bit is factory default)
> Power: ≤30mA
Main Features:
> Appearance: Metal structure, safe, anti-vandal
> Support Card: 125KHz EM
> Keypad Design: Combine proximity reader with keyboard, keyboard has backlight
> Output Format: 4 bit,8 bit or Virtual card number (factory default: 4 bit), buyers can ---order by their demands.
> Communication Interface: 26 bit is factory default setting.
> Use HID Card: it can identify the format of HID card and output Wiegand 26-37 automatically
> Ultra-low Power Consumption: ≤30mA.
> Protective Performance: IP65 (fully-potted), tamper alarm.
> Testing: electrical fast transient burst generator 3.5KV, electrostatic immunity tester 15KV, ---high and low temperature tester -40°C~60°C.
> Suit For: storage, bank, prison etc.
Specifications:
> Supply Voltage: 12V DC
> Standby Current: ≤30mA
> Communication Interface: Wiegand26-37(customized)
> Support Cards: EM, HID, IC/CPU
> Response Time: 0.1s
> Card Reading Range: 3-6cm/2-6cm
> Operating Temperature: -40°C~60°C
> Level of Protection: IP65
> Antistatic: 15KV
> Transmit Distance: 100M

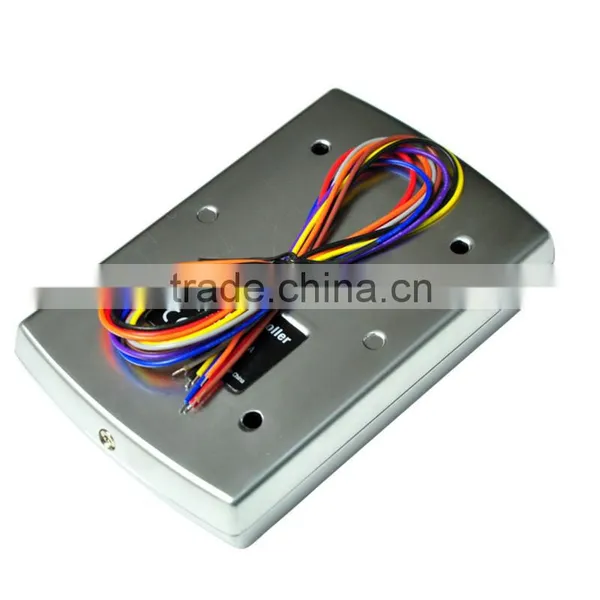

> Cable Length: 90-100cm
> Dimension: L128mm×W82mm×H28mm
