Woven Wire Mesh

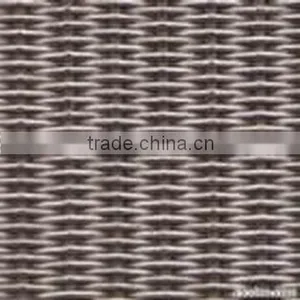

Woven Wire Mesh thumbnail-1
Woven Wire Mesh photo-1
US$ 10 - 50 MOQ: 10 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Material:
Stainless Steel Wire
Type:
Weave Wire Mesh
Contact Supplier Request Quote Chat Now
Anping County Yujun Metal Mesh Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Material Stainless Steel Wire
Type Weave Wire Mesh
Application Filters
Weave Style Other, plain, twill,
Technique Woven
Brand Name yujun

Specifications

woven wire mesh
AISI302 304 316 316 L
weave: plain,twilled, Dutch
Roll width: 2'-8' Mesh/inch 3x3--400x400
ISO 9001:2000

 Woven Wire Mesh is made of high quality stainless steel wire .The performance tested of Stainless steel is wear-resisting , heat-resisting , acid - resisting and corrosion resisting. Just because of these characteristics, the wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.

Plain dutch weave: Woven as a plain weave, but with the warp wires of greater diameter than the weft wires. The weft wires are very close together so that a so-called zero-mesh structure is formed; while the warp wires are thicker and arranged wider apart.

Twill dutch weave: "Twill" indicates the warp and weft wires pass alternately above two and below two wires. "Dutch" refers to the use of a heavier warp wire diameter in conjunction with a lighter weft wire diameter. This weave shows a combination of twill and dutch weave.

Wire Mesh Plain Dutch Weave

Gauge

Mesh

Wire Diameter

Reference values of particles passed

40

10x64

0.55x0.42

260

50

12x75

0.45x0.35

220

80

24x110

0.35x0.25

160

100

25x140

0.28x0.20

100

120

30x150

0.25x0.18

80

140

35x180

0.20x0.16

70

160

40x200

0.18x0.13

60

180

45x220

0.16x0.12

56

200

50x250

0.15x0.11

50

240

60x300

0.14x0.09

45

260

65x320

0.13x0.08

36

280

70x400

0.125x0.07

34

300

80x700

0.11x0.039

32



Wire Mesh Twilled Dutch Weave

Gauge

Mesh

Wire Diameter

Reference values of particles passed

80II

20x250

0.28x0.2

38

120II

30x300

0.25x0.18

36

200II

50x500

0.14x0.11

34

320I

80x700

0.11x0.08

32

320II

80x780

0.10x0.07

30

360

90x780

0.10x0.07

25

400I

100x780

0.10x0.07

22

400II

100x900

0.10x0.063

20

500

120x1100

0.07x0.05

17

630

150x1400

0.063x0.04

16

650

180x1800

0.07x0.04

14

685

165x1400

0.063x0.032

13

795I

200x1400

0.07x0.04

12

795II

200x1800

0.05x0.032

10

850

2l0x1900

0.045x0.03

10

1000

250x2000

0.045x0.028

8

1125

280x2200

0.036x0.026

7

1225

300x2200

0.036x0.026

6

1280

325x2300

0.035x0.025

5

1600

400x2800

0.03x0.018

3
