Stainless Steel Mesh

Specifications

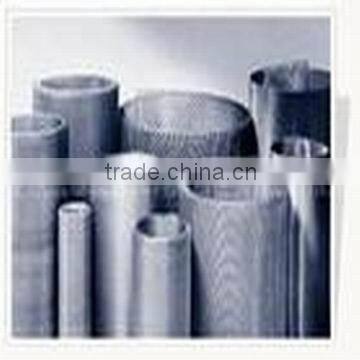

stainless steel mesh
ISO9001:2000
Material: 304,304L,316,316L,410,420,430,201
wire dia. :0.025 to 1.8mm
mesh:1-600mesh

Stainless steel mesh

Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth.T304 is the most common, but other are used in specific applications to take advantage of each grades unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.
Our stainless steel wire mesh products are generally made of stainless steel Type 302,304,304L,316,316L,321 and 430 etc. We produce wire cloth in all kinds of forms. The weaving is determined according to our customers specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.

Plain weave: Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.
Characteristics: square aperture ,high flow through , relative high open area, as result less pressure drop during filtration suitable for all kinds of filtration up to 63 µm.



Stainless Steel Woven Wire Mesh
Mesh/Inch	Wire Gauge SWG	Aperture mm
40meshx40mesh	36	0.44
50meshx50mesh	38	0.36
60meshx60mesh	40	0.30
80meshx80mesh	42	0.21
100meshx100mesh	44	0.17
120meshx120mesh	44	0.13
150meshx150mesh	46	0.108
160meshx160mesh	46	0.097
180meshx180mesh	47	0.09
200meshx200mesh	47	0.077
250meshx250mesh	48	0.061
270meshx270mesh	48	0.058
300meshx300mesh	49	0.054
325meshx325mesh	49	0.051
350meshx350mesh	49	0.042
400meshx400mesh	50	0.0385
Width: 0.6m-8.5m
