Specifications
knitted wire meshAISI302 304 316 316 L
weave: plain,twilled, Dutch
Roll width: 2'-8' Mesh/inch 3x3--400x400
ISO 9001:2000
knitted Wire Mesh
made of high quality stainless steel wire .The performance tested of Stainless steel is wear-resisting , heat-resisting , acid - resisting and corrosion resisting. Just because of these characteristics, the wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.
Plain dutch weave: Woven as a plain weave, but with the warp wires of greater diameter than the weft wires. The weft wires are very close together so that a so-called zero-mesh structure is formed; while the warp wires are thicker and arranged wider apart.

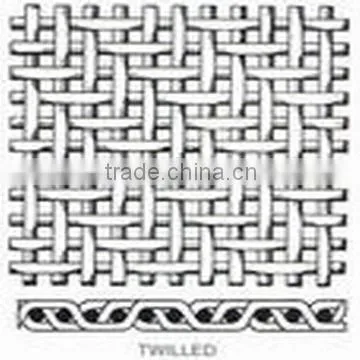

Twill dutch weave: "Twill" indicates the warp and weft wires pass alternately above two and below two wires. "Dutch" refers to the use of a heavier warp wire diameter in conjunction with a lighter weft wire diameter. This weave shows a combination of twill and dutch weave.
Wire Mesh Plain Dutch Weave | |||
Gauge |
Mesh |
Wire Diameter |
Reference values of particles passed |
40 |
10x64 |
0.55x0.42 |
260 |
50 |
12x75 |
0.45x0.35 |
220 |
80 |
24x110 |
0.35x0.25 |
160 |
100 |
25x140 |
0.28x0.20 |
100 |
120 |
30x150 |
0.25x0.18 |
80 |
140 |
35x180 |
0.20x0.16 |
70 |
160 |
40x200 |
0.18x0.13 |
60 |
180 |
45x220 |
0.16x0.12 |
56 |
200 |
50x250 |
0.15x0.11 |
50 |
240 |
60x300 |
0.14x0.09 |
45 |
260 |
65x320 |
0.13x0.08 |
36 |
280 |
70x400 |
0.125x0.07 |
34 |
300 |
80x700 |
0.11x0.039 |
32 |
Wire Mesh Twilled Dutch Weave | |||
Gauge |
Mesh |
Wire Diameter |
Reference values of particles passed |
80II |
20x250 |
0.28x0.2 |
38 |
120II |
30x300 |
0.25x0.18 |
36 |
200II |
50x500 |
0.14x0.11 |
34 |
320I |
80x700 |
0.11x0.08 |
32 |
320II |
80x780 |
0.10x0.07 |
30 |
360 |
90x780 |
0.10x0.07 |
25 |
400I |
100x780 |
0.10x0.07 |
22 |
400II |
100x900 |
0.10x0.063 |
20 |
500 |
120x1100 |
0.07x0.05 |
17 |
630 |
150x1400 |
0.063x0.04 |
16 |
650 |
180x1800 |
0.07x0.04 |
14 |
685 |
165x1400 |
0.063x0.032 |
13 |
795I |
200x1400 |
0.07x0.04 |
12 |
795II |
200x1800 |
0.05x0.032 |
10 |
850 |
2l0x1900 |
0.045x0.03 |
10 |
1000 |
250x2000 |
0.045x0.028 |
8 |
1125 |
280x2200 |
0.036x0.026 |
7 |
1225 |
300x2200 |
0.036x0.026 |
6 |
1280 |
325x2300 |
0.035x0.025 |
5 |
1600 |
400x2800 |
0.03x0.018 |
3 |
