dc brushless water pump, dc Motor for foot tube, Bed mattress, bath mathing
Voltage: 6VDC-24VDC
Max Power: 25W
Brushless dc Water Pump
Specification:
¤ Product Parameter | |||||||||
|
Model Character |
ZGP3501-2 |
||||||||
Working voltage range |
6VDC-24VDC |
||||||||
Rated power |
3~25W |
||||||||
Static water head |
0.5~6 meters |
||||||||
Static flow rate |
5~13L/min |
||||||||
|
Continuous operation under normal working surrounding>20000H |
||||||||
|
PH value: PH5-10(weak acid and weak base), workable both on land and in water. |
||||||||
|
Under normal working condition,(1meter over the test instrument)<35dB |
||||||||
Max working temperature |
Under room temperature surroundings, fluid medium temperature≤100℃ |
||||||||
Lifespan |
Bed mattress, portable bath machine, medical treatment equipment, fountain, aquarium, solar water circulation system, etc. |
||||||||
Working Environment |
Black (Can be customized according to your requirement) |
||||||||
Max noise |
Can be adjustable at any angle |
||||||||
Dimension |
IP grade |
Inlet |
Outlet |
Remarks |
|||||
Length(mm) |
Width(mm) |
Height(mm) |
|
OD(mm) |
ID(mm) |
OD(mm) |
ID(mm) |
Inlet has antislip strip |
|
74.0 |
50 |
53.5 |
IP67 |
13.5 |
10.5 |
9 |
6.5 |
|
|
| |||||||||
¤ Characteristic Graph | |||||||||
|
Remarks: The graph is just for your reference, the final one can be based on customers` request. | |||||||||

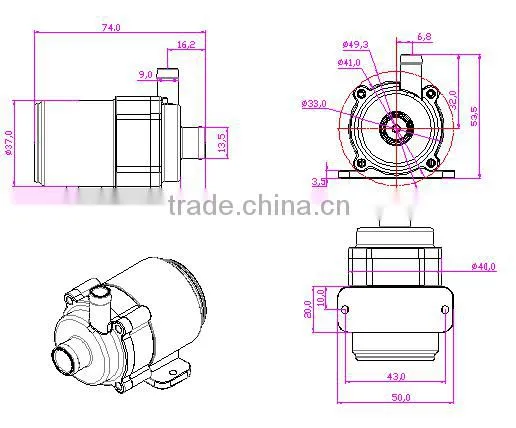

¤Outlet Dimension Drawing |
|
Product description:
1. Life: advanced magnetic drive technology to avoid the traditional rotor friction, can realize long lifetime more than 20,000 hours .
2. Low noise: ≤35dB, at 1 meter distance.
3. Working Way: The product is a brushless magnetic drive, 24 hours of continuous work.
4. Working conditions: Applying to indoor and outdoor under temperature 100degC.
5. Closed-impeller, high water head,high flow rate.
5. High temperature:100°C.
6. Can customized.

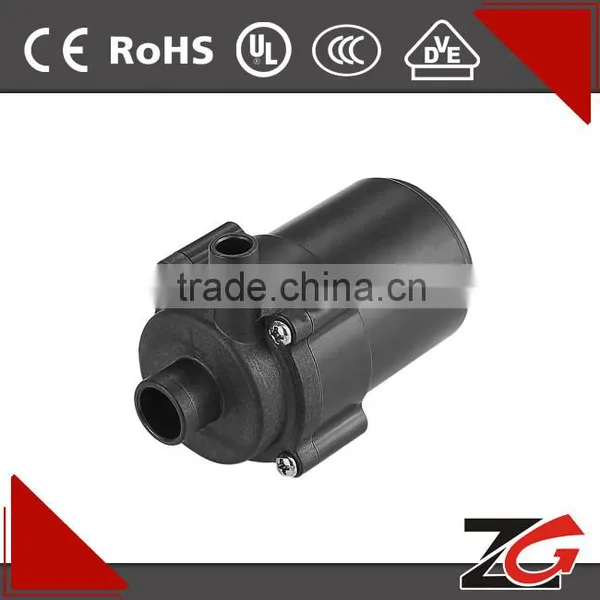

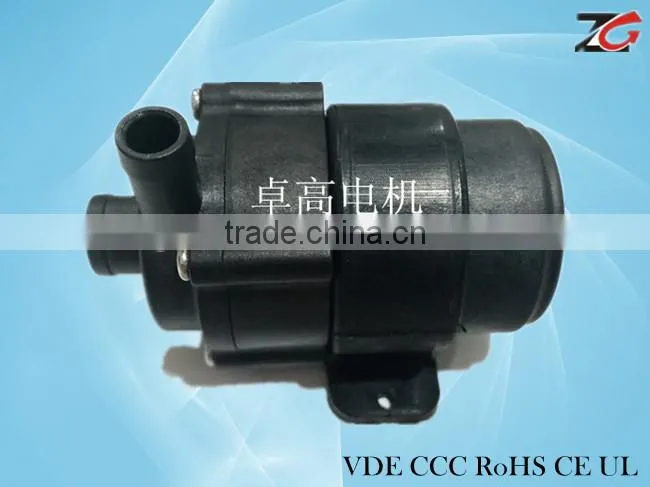

¤Product Picture |
Model No.: ZGP3501-2
1. Household application
Drinking fountains, coffee pot, wine glasses, foot bath,
drink machines, computers mainframe,mobile air conditioning,
central air conditioning,water heaters, Bed mattress, portable bath machine,
fountain, aquarium etc.
2.Solar water circulation system
3.Medical treatment
4.Car products
5.Irrigation of agriculture
Some Application show as below:
ZGP3501-2 Brushless water pump use for Bed mattress, portable bath machine, medical treatment equipment, fountain, aquarium, solar water circulation system, etc.
The action as below
ZGP3501-1, P3501-2, ultra quiet,
Waterproof grade IP68 (long diving work)
Role: mattress water heating cycle
About us
Zhuogao Motor Manufacturing Co., Ltd, which was established in 2006, specializes in motor R&D, manufacturing and selling, Our motor products will be widely used in the products such as oven humidifying equipment, electric fan, electric warm equipment, blender, chocolate melting machine, microwave oven, electronic oven, light wave oven and air-purify machine.
Zhuogao has absorbed a group of experienced experts, senior engineers, senior technicians, etc. Who have worked many years in micro R&D fields, moreover Zhuogao has owned advanced producing and testing facilities, abundant motor development technology and rich QC management experience, which ensure Zhuogao is a leading motor manufacture. Now our products have been granted certificate of VDE,CE, CCC, ISO9001-2008, UL, SGS etc.
Zhuogao attaches great importance to product quality and keeps honesty and credit as company's management. We are dedicated providing customers professional technology and after service.
Zhuogao strictly implement quality control for every kind of materies and seruiysly inspect each procedure during manufacture to make sure that each product will conform to the standard level. We also hold training or conference for workers in quality controlling every month, to strenthen request for product quality. Our target is to be your best loyal and reliable partner. At present, our products are well sold to Europe, America, Turkey and Middle East, south Asia etc.
Welcome all customers from domestic inland or overseas to visit Zhuogao and negotiate
Adds: No.10 Nanqu industrial zone, Tianhe North RD West, Ronggui, Shunde, Guangdong, China
