6VDC-24VDC brushless water pump water cycle pump
lar pump,submersible pump,circulation pump,Food grade
2.Heating or cooling system
¤ Product Parameter | |||||||||
|
Model Character |
ZGP3501-1 |
||||||||
Working voltage range |
6VDC-24VDC |
||||||||
Rated power |
3~12W |
||||||||
Static water head |
0.5~4 meters |
||||||||
Static flow rate |
5~10L/min |
||||||||
Lifespan |
Continuous operation under normal working surrounding>20000H |
||||||||
Working Environment |
PH value: PH5-10(weak acid and weak base), workable both on land and in water. |
||||||||
Max noise |
Under normal working condition,(1meter over the test instrument)<35dB |
||||||||
Max working temperature |
Under room temperature surroundings, fluid medium temperature≤100℃ |
||||||||
Application |
Bed mattress, portable bath machine, medical treatment equipment, fountain, aquarium, solar water circulation system, etc. |
||||||||
Color |
Black (Can be customized according to your requirement) |
||||||||
Outlet direction |
Can be adjustable at any angle |
||||||||
Dimension |
IP grade |
Inlet |
Outlet |
Remarks |
|||||
Length(mm) |
Width(mm) |
Height(mm) |
|
OD(mm) |
ID(mm) |
OD(mm) |
ID(mm) |
Inlet has antislip strip |
|
63.0 |
50 |
53.5 |
IP67 |
13.5 |
10.5 |
9 |
6.5 |
|
|
| |||||||||
¤ Characteristic Graph | |||||||||
|
Remarks: The graph is just for your reference, the final one can be based on customers` request. | |||||||||
¤ Product Picture |

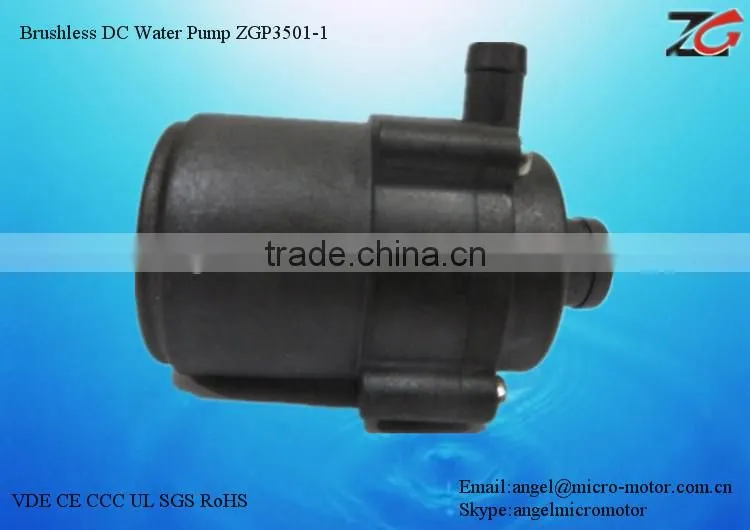

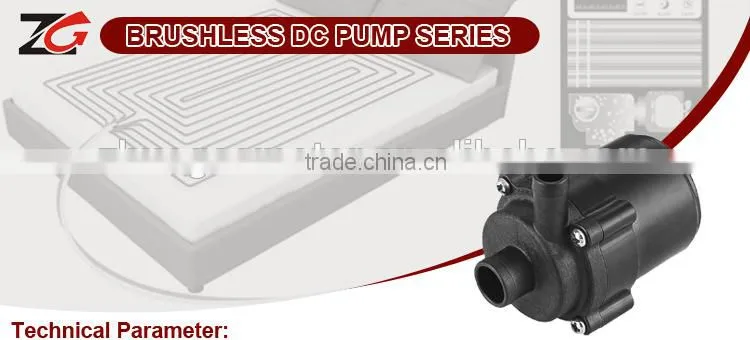

Brushless mini dc water pump
Widely used in drinking fountains, coffee machine, kettle, air cleaners, electric vehicles, solar water system, solar water heaters, fountains, aquarium, air conditioners, computers circulation cooling, refrigeration, handicrafts, solar energy products, medical equipment, electrical washing, automation equipment, office equipment, environmental equipment, power equipment, automotive, small-scale irrigation, medical equipment, cooling and heating systems, bath products, etc.
Below is some application
ZGP3501-1 DC brushless water pump Application for
Bed mattress, portable bath machine, medical treatment equipment, fountain, aquarium, solar water circulation system, etc
Waterproof grade IP68 (long diving work)
Role: mattress water heating cycle
The functional classification:
1. hydronic heating
2. circulating cooling
3. The system booster
4. Measurement System
5. sewage system
6. Water Supply System
About us
| Zhuogao Motor Manufacturing Co., Ltd, which was established in 2006, specializes in motor R&D, manufacturing and selling, Our motor products will be widely used in the products such as oven humidifying equipment, electric fan, electric warm equipment, blender, chocolate melting machine, microwave oven, electronic oven, light wave oven and air-purify machine. Zhuogao has absorbed a group of experienced experts, senior engineers, senior technicians, etc. Who have worked many years in micro R&D fields, moreover Zhuogao has owned advanced producing and testing facilities, abundant motor development technology and rich QC management experience, which ensure Zhuogao is a leading motor manufacture. Now our products have been granted certificate of VDE,CE, CCC, ISO9001-2008, UL, SGS etc. Zhuogao attaches great importance to product quality and keeps honesty and credit as company's management. We are dedicated providing customers professional technology and after service. Zhuogao strictly implement quality control for every kind of materies and seruiysly inspect each procedure during manufacture to make sure that each product will conform to the standard level. We also hold training or conference for workers in quality controlling every month, to strenthen request for product quality. Our target is to be your best loyal and reliable partner. At present, our products are well sold to Europe, America, Turkey and Middle East, south Asia etc. Welcome all customers from domestic inland or overseas to visit Zhuogao and negotiate |
