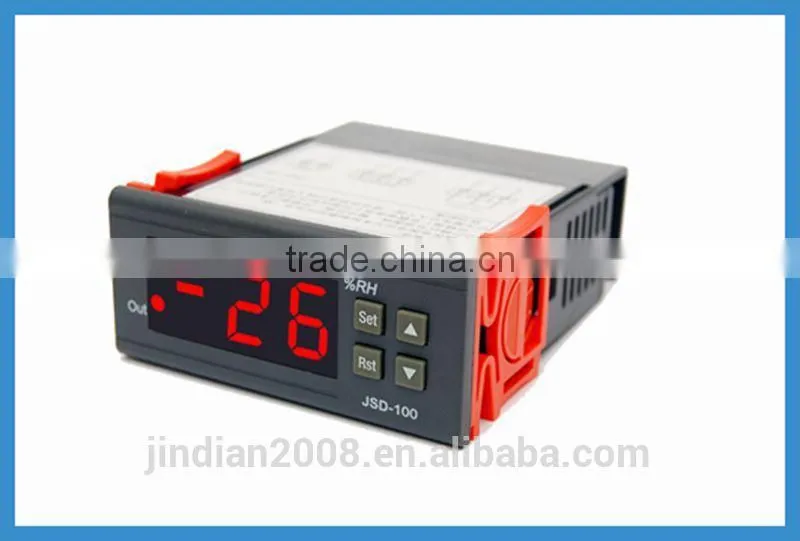

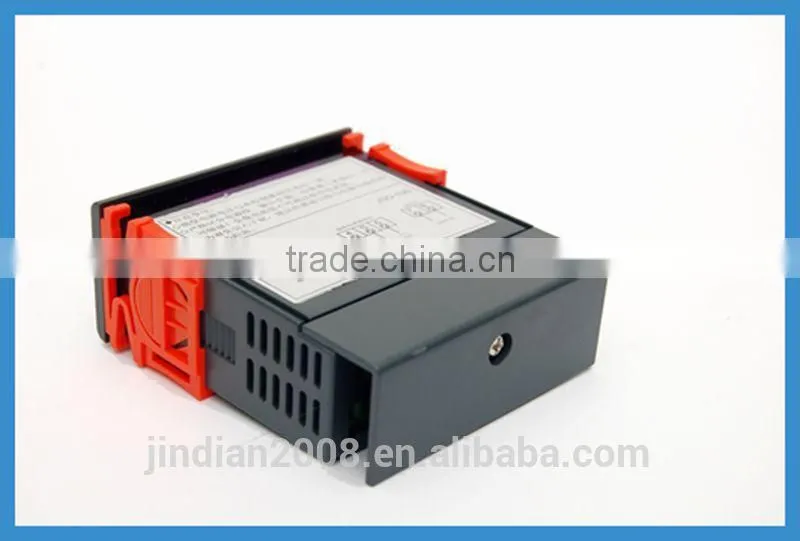

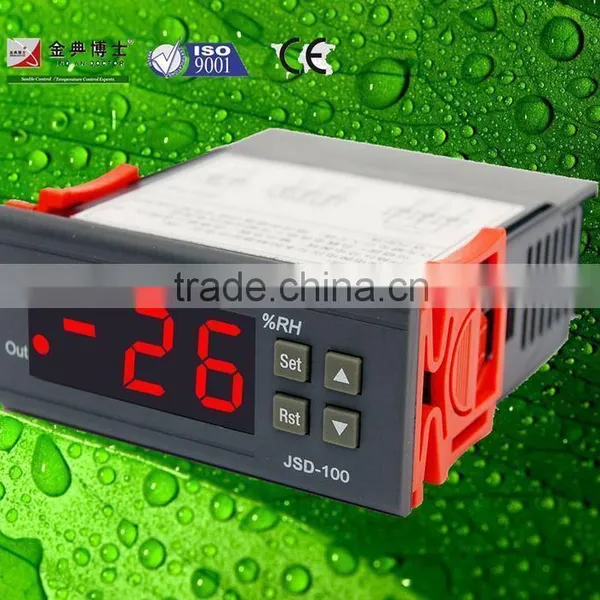

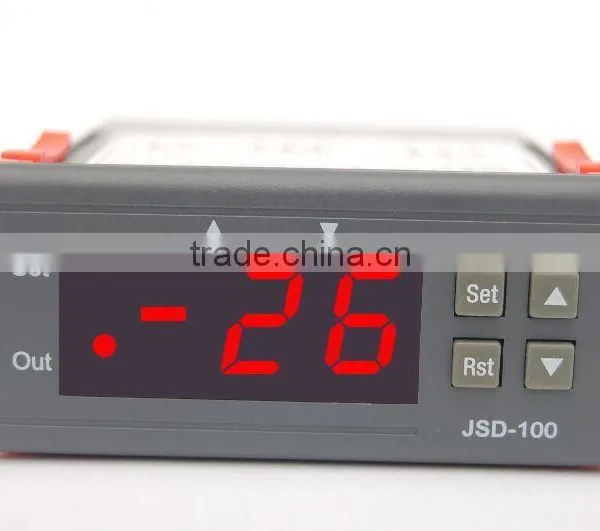

humidifier controller
1.microcomputer as moisture humidity controller USES the high polymer humidity sensor, relay control output, has high sensitivity, fast response speed, antiinterference performance is good wait for a characteristic.
2.Can be widely used in the humidifying machine, dehumidifier, devices such as humidity control, humidity of the air conditioner can also be used for relative humidity of the measurement and display.
5.All the amount of humidity measurement, display; All the way to control the output.
6.Humidity control adopts the return difference method Humidification/dehumidification mode conversion.
7.The user menu and managers; Humidity measurement correction Force control switch output.
8.Control the output delay protection; Humidity, overrun alarm Sensor failure alarm.
9.We have designer who can help you design your own branded packaging which belongs to you only.

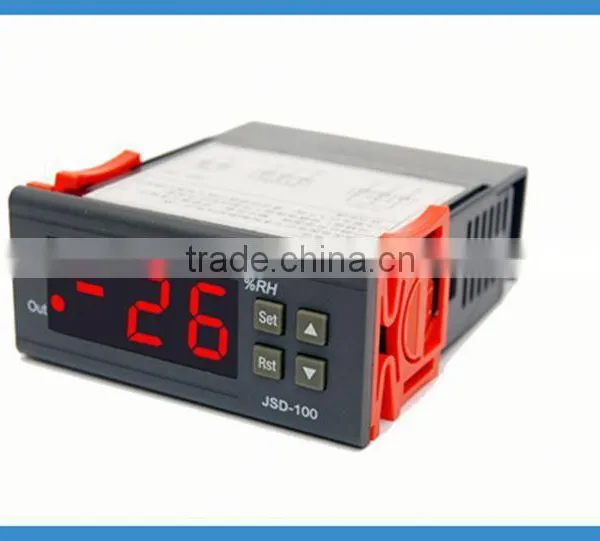

| product name | digital humidity controller JSD-100 |
| the machine size | 34.5 (high) x 75 (width) x 85.5 (deep) (unit: mm) |
| installation hole size | 28.8 (high) x 70 (wide) (unit: mm) |
| controllers, environmental conditions | temperature 0 °C ~ 55 °C, relative humidity 20% ~ 85% (condensation) |
| main technical parameters | voltage: 220 vac + 10% / 15% |
Power consumption |
less 3 w measuring range: 1% ~ 99% RH control range: 10% ~ 95% RH |
Resolution |
1% RH measuring accuracy: + / - 1% RH (25 °C, 10% RH to 10% RH) |
Sensor operating temperature range |
- 30 °C ~ 80 °C temperature coefficient: + / - 0.2% RH / °C |
| Long term stability | 0.5% RH/year capacity of relay contacts: 10 a / 220 vac |
| tips | Sensor failures according to set a time after the open/close control output |
| Items per Carton: | 60pcs/Carton |
| Package Measurements: | 50X36X42 CM |
| Gross Weight: | 20.50 KG |
| Package Type: | Cardboard, plastic shell packaging. |

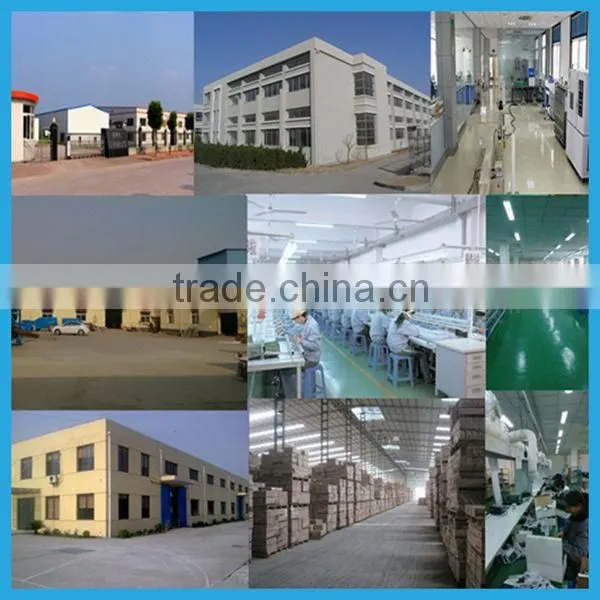

XuZhou Sanhe Automatic Control Equipment Co., Ltd. Founded in April 2005, is a professional manufacturer in the field of Micro-computer temperafure controller Micro-computer humidity controller, Micro-computer temperature and humidity controller, Micro-computer pressure controller, Digital thermometer and hygrometer, refrigeratory electric control box, the products adapt to many locations and areas that need the measuring and controlling of temperature, such as freezing and cold store, refrigeration display cabinet, seafood pond and so on..
