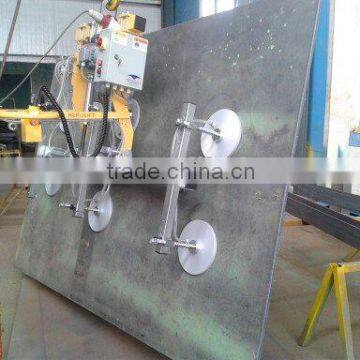

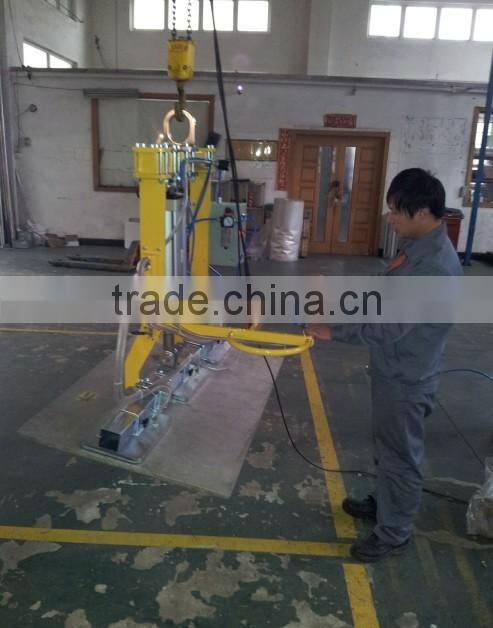

Stone lifter/ Granite lifting equipment/granite vacuum lifting/slab lifter equipment
Since 2006, We are specialized in manufacturing the products-Vacuum lifter equipment
-----Vacuum lifter for granite slab
To make the following technical specifications by Shanghai Herolift Automation Corporation , According to your company the actual working conditions.
1, Plate parameters provide for vacuum lifter lifting:
(1) Material : Stone/ marble/granite slabs, Maximum weight 500kg
(2) (2000-3000)L mm X(1000-2000)W mm X(100)Tmm Max.weight:300kg.
(3) Handling way: Horizontal handling, tilting 90 degree by motor
(4) The surface of polished.
2,Existing crane mechanical and electrical configuration:
(1) Power input: 380v, 50hz, 3phase
(2) Operation manner: Manual operation of production area for suction and release.
(4)Lifting equipment: Driving/cantilever crane (should be provided by the client)
3,Vacuum lifter specification description:
Model No. |
BLS500-6-T; |
Maximum load |
500kg |
Overall dimensions |
2000mmx800mmx1220mm(Approx); |
Power input |
380V. 50HZ, 3PHASE |
Pads No./Size |
6 nos/ 300mm customized |
Suction and release time |
Less than 2s, (Only first suction time slightly longer, about 10~15s) |
Maximum pressure |
85% Vacuum degree(Approx: 0.85Kgf) |
Warning pressure |
60% vacuum degree(Approx 0.6Kgf) |
Security coefficient |
S>4.0,(Vertical lifting) |
Net weight |
130kg(Approx); |
Pressure maintaining (when power failure) |
After Power Failure,the holding time when suction plate by vacuum system >30min.; |
||
Safety alarm |
When the pressure is lower than the set alarm pressure(60%), Sound and light alarm automatic alarm. |
||
4. Function
Without damages
One operator
Acoustic warning
Intergrated safety tank
Imported Pump& Valve
Efficient,safe,quick,easy
SafetyTank& pressure switch warning
Adjustable suction cups, can be turned off individually
5. Application
stone surface polished.
Aluminium Boards
Plastic Boards
Stone Slabs
Laminated chipboards
