Help Center500kg Vacuum Lifters for Metal Sheet
Related Products
Aluminium vacuum lifter /Vacuum lifters for Sheet metal( surface is smooth, even, No air permeability) 500kg Vacuum lifters for metal sheet
The Vacuum lifter can be combined and operated with many different carrier facilities,such as crane,excavatos, wheel loaders, fork lifts.

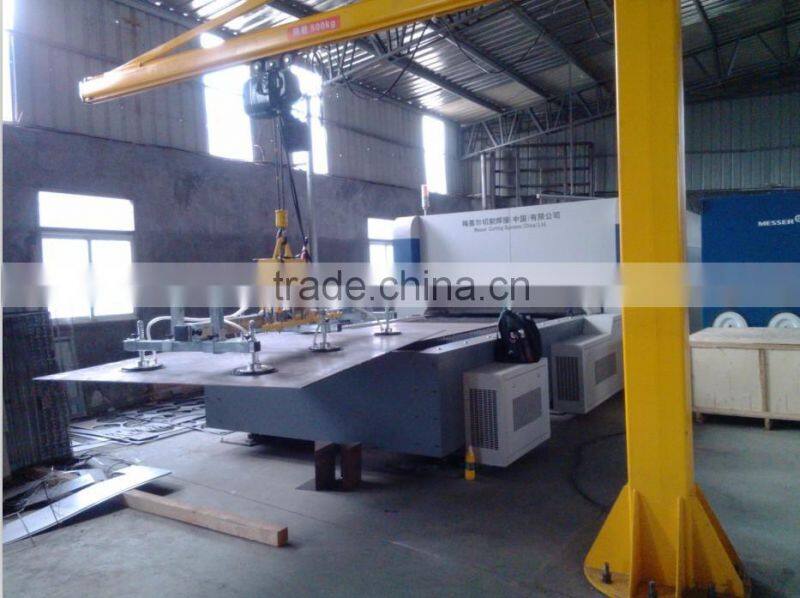

Crane+ hoist+vacuum lifter
1. The model No.:BLA500-6-T
Apply the SS sheet for horizontal handling various panel length less than 3500mm, To processing the sheet metal in the workshop. matching with CNC cutting machine, machine table size: 3000X1500, 4000x2000, 6000x2000mm.
The sheet metal specification as below.
within (1500-3500mm)Lx(1000-2000mm)Wx (1.5 -10)
Maximum weight: 200kg-500kg
2. Our equipment describtion:
1. The model model No.: BLA500-6-T.
Maximum carrying capacity 500kg
2.There are 6 suction pads. Diameter 230mm.
3. The length of main beam is 2000mm. length of cross beam is 800mm.
The vacuum pump, valve, switch and some important spare parts we are import from oversea.
4. Stable performance, Easy to maintain, Efficient, safe, quick, easy.
5. The suction pad can be adjustable, can be turned off and open individuallly.
6. The vacuum lifter is equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
7. The vacuum lifter is equipped with safety tank&Pressure switch warning, when the power is turned off in sudden, always can keep the workpiece not falling down for 15 minutes. Won’t bring about equipment damaged, etc Safe accidents.(EU CE standard for 5 minutes);
8. The design of vacuum lifter by our company is passed to EU CE 13155 passed.
It is CE identification Product.
9. With wire remote control for vacuum suction and release.
3. Application:
Steel boards
Aluminum boards
Plastic boards
Stone slabs
wood panel
Laminated chipboards
4. Load Movement:
- Only Horizontal handling

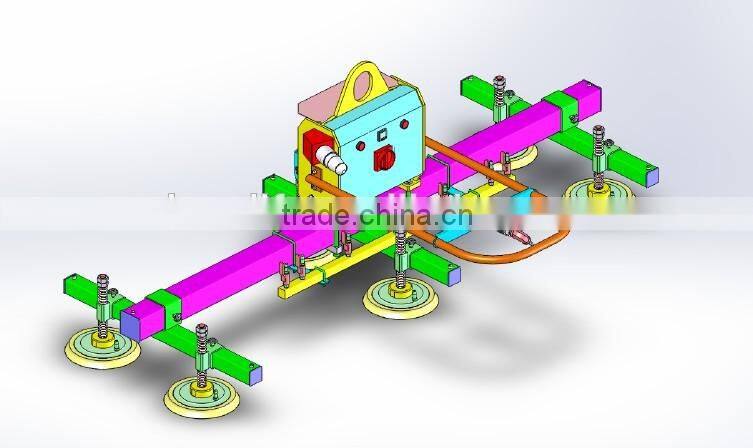

5. The equipment drawing:

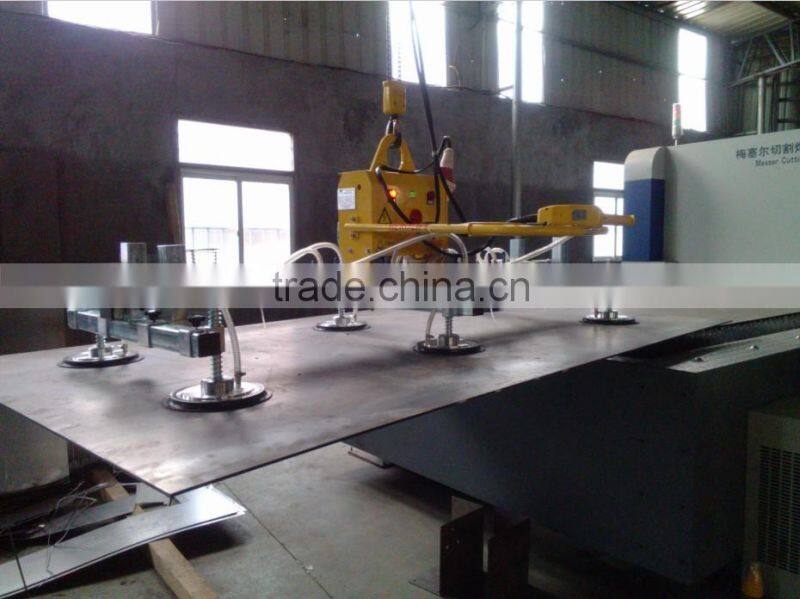

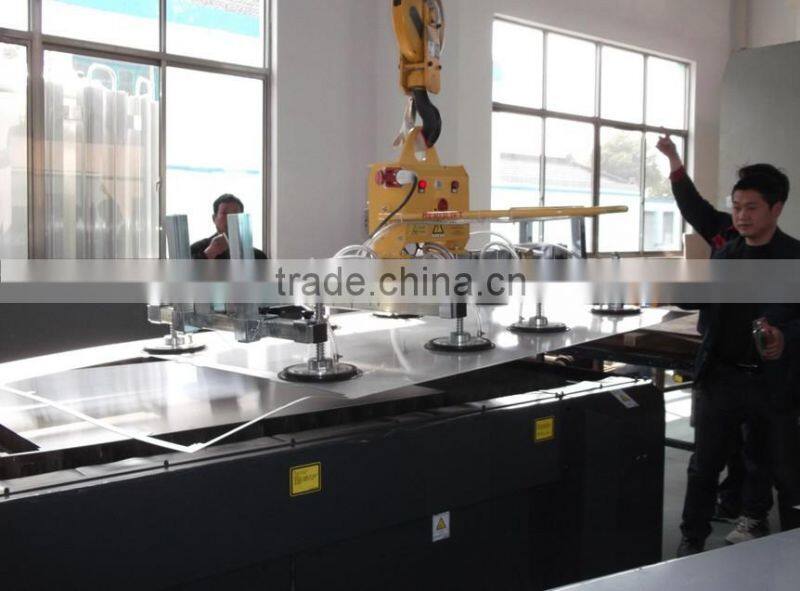

6. The object photos:
