700mm Aluminum Adjustable Blade Swirl Air Diffuser

700mm Aluminum Adjustable Blade Swirl Air Diffuser thumbnail-1
700mm Aluminum Adjustable Blade Swirl Air Diffuser thumbnail-2
700mm Aluminum Adjustable Blade Swirl Air Diffuser thumbnail-3
700mm Aluminum Adjustable Blade Swirl Air Diffuser thumbnail-4

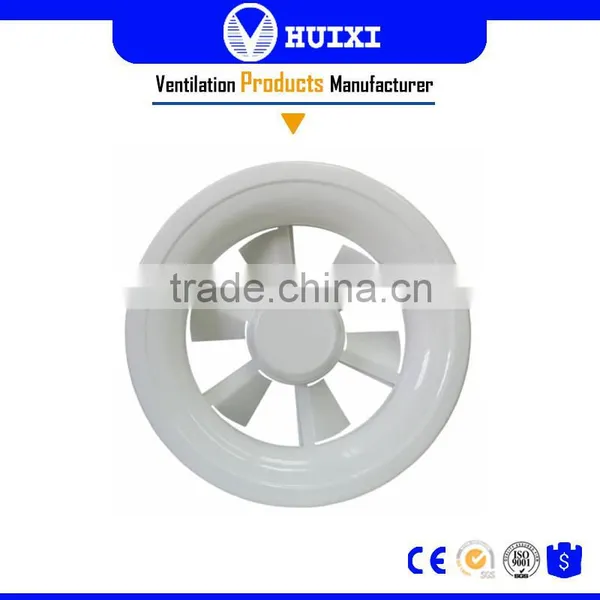

700mm Aluminum Adjustable Blade Swirl Air Diffuser photo-1

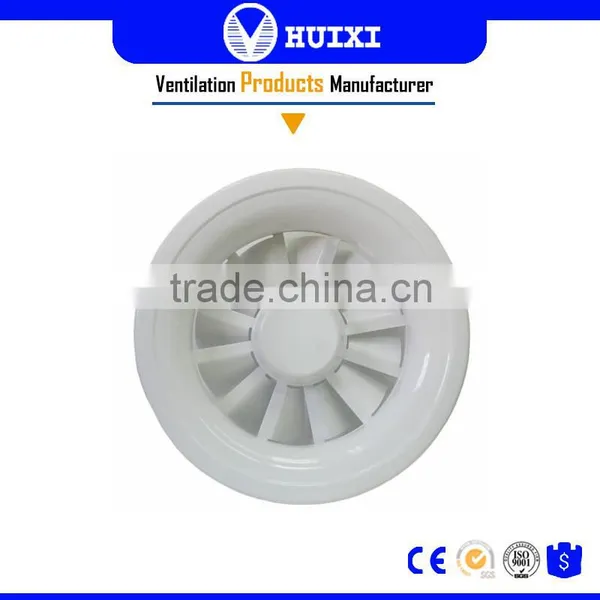

700mm Aluminum Adjustable Blade Swirl Air Diffuser photo-2

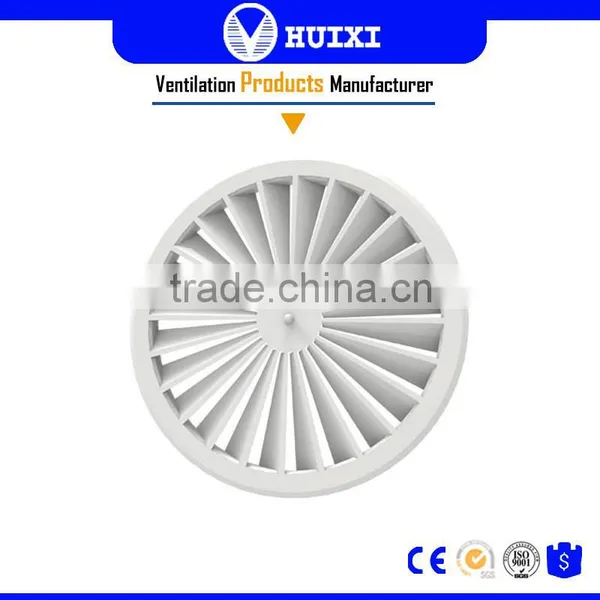

700mm Aluminum Adjustable Blade Swirl Air Diffuser photo-3

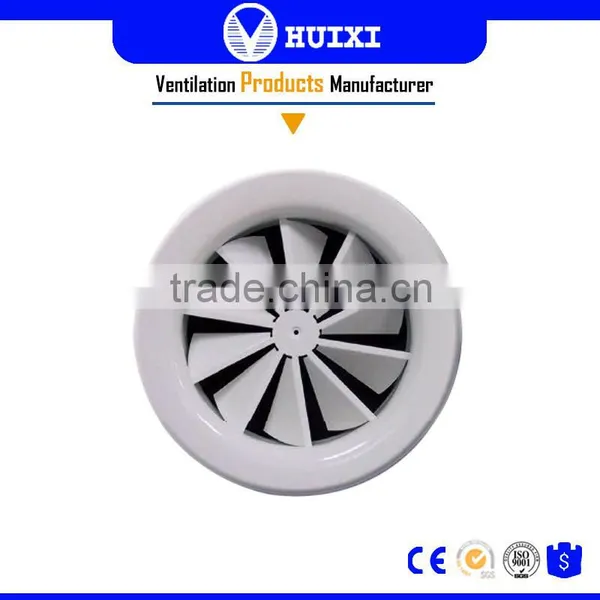

700mm Aluminum Adjustable Blade Swirl Air Diffuser photo-4
US$ 4 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
HX
Model Number:
YXL
Contact Supplier Request Quote Chat Now
Sinolanc Energy Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Tianjin, China
Brand Name HX
Model Number YXL
Type HVAC Systems

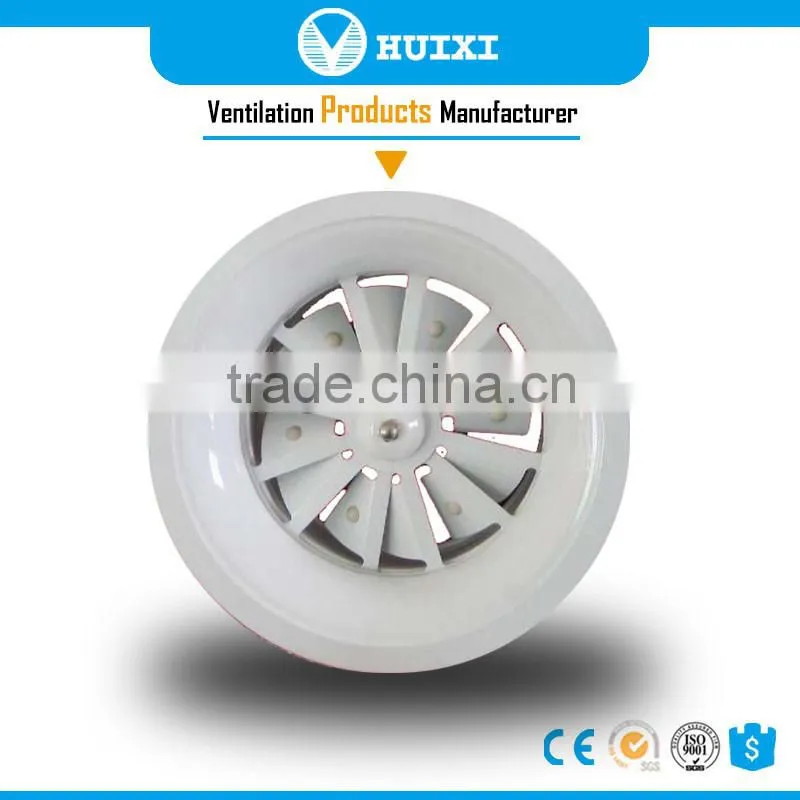

700mm Aluminum Adjustable Blade Swirl Air Diffuser





Product Description



Swirl Air Diffuser Introduction:



XL Swirling air diffusers are designed based on the principle of fluid mechanics, make air swirling out with certain

velocity, enlarge the flow area in order to achieve the air convection. The blades can be adjusted to meet different air supply angle, airflow in horizontal, diagonal and vertical direction. This product could be equipped with a fan- shape damper to control airflow, and the blades can be configured with electrical control system as requirements.



This diffuser is widely used in large building which higher than 3.8m. Such as airports, stations, waiting halls, theaters, stadiums, commercial office, shopping malls. etc





700mm Aluminum Adjustable Blade Swirl Air Diffuser







Specification



Material

Aluminum, Stainless Steel

Size(AxB)

Φ250, Φ315,Φ400, Φ500, Φ630, Φ800.

Features
  1. YXL swirl diffuser is usually used in these big spaces, which is over 3.8 meters high like airports station waiting rooms, exhibition centers, theatres, gymnasiums, industrial plants and so on.
  2. Adjustable leaves and diffuser rings are assembled on the front of the outlet. The leaf is designed according to the principle of fluid dynamics, which can supply the air vortex flow velocity to make the air supply reach far distance, big jet coverage and to increase the convection effect of the air.
  3. The leaf can change the angle according to different air supply conditions. The adjustment of the leaf can be finished by manual or power-driven.
  4. The frame is made by spinning forming process with high-quality aluminum plate and has high strength and beautiful outlook. Electrostatic spay can be applied to the surface according to the decorative requirement.
  5. It can be equipped with air volume adjustment valve and plenum chamber.



Remark:

Dimensions, colors, finished, designs and other specifications can be customized according to customers' requirement.





Technical Parameter



Drawing Picture

700mm Aluminum Adjustable Blade Swirl Air Diffuser



Size Table


C

B

A

T

Φ250

Φ300

Φ366

Φ166

Φ315

Φ365

Φ468

Φ203

Φ400

Φ450

Φ568

Φ238

Φ500

Φ550

Φ688

Φ252

Φ630

Φ686

Φ872

Φ270

Φ800

Φ858

Φ1078

Φ310







Technical Performance



YXL SWIRL DIFFUSER TECHNICAL PERFORMANCE



Air volume (CMH)

Pressure Loss(Pa)

Noise dB(A)

Cooling reach distance(temp change=-8℃)

Heating reach distance(temp change=+15℃)

Φ250

300

10

23

1.7

1.4

500

28

35

3.0

2.6

600

40

46

3.7

3.3

800

82

51

5.0

4.5

1000

99

56

6.0

5.3

Φ315

500

23

25

1.8

1.5

800

60

36

3.1

2.7

1100

100

45

3.5

3.1

1300

142

52

4.7

4.2

1600

205

57

6.0

5.3

Φ400

800

12

28

2.1

1.7

1200

23

39

3.2

2.8

2000

29

45

3.6

3.2

3000

82

52

5.3

4.6

3500

96

58

6.2

5.5

Φ630

1900

19

30

3.4

3.0

2600

33

40

4.2

3.8

3300

50

46

5.7

5.3

4000

86

55

6.9

6.4

4800

128

59

8.4

7.7

Φ800

2800

30

41

3.9

3.6

3600

56

48

4.8

4.3

4400

65

55

6.3

5.7

5200

93

59

7.6

6.5

6000

136

63

9.5

8.3

Note:

  1. The reach distance is measured when the terminal air velocity is at 0.5m/s.
  2. The cooling reach distance is defined when the air supply angle is 45 degrees.
  3. The heating reach distance is defined when the air supply angle is 75 degrees.
  4. Air supply distance can be changed by adjusting the angle of the leaf.

(Detailed technical data under different air supply angle can consult our technical department.)



Product Features



Products Features



1. The inner leaf and outer frame adopt separate structure, in order to easy installation and regulation.



2. It is composed of multilayer con paralleled leaves. The air blowing is flat type and it can make be made to blow out from 1-4 side. Blow out is horizontal, there’s no need to worry about blowing feeling.



3. The diffuser and regulating valve adopts detachable structure, regulating valve for split type, has the advantages offlexible adjustment, good seal, etc.

 700mm Aluminum Adjustable Blade Swirl Air Diffuser



Packaging & Shipping

Package:



700mm Aluminum Adjustable Blade Swirl Air Diffuser





Delivery:







Our Services

We can try our best to provide you the good services as below:

1.Offer the most professional design or detail plan.
2.Expert engineers install for you overseas.
3.Free to amend and change the parts in two years.
4.Free technical guidance from our professional technical team.
5.Provide kinds of certificates.
6.Provide refrigeration system if necessary.

700mm Aluminum Adjustable Blade Swirl Air Diffuser

Company Information

 Company  Overview:

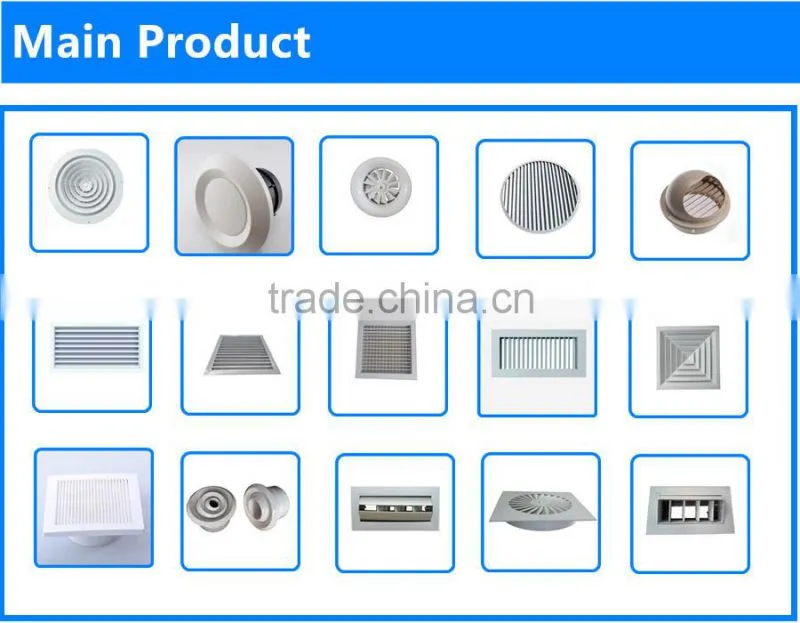

Main Products



1), Food quick freezers ( Net belt freezer, Spiral freezer, Rotatory freezer)

2), Capillary network radiator

3), Central air conditioning terminal equipment ( air damper, fire damper, air grille, ventilation ducts, muffler/silencer )

4), Variable air volume damper, Constant air volume damper

5), Fan coil unit, Air handling unit, water chilling unit, air cooler

6), Refrigeration, Central air conditioning projects- Design, Installation and Construction





Choose Us! Choose the Top Quality:



700mm Aluminum Adjustable Blade Swirl Air Diffuser
