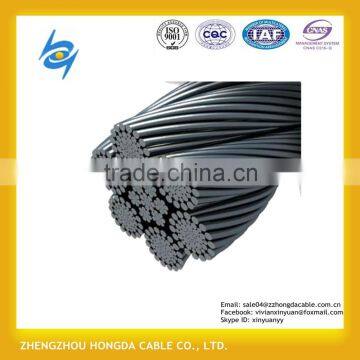

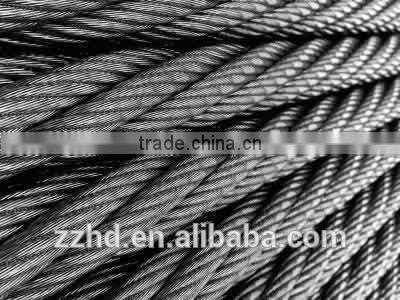

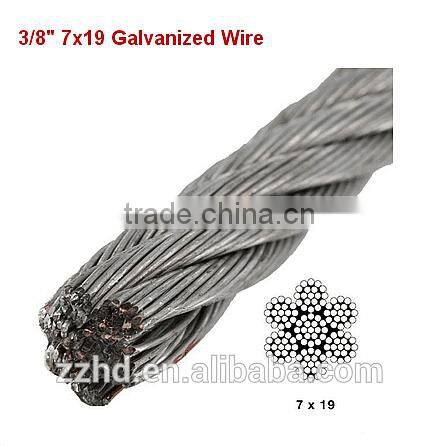

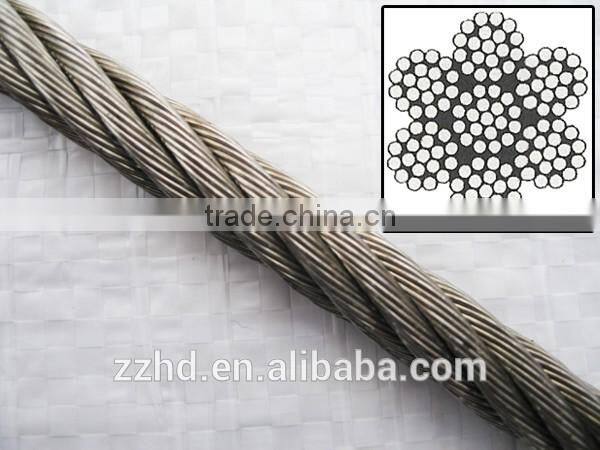

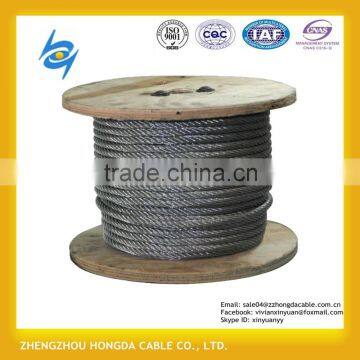

BS 183 Gsw, Guy Wire, Stay Wire Stranded Galvanized Steel Wire
- 160000 Kilometer / Kilometers per Month
- Qingdao / Shanghai / Shenzhen
- T/T Credit Card PayPal
Product Details
Place of Origin: | Henan, China | Brand Name: | Hongda | Model Number: | Stranded Galvanized Steel Wire |
Surface Treatment: | Galvanized | Galvanized Technique: | Electro Galvanized | Type: | Loop Tie Wire |
Function: | Binding Wire | Wire Gauge: | 0.5mm-4.0mm |
Product Description
Hot dipped Electro Galvanized thin iron PVC coated binding wire for Construction

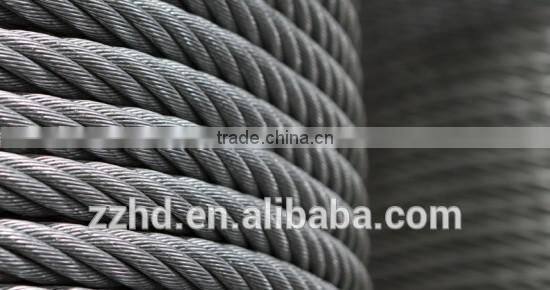

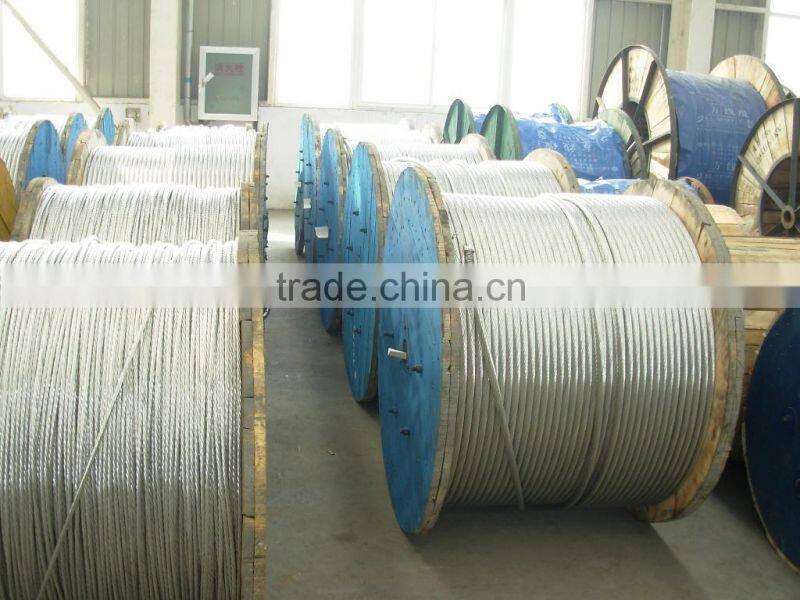

Gsw, Guy Wire, Stay Wire, Steel Wire, Stranded Galvanized Steel Wire (BS 183)
1. Standard
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors
JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays—Bare overhead
2. Application
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.
3. Specification:
See the table below.
Construction Number of wires/wire diameter | Approximate strand diameter | Minimum breaking load of strand | Approx. mass | ||||||
Grade 350 | Grade 480 | Grade 700 | Grade 850 | Grade 1000 | Grade 1150 | Grade 1300 | |||
mm | kN | kN | kN | kN | kN | kN | kN | kg/km | |
3/1.80 | 3.9 | 2.65 | 3.66 | - | - | - | - | - | 60 |
3/2.65 | 5.7 | 5.80 | 7.95 | - | - | - | -- - | - | 130 |
3/3.25 | 7.0 | 8.70 | 11.95 | - | - | - | - | - | 195 |
3/4.00 | 8.6 | 13.20 | 18.10 | -- | - | - | - | - | 295 |
4/1.80 | 4,4 | 3.55 | 4.90 | - | - | - | - | 80 | |
4/2.65 | 6.4 | 7.70 | 10.60 | - | - | - | - | - | 172 |
4/3.25 | 7.9 | 11.60 | 15.90 | - | - | - | - | - | 260 |
4/4.00 | 9.7 | 17.60 | 24.10 | 35.20 | - | - | - | - | 390 |
5/1.50 | 4.1 | 3.10 | 4.24 | 6.18 | - | - | - | - | 69 |
5/1.80 | 4.9 | 4.45 | 6.10 | 8.90 | - | - | - | - | 95 |
5/2.65 | 7.2 | 9.65 | 13.25 | 19.30 | - -- | - | - | 220 | |
5/3.25 | 8.8 | 14.50 | 19.90 | 29.00 | -- | - | - | - | 320 |
5/4.00 | 10.8 | 22.00 | 30.15 | 43.95 | - | - | - | - | 490 |
7/0.56 | 1,7 | 0.60 | 0.83 | 1.20 | - | 1.70 | 1.98 | 2.24 | 14 |
7/0.71 | 2.1 | 0.97 | 1.33 | 1.94 | 2.75 | 3.19 | 3.60 | 28 | |
7/0.85 | 2.6 | 1.39 | 1.90 | 2.80 | - | 3.95 | 4.57 | 5.15 | 31 |
7/0.90 | 2.7 | 1.55 | 2.14 | 3,10 | 4.45 | 5.12 | 5.80 | 35 | |
7/1.00 | 3.0 | 1.92 | 2.64 | 3.85 | - | 5.50 | 6.32 | 7.15 | 43 |
7/1.25 | 3.8 | 3.01 | 4.10 | 6.00 | - | 8.55 | 9.88 | 11.15 | 67 |
7/1.40 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14.00 | 84 |
7/1.60 | 4.8 | 4.90 | 6.75 | 9.85 | 11.95 | 14.10 | 16.20 | 18.30 | 110 |
7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | - | 17.80 | 20.50 | 23.20 | 140 |
7/2.00 | 6.0 | 7.70 | 10.55 | 15.40 | - | 22.00 | 25.30 | 38.60 | 170 |
7/2.36 | 7.1 | 10.70 | 14.70 | 21.40 | - | 30.60 | 3520 | 39.80 | 240 |
7/2.65 | 8.0 | 13.50 | 18.50 | 27.00 | 38.60 | 44.40 | 50.20 | 300 | |
7/3.00 | 9,0 | 17.30 | 23.75 | 34.65 | - | 49.50 | 56.90 | 64.30 | 392 |
7/3.15 | 9.5 | 19.10 | 26.20 | 38.20 | - | 54.55 | 62.75 | 70.90 | 430 |
7/3.25 | 9.8 | 20.30 | 27.85 | 40.65 | - | 58.05 | 66,80 | 75.50 | 460 |
7/3.65 | 11.0 | 25.60 | 35.15 | 51.25 | 73.25 | 84.20 | 95.20 | 570 | |
7/4.00 | 12.0 | 30.90 | 42.20 | 61.60 | - | 88,00 | 101.0 | 114.0 | 690 |
7/4.25 | 12.8 | 34.75 | 47.65 | 69.50 | - | 99.30 | 114.0 | 129.0 | 780 |
7/4.75 | 14.0 | 43.40 | 59.45 | 86,80 | - | 124.0 | 142.7 | 161.3 | 970 |
19/1.00 | 5.0 | 5.22 | 7.16 | 10.45 | - | 14.92 | 17.16 | 19.40 | 120 |
19/1.25 | 6.3 | 8.16 | 11.19 | 16.32 | - | 23.32 | 26.81 | 30.31 | 180 |
19/1.40 | 7.0 | 10.24 | 14.04 | 20.47 | - | 29.25 | 33.64 | 38.02 | 230 |
19/1.60 | 8.0 | 13.37 | 18.34 | 26.75 | - | 38.20 | 43.93 | 49.66 | 300 |
19/2.00 | 10.0 | 20.90 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.60 | 470 |
19/2.50 | 12.5 | 32.65 | 44.80 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 |
19/3.00 | 15.0 | 47.00 | 64.50 | 94.00 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 |
19/3.55 | 17.8 | 65.80 | 90.27 | 131.6 | 159.9 | 188.0 | 216.3 | 244.5 | 1470 |
19/4.00 | 20.0 | 83.55 | 114.6 | 167.1 | 203.0 | 238.7 | 274,6 | 310.4 | 1870 |
19/4.75 | 23.8 | 117.85 | 161.6 | 235.7 | 286.0 | 336.7 | 387.2 | 437.7 | 2630 |
Company Profile
Hongda cable Co., Ltd. is one of the most professional cable & wire producer under modern enterprise system in China, which was founded in 1988, integrating scientific research, development, production and sales. The company mainly produces 1-35 kV power cable, ABC cable, AAC, AAAC, ACSR.
Our advantages
1. With more than 17 years manufacturing experience, our products are strictly in accordance with ISO, CE, UL and BV;
2. Good cost-control system, with highly-competitive prices;
3. Strong and Professional R&D team to meet your specific needs;
4. Fast delivery&reliable products are always the reason why you choose us.
Q 1: I didn’t find the cable I need in this page?
A: Dear Friend, we supply customized service. So, you can contact me directly for the as follows information, I will reply you asap!
Q 2: What’s your Minimum Order Quantity?
A: You are advised to please confirm with us as it is based on the specification of the cables. Normally, it is 100m for small electric wires. 500 to 1000 per drum for power cable.
Q 3: What’s your delivery time?
A: It depends on whether we just has the stock for your type. Or, it takes about 7 - 15 days for normal orders.
Q 4: How can I get a sample to check your quality?
A: After price confirmation, you can require for sample to check our quality. Sample is free, but the freight charge should be paid.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.

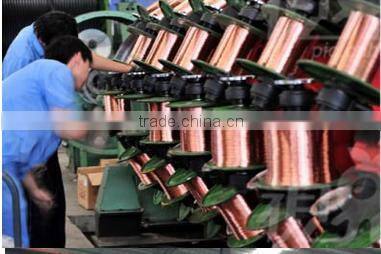

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Attractive design and various styles
5. Free issue:packaging list,invoice,CD installation
6. Powerful technology R&D team
7. Strict quality assurance system and perfect testing means
8. Advanced process equipment
9. Painted with powerful antiseptic Anticorrosion material paints
10. Delivery on time
11. Our roller coaster sales to Middle East,Africa,Russia,Southeast Asia, etc.
12.We have a good reputation in the overseas
