BV / BVR / ZR-BV / ZR-BVR / NH-BV 2 core 4mm LSZH Flame retardant PVC Insulation ground cable 25mm2 thw wire 600V
Flexible & Earth Cables
Flexible Cables:
2 core, 3 core, 4 core, 5 core
♦ Size : We Have different sizes as your requirements
Colors: White
------------------------------------------------------------------------
Earth Cable:
Sizes: We Have different sizes as your requirements
Colors: Yellow Green
------------------------------------------------------------------------
Single Core Wires
Single Core Cable:
♦ Size 1.5mm ,2.5mm,4mm,6mm.10mm.16mm.25mm,
35mm.50mm.75mm,120mm,150mm
Colors: Blue,Yellow,Green,Red,Black,Yellow Green
Electrical Wire Application:electric equipment, household, and electrical appliance
Electrical Wire type: (Electrial wires series include the following) :

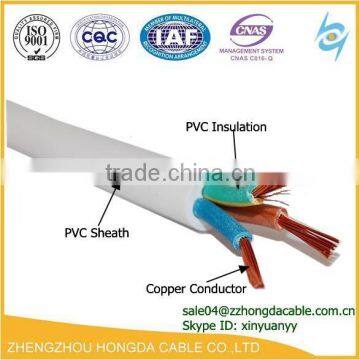

1. Solid copper (or aluminum) conductor, PVC insulated single core electrical wire
2. Stranded copper conductor, PVC insulated single core electrical wire
3.Solid copper conductor, PVCinsulated and PVC sheathed round multi-core electrical wire
4.Solid or stranded copper conductor, PVC insulated and PVC sheathed flat electrical wire(two cores or three cores)
5.Flexible copper conductor, PVC insulated single core electrical wire
6. Flexible copper conductor, PVC insulated twin parallel electrical wire

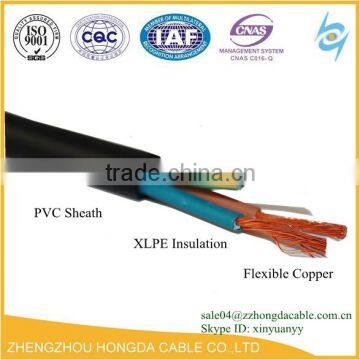

7. Flexible copper conductor, PVC insulated and PVC sheathed multi-core electrial wire
Electric Wire working condition:
Conductor: Solid or strand annealed copper or CCA wire
Insulation: Polyvinyl Chloride (PVC 75° C ), flame retardant, Suitable for use in wet or dry locations
Electric wire standard:
ASTM B3, NTC 359. :Soft copper wire.
ASTM B8, NTC 307. :Concentric Lay Stranded copper conductors.
ASTM B787. 19 :Wire Combination Unilay Stranded Copper conductors for subsequent insulation
UL 1581, NTC-3203.: Reference Standard for Electrical Wires, Cables and Flexible Cords.
UL 83, NTC-1332. :Thermoplastic insulated Wires and Cables.
Electric wire specification
| Item Spec. | AWG SIZE | No./Diameter of conductor (mm) |
Insulation thickness (mm) |
Max.outer diameter (mm) | Ref .Weight(km/kg) |
| THW-16B | 16 | 7/0.49 | 0.76 | 2.8 | 19 |
| THW-14B | 14 | 7/0.62 | 0.76 | 3.4 | 29 |
| THW-12B | 12 | 7/0.78 | 0.76 | 3.9 | 42 |
| THW-10B | 10 | 7/0.98 | 0.76 | 4.5 | 62 |
| THW-8B | 8 | 7/1.23 | 1.14 | 6 | 103 |
| THW-6B | 6 | 7/1.56 | 1.52 | 7.8 | 169 |
| THW-4B | 4 | 7/1.96 | 1.52 | 9 | 249 |
| THW-3B | 3 | 7/2.20 | 1.52 | 9.7 | 306 |
| THW-2B | 2 | 7/2.47 | 1.52 | 10.5 | 376 |
| THW-1B | 1 | 19/1.68 | 2.03 | 12.5 | 487 |
| THW-1/0B | 1/0 | 19/1.89 | 2.03 | 13.6 | 600 |
| THW-2/0B | 2/0 | 19/2.12 | 2.03 | 14.7 | 739 |
| THW-3/0B | 3/0 | 19/2.38 | 2.03 | 16 | 912 |
| THW-4/0B | 4/0 | 19/2.67 | 2.03 | 17.5 | 1130 |
| THW-16A | 16 | 1/1.29 | 0.76 | 2.9 | 19 |
| THW-14A | 14 | 1/1.63 | 0.76 | 3.2 | 27 |
| THW-12A | 12 | 1/2.05 | 0.76 | 3.6 | 39 |
| THW-10A | 10 | 1/2.59 | 0.76 | 4.1 | 59 |
| THW-8A | 8 | 1/3.26 | 1.14 | 5.6 | 98 |
Electric Cable Markings
All 4 core armoured Cable will carry the following items on the surface print:
Manufacturers Name
Electric Cable
Voltage Designation
British Standard Number
Cross Sectional Area
No. of Cores
Type of Cable
Date
NOTE: Items 1 to 4 will also be embossed on the Oversheath of the cable
Some special cable marking accept customized.
Electric Cable Application:
Company & Certification:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
