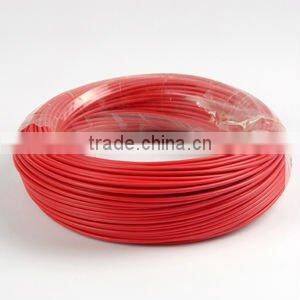

BV/BLV electric Cable with Copper/Aluminum PVC Insulated copper wire
600V 90℃/75℃/60℃ Copper Conductor, PVC Insulated
1. Application
The THHW,THW ,TW cable is suitable for most current wiring solutions for residential,commercial and industrial environments.It is used in service entrance,feeders and branch circuits for permanent installations.
2. Temperature rating not to exceed:
THHW:90℃dry or 75℃wet ,600V
THW:75℃ dry or wet ,600V
TW:60℃ dry or wet ,600V
3. Standard: ASTM:B3,B8 UL:83,1581
4. Construction Conductor
Annealed copper,solid or stranded sizes 14 AWG up to 1000 MCM
5. Installation
For installation in conduits and raceways.Available colors are red,white,blue,green,black,etc.
6. Insulation
Premium grade Polyvinyl Chloride
7. Package: coil,reel,gift box,can do upon request.
8. Technical specification
Size |
No. of |
Nominal Thickness of PVC Insulation |
Approximate Overall |
Approximate Weight of Cable |
|||
AWG |
mm |
mil |
mm |
inch |
kg/km |
lbs/ 1000ft |
|
14 |
solid |
0.76 |
30 |
4.30 |
0.169 |
33 |
22.2 |
12 |
solid |
0.76 |
30 |
4.8 |
0.189 |
47 |
31.6 |
10 |
solid |
0.76 |
30 |
5.4 |
0.213 |
68 |
45.7 |
8 |
solid |
1.14 |
45 |
6.1 |
0.240 |
100 |
67.2 |
6 |
solid |
1.52 |
60 |
7 |
0.276 |
151 |
101.4 |
14 |
7 |
0.76 |
30 |
4.50 |
0.177 |
36 |
24.2 |
12 |
7 |
0.76 |
30 |
5.10 |
0.201 |
50 |
33.6 |
10 |
7 |
0.76 |
30 |
5.80 |
0.228 |
73 |
49.0 |
8 |
7 |
1.14 |
45 |
7.40 |
0.291 |
118 |
79.3 |
6 |
7 |
1.52 |
60 |
8.50 |
0.335 |
174 |
116.9 |
4 |
7 |
1.52 |
60 |
9.80 |
0.386 |
256 |
172.0 |
2 |
7 |
1.52 |
60 |
11.30 |
0.445 |
391 |
262.7 |
1 |
7 |
2.03 |
80 |
13.50 |
0.531 |
505 |
339.3 |
1/0 |
19 |
2.03 |
80 |
14.6 |
0.575 |
622 |
417.9 |
2/0 |
19 |
2.03 |
80 |
15.8 |
0.622 |
767 |
515.3 |
3/0 |
19 |
2.03 |
80 |
17.2 |
0.677 |
950 |
638.2 |
4/0 |
19 |
2.03 |
80 |
18.8 |
0.740 |
1179 |
792.1 |
250 |
37 |
2.41 |
95 |
20.9 |
0.823 |
1404 |
943.2 |
300 |
37 |
2.41 |
95 |
22.4 |
0.882 |
1664 |
1117.9 |
350 |
37 |
2.41 |
95 |
23.8 |
0.937 |
1923 |
1291.9 |
400 |
37 |
2.41 |
95 |
25 |
0.984 |
2180 |
1464.5 |
500 |
37 |
2.41 |
95 |
27.4 |
1.079 |
2694 |
1809.8 |
600 |
61 |
2.79 |
110 |
30.4 |
1.197 |
3241 |
2177.3 |
700 |
61 |
2.79 |
110 |
32.3 |
1.272 |
3751 |
2519.9 |
750 |
61 |
2.79 |
110 |
33.2 |
1.307 |
4007 |
2691.9 |
800 |
61 |
2.79 |
110 |
34.1 |
1.343 |
4260 |
2861.9 |
900 |
61 |
2.79 |
110 |
35.8 |
1.409 |
4769 |
3203.8 |
1000 |
61 |
2.79 |
110 |
37.4 |
1.472 |
5265 |
3537.1 |
Electric Cable Markings
All 4 core armoured Cable will carry the following items on the surface print:
Manufacturers Name
Electric Cable
Voltage Designation
British Standard Number
Cross Sectional Area
No. of Cores
Type of Cable
Date
NOTE: Items 1 to 4 will also be embossed on the Oversheath of the cable
Some special cable marking accept customized.
