Stranded Electrical Wire 26 Awg 14 12 10 8 6 4 2 1 1/0 2/0 3/0 4/0 AWG Wire
US$ 0.1 - 15
MOQ: 5 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
hongda
Model Number:
TW THW cable home construction wiring wire
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flat Cable Factory Trade Manager Recommend Copper Electric Wire CableUS$ 0.5 - 18MOQ: 0 Kilometer -
Pvc Cloth Cover Electric Copper Cable Wire Copper Soild or Stranded AWG PVC WireUS$ 0.1 - 18MOQ: 0 Kilometer
-
Pvc Coated Pure Copper WireUS$ 0.01 - 10MOQ: 1 Kilometer
-
China Popular PVC Insulated 2AWG Copper Wire PriceUS$ 0.01 - 10MOQ: 1 Kilometer
-
Hot Sale Competitive Price PVC Insulated 4mm Copper WireUS$ 0.01 - 10MOQ: 1 Kilometer
Place of Origin
Henan, China
Brand Name
hongda
Model Number
TW THW cable home construction wiring wire
Type
Insulated
Application
Overhead
Conductor Material
Other, Copper, copper
Conductor Type
Other, Stranded, solid or stranded
Insulation Material
PVC
Product Description
Stranded Electrical Wire 26 awg 14 12 10 8 6 4 2 1 1/0 2/0 3/0AWG
| ||||||||||||||||||||||||||||||||||||||||||||||
description

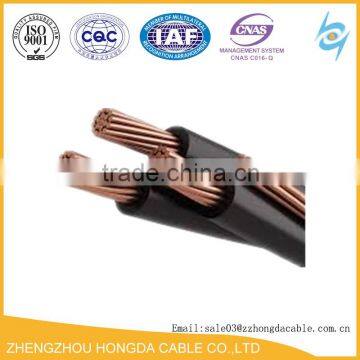

TW/THW is a solid or stranded, soft annealed copper conductor insulated with Polyvinylchloride (PVC). It is UL rated for 600 volts. #10, 12, and 14 AWG are 19 strands, all others are "highly flexible" stranding constructions.
Canadian Standards Association (CSA) listed AWM-IA (Class I Group A) and TEW products are 600 V FT-1 rated. All our standard products are compliant and multi-listed as types TW, THW, MTW, TEW, and the applicable AWM Style Number.
Canadian Standards Association (CSA) listed AWM-IA (Class I Group A) and TEW products are 600 V FT-1 rated. All our standard products are compliant and multi-listed as types TW, THW, MTW, TEW, and the applicable AWM Style Number.
Application
TW/THW is most often used in general purpose wiring circuits, for machine tool wiring and the internal wiring of appliances. Common applications include control panels, wiring for refrigeration equipment, air-conditioning equipment, control wiring of machine tools, automatic washers, etc. It can be used in dry locations up to 90°C (ampacity is limited to 75°C conductor temperature per NFPA 79); or wet locations or other applicable locations when exposed to oil or coolant at temperatures up to 60°C. CSA Type TEW rating permits use in dry locations up to 105°C; or wet locations or other applicable locations when exposed to oil or coolant at temperatures up to 60°C. Our standard circuit size (#10, 12, 14 awg) products are marked Style 1015.
Solid TW/THW is also commonly used in general purpose grounding, such as CATV installations, swimming pool pumps and lighting, telephone and communications, and traffic light signals. Protection from shock or shorts is the key.
The governing standard for application of these products is the National Fire Protection Association (NFPA) Publication #79.
Solid TW/THW is also commonly used in general purpose grounding, such as CATV installations, swimming pool pumps and lighting, telephone and communications, and traffic light signals. Protection from shock or shorts is the key.
The governing standard for application of these products is the National Fire Protection Association (NFPA) Publication #79.
Standards
Our TW/THW is produced to the following specifications and requirements:
- UL
- CSA
- ICEA/NEMA
- NFPA #79
- Caltrans
Available Products
- Sizes #22 through 1/0 AWG
- Solid or Stranded

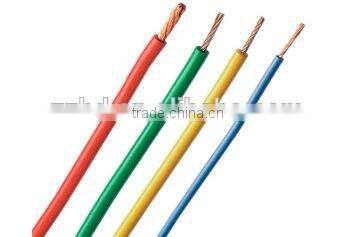

- Up to 12 Color Options
- Standard insulation is a soft, flexible PVC
Custom Options
- Tinned wire available for all sizes
- Striping or Twisting available
- Custom lengths and packaging
- VW-1 available upon request
- Highly Flexible Class Stranding
Common wire
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |

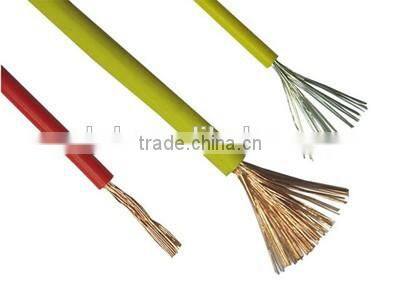

flexible wire
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.52 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1. | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
| 150 | 259/0.85 | 1.8 | 25.0 | 0.124 | 0.0032 | 1510.0 |

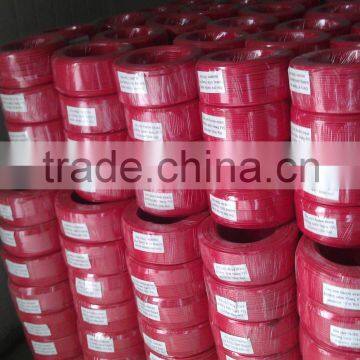

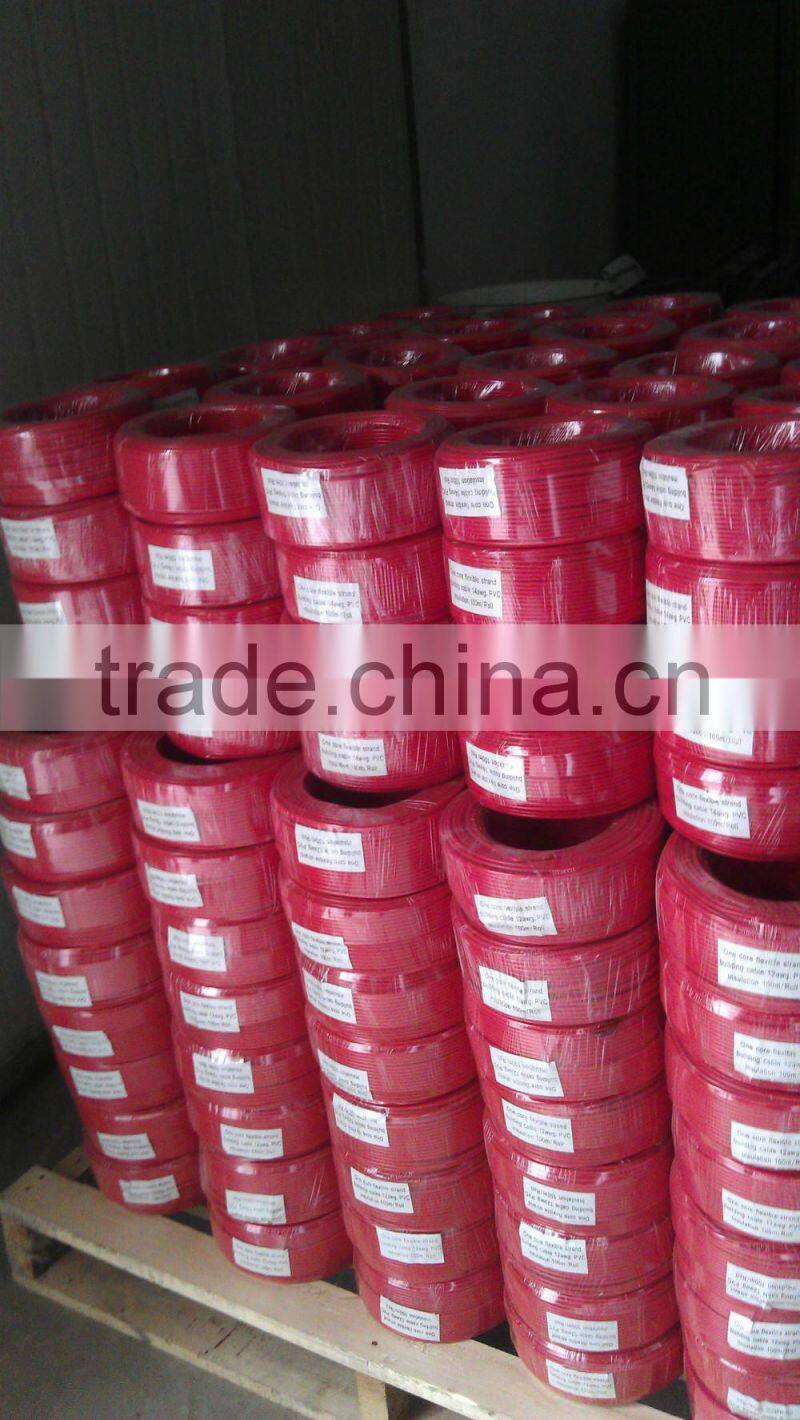

Packaging & Shipping

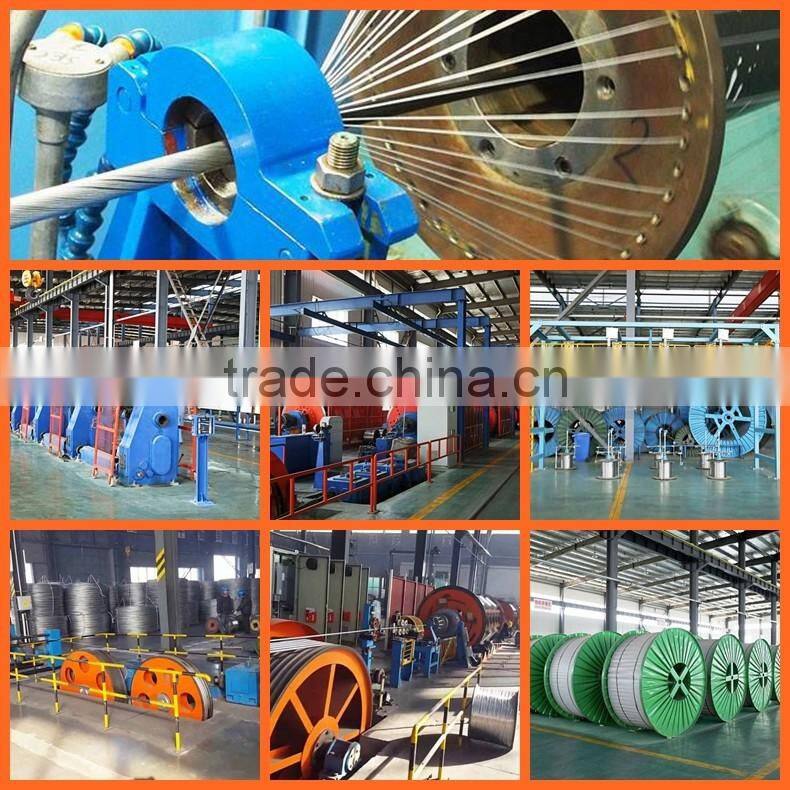

Company Information
Our Services
As you know there are so many cable manufacture, we are one of the biggest manufacture in china-mainland. We will give you a perfect shopping experience . If you need visit our factory , we will meet you at the airport or train station.
Also we can offer other service
Custom Merchandise:we can make cable as your need include the color ,size and so on.we also offer OEM .
Complete Course Tracking:we can offer you the service from the business begin to you get the cable and use it .
Cable sample : we can offer the sample free
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
