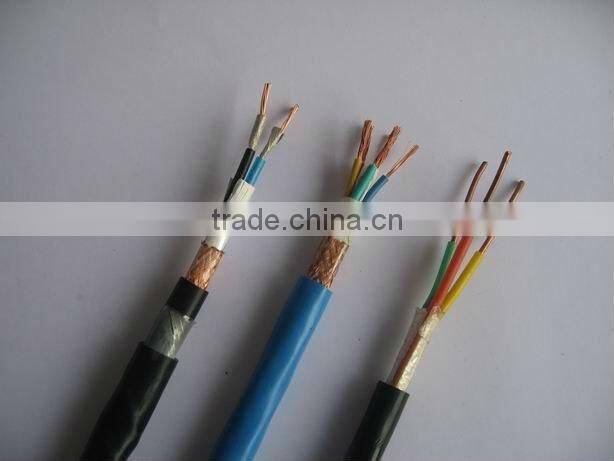

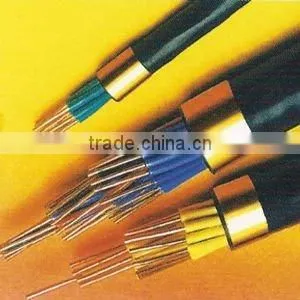

copper plastic insulated control cable
1. Standard: GB9330(IEC227), also can do by standard of ASTM,BS,DIN and AS/NZS or other standards as request.
2.Rated Voltage:450/750V(0.6/1KV) or below
3.Construction:
Conductor:Copper or Aluminium
Insulation: PVC/XLPE /Silicon rubber
Inner sheath:PVC or PE
Armoured:Galvanized steel tape or galvanized steel wire
4.Characters:
a.MAX Long-time operating temperature of PVC insulated control cable is 70°C,XLPE insulated control cable is 90°C
b.Installing temperature of cable should not be less than 0°C
c.Permissible Bending radius of cable: non-armoured cable should not less than 6 times.Armoured or copper tape screen should not be less than 12 times.The soft screen cable should not be less than 6 times.
5. Application:
Applied for connections of electric equipment in controlling,monitoring loop and circuit protecting at Rated AC voltage 450/750V or less than.
Power plants,Factories,Mined indoor,Ports and Petrochemical enterprises,Pipeline etc. Stationary Places.
6.Advantage:
- Excellent electric and mechanical characteristics
- Best Resistance chemical corrosion and heat-aging,environment stress and flame-retardant
- Simple in structure,Convenient to use
copper plastic insulated control cable Type:
Type |
Name |
Core NO. |
Nominal cross Sec.(mm2) |
Rated Voltage(V) |
KVV |
Copper,PVC insulated,PVC sheathed Control cable |
2--61 |
0.75--10 |
450/750 |
KVV20 |
Copper,PVC insulated,PVC sheathed, Bare steel tape armoured Control cable |
2--61 |
0.75--10 |
450/750 |
KVV22 |
Copper,PVC insulated,PVC sheathed, Steel-tape armoured Control cable |
2--61 |
0.75--10 |
450/750 |
KVV30 |
Copper,PVC insulated,PVC sheathed,Bare fine steel wire armoured Control cable |
2--61 |
0.75--10 |
450/750 |
KVV32 |
Copper,PVC insulated,PVC sheathed,Fine steel wire armoured Control cable |
2--61 |
0.75--10 |
450/750 |
KVVP |
Copper,PVC insulated,PVC sheathed copper wire shielded Control cable |
2--61 |
0.75--10 |
450/750 |
KVVP2 |
Copper,PVC insulated,PVC sheathed, Copper tape shielded control cable |
2--61 |
0.75--10 |
450/750 |
KVVP3 |
Copper,PVC insulated,PVC sheathed, ELE shielded Control cable |
2--61 |
0.75--10 |
450/750 |
KVVR |
Copper,PVC insulated,PVC sheathed, Flexible Control cable |
2--61 |
0.75--10 |
450/750 |
KVVRP |
Copper,PVC insulated,PVC sheathed,Copper wire braiding shielded, Flexible Control cable |
2--61 |
0.75--10 |
450/750 |
ZR-KVV |
Copper,PVC insulated,PVC sheathed, Flame-retardant Control cable |
2--61 |
0.75--10 |
450/750 |
NH-KVV |
Copper,PVC insulated,PVC sheathed,Fire-resistant Control cable |
2--61 |
0.75--10 |
450/750 |
XLPE Control cable
Type |
Name |
Core NO. |
Nominal cross Sec.(mm2) |
Rated Voltage(V) |
KYJV |
Copper,XLPE insulated,PVC sheathed Control cable |
2--61 |
0.75--10 |
450/750 |
KYJVP |
Copper,XLPE insulated,PVC sheathed,Shielded Control cable |
2--61 |
0.75--10 |
450/750 |
KYJVP2 |
Copper,XLPE insulated,PVC sheathed,Copper tape shielded Control cable |
2--61 |
0.75--10 |
450/750 |
KYJVP3 |
Copper,XLPE insulated,PVC sheathed,ELE shielded Control cable |
2--61 |
0.75--10 |
450/750 |
KYJVP22 |
Copper,XLPE insulated,PVC sheathed,Steel-tape armoured Control cable |
2--61 |
0.75--10 |
450/750 |
KYJVR |
Copper,XLPE insulated,PVC sheathed,Flexible Control cable |
2--61 |
0.75--10 |
450/750 |
KYJVRP |
Copper,XLPE insulated,PVC sheathed,Braiding shielded,Flexible Control cable |
2--61 |
0.75--10 |
450/750 |
NH-KYJV |
Copper,XLPE insulated,PVC sheathed,Fire-resistant Control cable |
2--61 |
0.75--10 |
450/750 |
