Specifications
450/750V PVC/XLPE insulated woven screened copper core flexible cable
450/750V PVC/XLPE insulated woven screened copper core flexible cable
1. The Control Cable products can be produced according to the standard GB9330-1988, and Control Cables are suitable for the connection of controlling electrical equipments and instrument meters, monitoring and controlling return circuit, protecting and measuring in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.

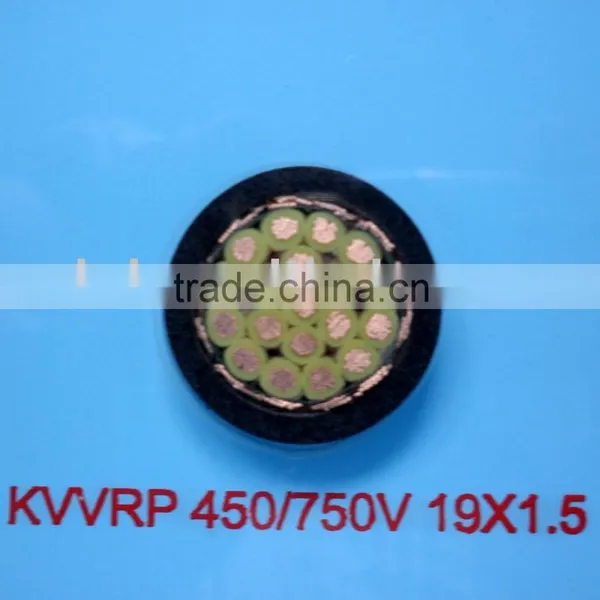

2. Type of Control Cable: KVV Control Cable, KVVP, KVVP2, KVV22, KVVR, KVVRP, KYJV, KYJVP, KYJV22 Control Cable, KYJV22, KYJVP2, KYJVR, KYJVRP Control Cable
Control cables are used in the site of control circuit, monitoring circuit and protective lines that have A.C rated voltage of 600/1000 V and below.
3. Standards
They comply well with IEC 60227, IEC60502, IEC 60332-3, IEC 60754-1 and IEC 61034 etc.
Features
The maximum allowable temperature of conductor is 90 0C for XLPE cable or 700C for PVC cable at normal operation.
The temperature not less than 0 0C when cables laid.
Installation bending radius of cable: 6D for no-armor or with screen layer flexible cable.
12D for armor or copper tape screen cables.
(D=overall diameter of cable)
