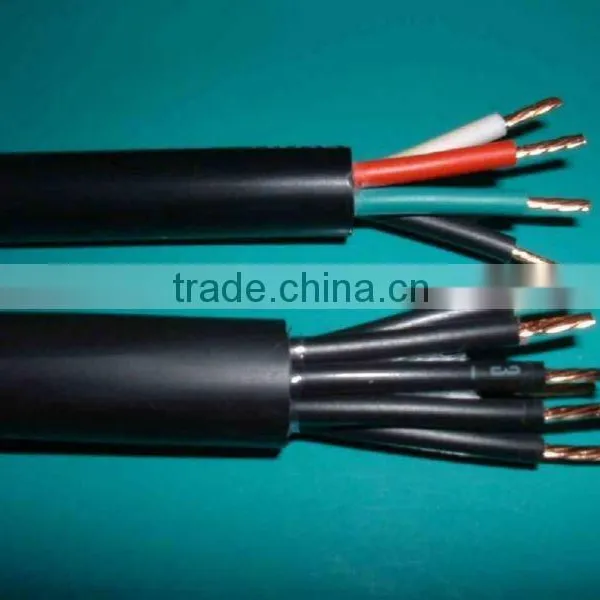

PVC or XLPE Control cable by IEC 60227,450/750V & 0.6/1Kv.
All cable designs covered in this publication generally conform to BS. 5467 or IEC 60502 Part-1 for XLPE and BS 6346 or IEC 60502 Part-1 for PVC insulated cables for working voltages upto 3300 volts.
Wherever required, Hongda can offer cables conforming to other national or international standards or special requirements.
PRODUCT RANGE
1. XLPE Control cables (Armoured/Unarmoured)
Conductor : Copper or Aluminium
Applicable Standards : B.S. 5467, IEC 60502 Part-1, B.S. 7889
Voltage Grade : 600/1000V or 1900/3300 V
Range : 1C x 50 sq. mm to 1C x 1000 sq. mm
Modle: KYJV,KYJVP,KYJVP3, KYJV22,KYJV32
2C x 1.5 sq. mm to 2C x 400 sq. mm
3C x 1.5 sq. mm to 3C x 400 sq. mm
4C x 1.5 sq. mm to 4C x 400 sq. mm
3.5 x 10 sq. mm to 3.5C x 400 sq. mm
2. PVC Control Cables (Armoured/Unarmoured)
Conductor : Copper or Aluminium
Applicable Standard : B.S. 6346, IEC 60502 Part-1
Voltage Grade : 600/1000V or 1900/3300V
Range : 1C x 50 sq. mm to 1C x 1000 sq. mm
Modle: KVV,KVVP,KVVP3, KVV22,KVV32
2C x 1.5 sq. mm to 2C x 400 sq. mm
3C x 1.5 sq. mm to 3C x 400 sq. mm
4C x 1.5 sq. mm to 4C x 400 sq. mm
3.5 x 10 sq. mm to 3.5 x 400 sq. mm
3. Special Cables (FR, FRLS)
HUATAI also manufactures and supplies Cables as per other National or International
Standards, and as per Customer Specifications.
Cable Construction & Manufacturing Process
Conductor : Copper or Aluminium used for the Conductors obtained in the form of rods. The 8.0 mm Copper or 9.5 mm aluminium rods. After testing, rods are drawn into wires of required sizes
Insulation : Cross linked polyethylene compound or PVC is insulated over Conductor by Extrusion process.
The raw materials & thickness of Insulation are maintained under strict Quality Control and conform to B.S. 5467 / IEC 60502 Part-1 or B.S. 6346 / IEC 60502 Part-1. Standards for XLPE & PVC cables respectively.
The Cores of cables are identified either by colour or by numbers as follows:
No. of cores Colour coding
1 Brown or Blue
2 Brown, Blue
3 Brown, Black, Grey
4 Blue, Brown, Black, Grey
5 Blue, Brown, Black, Grey & Y/G
6- 61 By numbers
Laying up : The insulated cores are laid up with a right hand, or alternating left & right hand, direction of lay in the sequence of the core numbers or colours. Where ever necessary non-hygroscopic PP / PVC Fillers & binder tape are used to form a compact and reasonably circular cable.
Bdding : All armoured cables have extruded PVC bedding. The PVC used for bedding is compatible with the temperature of Insulation material.
Armour : Galvanised steel wire. Steel Strip, tape or tinner copper.
Single core cables are armoured with Aluminium or copper wires.
Outersheath : The standard cables are manufactured with Extruded black PVC Type-9 of B.S. 7655 or ST-2 of IEC 60502. Outersheath is embossed or printed with the information required by the related standards.
