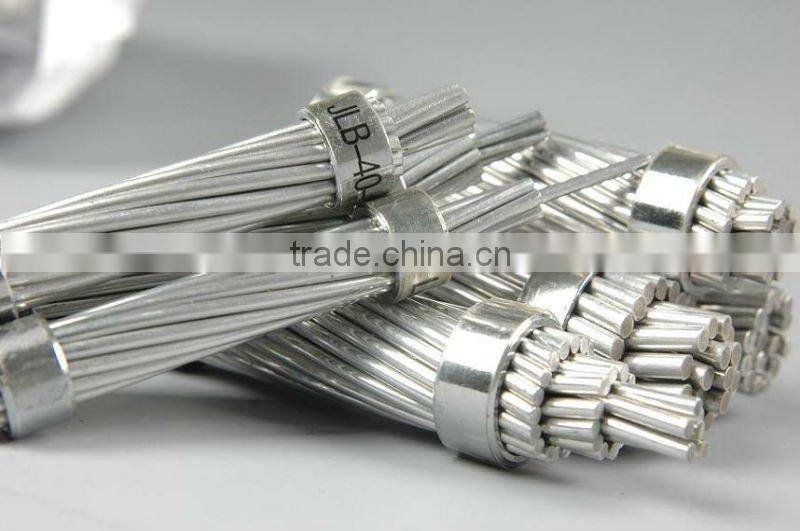

Bare cable AAC Conductor
Application
The conductors are suitable for use in spans on wood poles, transmission towers,and other structures where tensile strength and temperature ratings are not required. Application range from extra high voltage(EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises. AAC(All aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handing during installation and use of simpler fittings. The conductor is corrosion resistant due to its homogeneous construction.
Construction

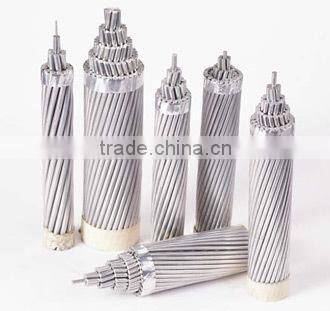

Aluminum 1350 wires are concentrically stranded and wrapped helically around a central wire. Each successive layer has six wires more than the previous underlying layer. Outer layer is right hand lay and reversed in successive layers.
Specification
ASTM B230,B231,B400 StandardCode word |
Size of Conductor |
Stranding and Wire Diameter |
Overall Diameter |
Max.D.C. Resistance at 20°C |
Code word |
Size of Conductor |
Stranding and Wire Diameter |
Overall Diameter |
Max.D.C. Resistance at 20°C |
AWG or MCM |
mm |
mm |
ohm/km |
AWG or MCM |
mm |
mm |
ohm/km |
||
Peachbell |
6 |
7/1.554 |
4.67 |
2.1692 |
Verbena |
700 |
37/3.493 |
24.45 |
0.0813 |
Rose |
4 |
7/1.961 |
5.89 |
1.3624 |
Nasturtium |
715.5 |
61/2.75 |
24.76 |
0.0795 |
Lris |
2 |
7/2.474 |
7.42 |
0.8577 |
Violet |
715.5 |
37/3.533 |
24.74 |
0.0795 |
Pansey |
1 |
7/2.776 |
8.33 |
0.6801 |
Cattail |
750 |
61/2.817 |
25.35 |
0.0759 |
Poppy |
1/0 |
7/3.119 |
9.36 |
0.5390 |
Petunia |
750 |
37/3.617 |
25.32 |
0.0759 |
Aster |
2/0 |
7/3.503 |
10.51 |
0.4276 |
Lilac |
795 |
61/2.90 |
26.11 |
0.0715 |
Phlox |
3/0 |
7/3.932 |
11.80 |
0.3390 |
Arbutus |
795 |
37/3.724 |
26.06 |
0.0715 |
Oxlip |
4/0 |
7/4.417 |
13.26 |
0.2688 |
Snapdragon |
900 |
61/3.086 |
27.78 |
0.0632 |
Valerian |
250 |
19/2.913 |
14.57 |
0.2275 |
Cockscomb |
900 |
37/3.962 |
27.73 |
0.0632 |
Sneezewort |
250 |
7/4.80 |
14.4 |
0.2275 |
Goldenrod |
954 |
61/3.177 |
28.6 |
0.0596 |
Laurel |
266.8 |
19/3.01 |
15.05 |
0.2133 |
Magnolia |
954 |
37/4.079 |
28.55 |
0.0596 |
Daisy |
266.8 |
7/4.96 |
14.9 |
0.2133 |
Camellia |
1000 |
61/3.251 |
29.36 |
0.0569 |
Peony |
300 |
19/3.193 |
15.97 |
0.1896 |
Hawkweed |
1000 |
37/4.176 |
29.23 |
0.0569 |
Tulip |
336.4 |
19/3.381 |
16.91 |
0.1691 |
Larkspur |
1033.5 |
61/3.307 |
29.76 |
0.0550 |
Daffodil |
350 |
19/3.447 |
17.24 |
0.1625 |
Bluebell |
1033.5 |
37/4.244 |
29.72 |
0.0550 |
Canna |
397.5 |
19/3.673 |
18.36 |
0.1431 |
Marigold |
1113 |
61/3.432 |
30.89 |
0.0511 |
Goldentuft |
450 |
19/3.909 |
19.55 |
0.1264 |
Hawthorn |
1192.5 |
61/3.551 |
31.05 |
0.0477 |
Syringa |
477 |
37/2.882 |
20.19 |
0.1193 |
Narcissus |
1272 |
61/3.668 |
33.02 |
0.0477 |
Cosmos |
477 |
19/4.023 |
20.12 |
0.1193 |
Columbine |
1351.5 |
61/3.78 |
34.01 |
0.0421 |
Hyacinth |
500 |
37/2.951 |
20.65 |
0.1138 |
Carnation |
1431 |
61/3.89 |
35.03 |
0.0398 |
Zinnia |
500 |
19/4.12 |
20.6 |
0.1138 |
Gladiolus |
1510.5 |
61/4.00 |
35.09 |
0.0376 |
Dahlia |
556.5 |
19/4.346 |
21.73 |
0.1022 |
Coreopsis |
1590 |
61/4.099 |
36.51 |
0.03568 |
Mistletoe |
556.5 |
37/3.114 |
21.79 |
0.1022 |
Jessamine |
1750 |
61/4.302 |
38.72 |
0.0325 |
Meadowsweet |
600 |
37/3.233 |
22.63 |
0.0948 |
Cowslip |
2000 |
91/3.76 |
41.40 |
0.02866 |
Orchid |
636 |
37/3.33 |
23.31 |
0.0894 |
Lupine |
2500 |
91/4.21 |
46.30 |
0.0230 |
Heuchera |
650 |
37/3.366 |
23.56 |
0.0875 |
Trillium |
3000 |
127/3.90 |
50.75 |
0.0192 |
Flag |
700 |
61/2.72 |
24.48 |
0.0813 |
Bluebonnet |
3500 |
127/4.21 |
54.80 |
0.01653 |
