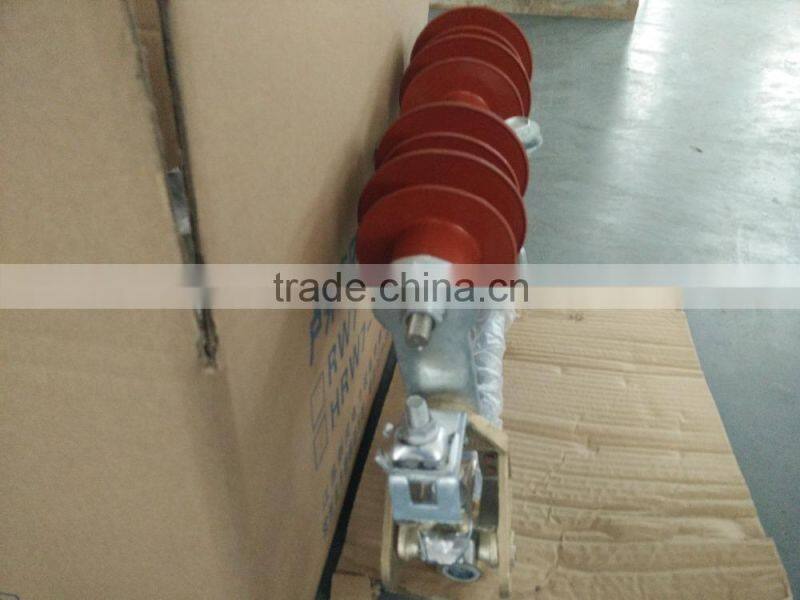

Help Center10KV 100A 200A Porcelain Cut Out Fuse FOR PROTECTION
Related Products
Product performance
Outdoors high voltage expulsion fuse protector is mainly used for short circuit overload protection on the power lines and distribution transformer of 10kv~35kv, 50Hz,60Hz power system.
Features of product
1.The product is composed of insulator, up and down static contacts and fuse.
2.These are made by silicone rubber formed in integral mould, featured with good water and dirt resistancer.
3.The mounting plate is long and can be conveniently installed in the line, without other connecting devices.
4.The product is featured with compact structure, light weight, strong, convenient for transportation and installation.
The parameters of fuse
|
Type |
System nominal voltage |
Highest working voltage |
Rated voltage |
Rated breaking current |
1min power frequency dry/wet withstand voltage |
HPRW10-12/100 |
10 |
11.5 |
100 |
6.3-12.5 |
42/34 |
HPRW10-12F/100 |
10 |
11.5 |
100 |
6.3-12.5 |
42/34 |
HPRW10-12/200 |
10 |
11.5 |
200 |
6.3-12.5 |
42/34 |
HPRW10-12F/200 |
10 |
11.5 |
200 |
6.3-12.5 |
42/34 |
HPRW5-24F/100(200) |
20 |
23 |
100(200) |
6.3-12.5 |
65/55 |
PRW5-24F/100(200) |
20 |
23 |
100(200) |
6.3-12.5 |
65/55 |
RW7-12/100 |
10 |
15 |
100 |
6.3-12.5 |
42/34 |

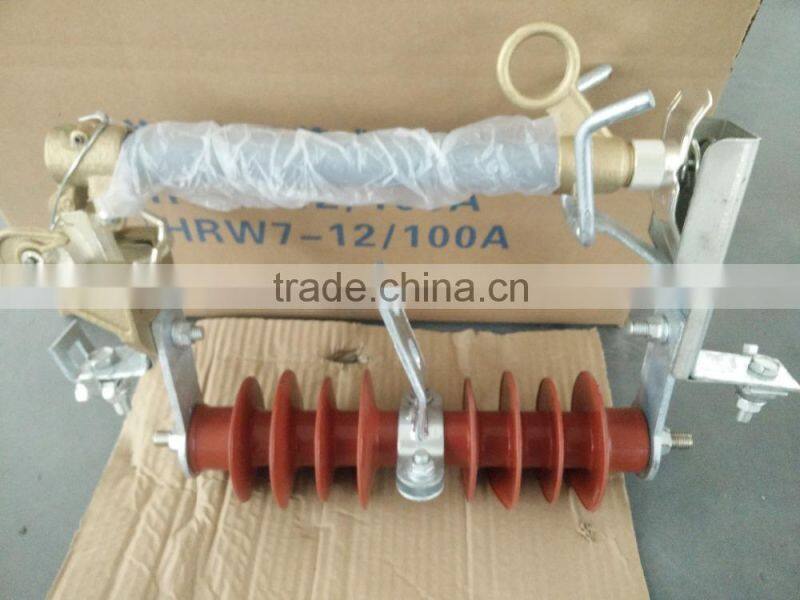

HRW7-12/100 |
10 |
11.5 |
100 |
6.3-12.5 |
42/34 |
Jiangsu Xinmin Electric Power Equipment Co.,Ltd, founded in 1997, is a Sino-foreign joint venture to make products on high&low voltage power system and to improve electric energy quality of power grid and energy-saving.
Main products are:0.22KV~220KV series complex metal oxide surge arresters and porcelain oxide metal surge arresters,10KV series fuse protectors,10KV series outdoor single pole isolating switch, insulated protective enclosures, metal oxide varistor block,reactive compensation cabinets etc. The products are qualified in the inspection by State High-Voltage Electrical Apparatus Quality Supervision Inspection Center and Electric Power Equipment Quality Inspection Test Center. The performance of the products conforms or exceeds national standard.

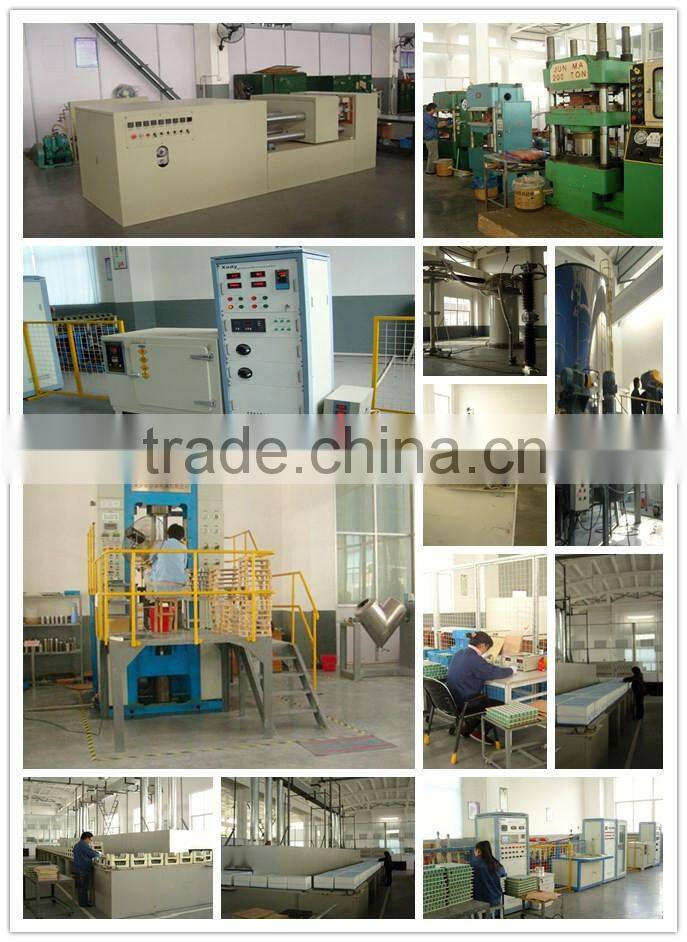

WORKSHOP

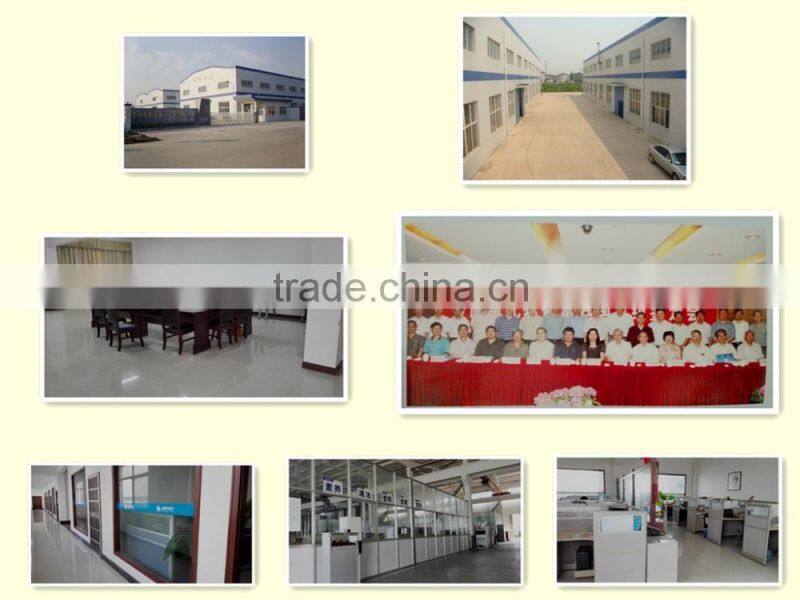

COMPANY VIEW
CERTIFICATE
