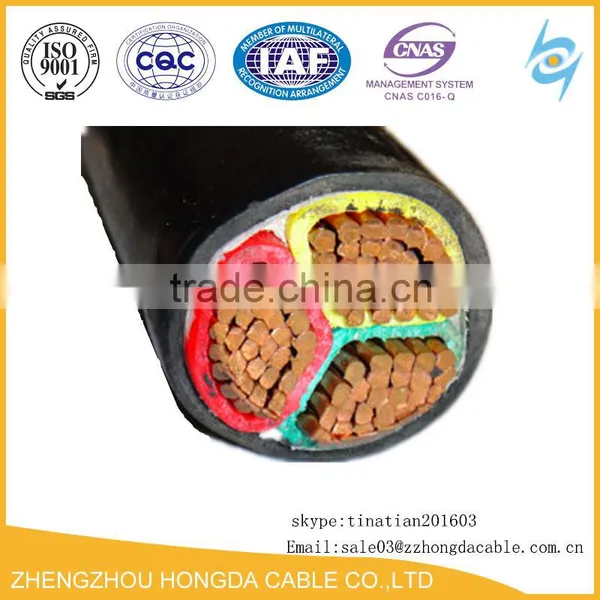

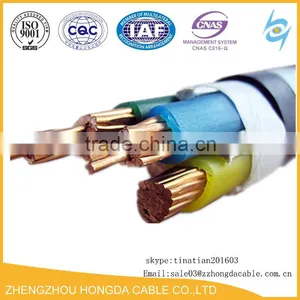

Help Center3x16mm2 Copper Core PVC Insulation PVC Cover Underground Electrical Cable
Related Products
-
High Quality Aluminum/Copper Conductor Electric Wire Cable Price 25mm 0.6/1KVUS$ 0.1 - 100MOQ: 1 Kilometer -
1.8/3kV CU/XLPE/PVC Copper Conductor XLPE Cable Price 10mm 16mm 630mmUS$ 0.8 - 100MOQ: 1 Kilometer
-
YJV22 High Quality Copper Core XLPE Insulated PVC Sheathed Steel Tape Armoured Power CableUS$ 0.1 - 18MOQ: 0 Meter
-
Yjv 0.6/1kv Xlpe Insulated Swa Pvc 4x240mm2 Power Cable With Copper Conductor Supplier's ChoiceUS$ 0.1 - 18MOQ: 0 Meter
-
VV High Quality Multi-Core Low Voltage PVC Insulated PVC Sheathed Power CableUS$ 0.1 - 18MOQ: 0 Meter
Advantages:
1. IEC, ASTM, DIN, BS standard
2. ISO9002,ISO14000:2004 ,CCC,CB,ROHS,MA,CRCC,TUV ,BAYER,CURRENTA certification
3.Professional QC inspection
4.Purity raw material,99.99% T2
5.Response within 12 hours
6.Free Sample
Applications:
PVC insulation electric power cable has excellent electrical properties and chemical stability.With simple structure and easy to use,
it is suitable for fixed laying AC 50HZ,rated voltage 1kV and below in transmission and distribution lines.Five-core power cable is
needed to adapt to the development of distribution system and safety performance,the neutral wire in low voltage distribution
systems with the zero line separating the system to run more stable,and ensure the safety of staff.
Standards:
IEC 60502, IEC 60228, IEC 60332, GB/T 12706.1-2008
Using Features:
The long-term working temperature of cable conductor should be not more than 70°C.
While short-circuit the highest working temperature of cable conductor should be not more than 160°C(5 seconds maximum duration);
The minimum bending radius for laying cable(D is diameter):single core unarmoured cable shoule be 20D,multi-core unarmoured cable
shoule be 15D,single core armoured cable shoule be 15D,multi-core armoured cable should be 12D;
The environment temperature for laying cable should be not less than 0°C.
Product Description :
| Type | Description | Application | |
| Cu | Al | ||
| VV | VLV | For laying indoor,in tunnels and in ducts,unable to bear external mechanical forces | Copper-core(aluminum core)PVC insulation and PE sheath power cable |
| VY | VLY | ||
| VV22 | VLV22 | Copper-core(aluminum core)PVC insulation steel tape armoured PE sheath power cable | For laying indoor,in tunnels and in ducts,can able to bear external mechanical forces |
| VY23 | VLY23 | ||
| VV32 | VLV32 | Copper-core(aluminum core)PVC insulation steel wire armoured PVC sheath power cable | Copper-core(aluminum core)PVC insulation steel wire armoured PE sheath power cable |
| VV32 | VLV32 | Copper-core(aluminum core)PVC insulation thick wire armoured PVC sheath power cable | For laying in water or ground along route with large difference of level,can able to bear external mechanical forces |
| VY33 | VLY33 | ||
| VV42 | VLV42 | ||
| VY43 | VLY43 | Copper-core(aluminum core)PVC insulation thick wire armoured PE sheath power cable | |
Notes:1.Flexible power cable is available.Plus "R" after sheath material types.For example,"VVR" refers to cooper core PVC insulation PVC sheath flexible power cable;
2.Hear-resistant 90°C and 105°C power cable are available,Plus "-90" "-105" after the type.For example,VV-105 refers to copper core heat-resistant 105°C PVC insulation and sheath power cable,and the highest temperature of cable conductor is 105°C.
3.Ratproof,termite-proof,moisture-proof and other special requiremments cables are available.
4.The single core armoured cable are used for DC system only.As for AC system,non-megnetical materials shoule be used,its corresponding code is 62,63,72,73;
5.It is not recommended AL-core fire retardent cable.When there is a fire,flame temperatures may reach 700°C above due to the meilting point of aluminium is only 660°C,the conductor may be fused;
6.Flame retaradant/fire resistant power cable are available:Representation method of flame retardant grade is the "Z" followed by"A","B","C",such as the "ZA","ZB","ZC".When "ZR" expressed,generally considered to be "C" class of flame retardant.Flame retardant level representation is "ZN" middle "A","B","C",such as the "ZA","ZB","ZC".While using "NH" expressed,it generally considered to be "ZCN".For example;
| Type | Description | Equal to |
| ZC-VV | Copper-core PVC insulation and PVC sheath flame retaradant C type power cable | ZR-VV |
| ZCN-VV | Copper-core PVC insulation and PVC sheath flame retaradant C type fire resistant power cable | NH-VV |
| Type | Description | Application | |
| Cu | Al | ||
| YJV | YJLV | Copper-core(aluminum core)XLPE insulation and PVC sheath power cable | For laying indoor,in tunnels and in ducts,unable to bear external mechanical forces |
| YJY | YJLY | Copper-core(aluminum core)XLPE insulation and PE sheath power cable | |
| YJV22 | YJLV22 | Copper-core(aluminum core)XLPE insulation steel tape armoured PVC sheath power cable | For laying indoor,in tunnels and in ducts,can able to bear external mechanical forces |
| YJV23 | YJLV23 | Copper-core(aluminum core)XLPE insulation steel tape armoured PE sheath power cable | |
| YJV32 | YJLV32 | Copper-core(aluminum core)XLPE insulation steel wire armoured PVC sheath power cable | For laying in water or ground along route with large difference of level,can able to bear external mechanical forces |
| YJV33 | YJLV33 | Copper-core(aluminum core)XLPE insulation steel wire armoured PE sheath power cable | |
| YJV42 | YJLV42 | Copper-core(aluminum core)XLPE insulation thick wire armoured PVC sheath power cable | |
| YJV43 | YJLV43 | Copper-core(aluminum core)XLPE insulation thick wire armoured PE sheath power cable | |
Notes:1.Flexible power cable is available.Plus "R" after sheath material types.For example,"VVR" refers to cooper core PVC insulation PVC sheath flexible power cable;
2.Hear-resistant 90°C and 105°C power cable are available,Plus "-90" "-105" after the type.For example,VV-105 refers to copper core heat-resistant 105°C PVC insulation and sheath power cable,and the highest temperature of cable conductor is 105°C.
3.Ratproof,termite-proof,moisture-proof and other special requiremments cables are available.
4.The single core armoured cable are used for DC system only.As for AC system,non-megnetical materials shoule be used,its corresponding code is 62,63,72,73;
5.It is not recommended AL-core fire retardent cable.When there is a fire,flame temperatures may reach 700°C above due to the meilting point of aluminium is only 660°C,the conductor may be fused;
6.Flame retaradant/fire resistant power cable are available:Representation method of flame retardant grade is the "Z" followed by"A","B","C",such as the "ZA","ZB","ZC".When "ZR" expressed,generally considered to be "C" class of flame retardant.Flame retardant level representation is "ZN" middle "A","B","C",such as the "ZA","ZB","ZC".While using "NH" expressed,it generally considered to be "ZCN".For example;
| Type | Description | Equal to | |
| ZC-YJV | Copper-core XLPE insulation and PVC sheath flame retaradant C type power cable | ZR-YJV | |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
