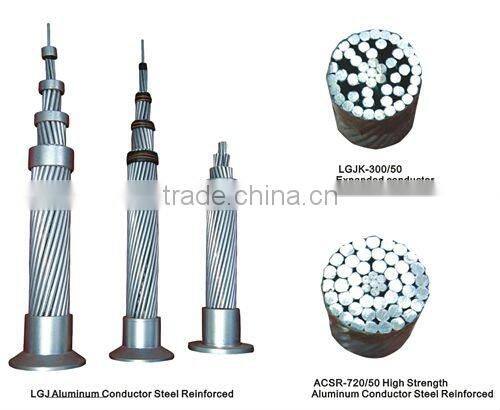

overhead transmission ACSR cable
We mainly aim at managing insulated overhead transmission lines ACSR cables, stranded aluminum ACSR cable.
overhead transmission ACSR cable
standard :
The wires and cables are produced conforming to GB standard and also can be produced according to OEM requirements and others standars, Such as BS Standard, DIN standard, ASTM standard, ETC.
Aluminum wire rod steel-reinforced cable (ACSR cable) is a specific type of high-capacity, high-strength stranded cable typically used in overhead power lines. The outer strands are aluminum, chosen for its excellent conductivity, low weight and low cost. The center strand is of steel for the strength required to support the weight without stretching the aluminum due to its ductility. This gives the cable an overall high tensile strength.
These products meet standards of GB, IEC, BS, DIN/VDE, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce according to customers' requirements and specifications.
1. Applications
AAAC,AAC,ACSR,AACSR,ACSR/AW Conductors have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
2. Products range
1)AAAC(All Aluminum Alloy Conductors)
2)ACSR(Aluminum Conductor Steel Reinforced)
3)AAC(All Aluminum Conductors)
4)AACSR(Aluminum Alloy Conductors Steel Reinforced)
5)ACSR/AW(Aluminum Conductor Aluminum Clad Steel Reinforced)
3.TECHNICAL DATA
| National cross-section Al/St mm2 | n/dia n/mm | Cross-section mm2 | O.D. mm | DC resistance not more than Ω/km | Break load N | Weight kg/km | |||
| Al | St | Al | St | Total | |||||
| 10/2 | 6/1.50 | 1/1.50 | 10.6 | 1.77 | 12.37 | 4.5 | 2.706 | 4120 | 42.9 |
| 16/3 | 6/1.85 | 1/1.85 | 16.13 | 2.69 | 18.82 | 5.55 | 1.779 | 6130 | 65.2 |
| 25/4 | 6/2.32 | 1/2.32 | 25.36 | 4.23 | 29.59 | 6.96 | 1.131 | 9290 | 102.6 |
| 35/6 | 6/2.72 | 1/2.72 | 34.86 | 5.81 | 40.67 | 8.16 | 0.823 | 12630 | 141 |
| 50/8 | 6/3.20 | 1/3.20 | 48.25 | 8.04 | 56.29 | 9.6 | 0.5946 | 16870 | 195.1 |
| 50/30 | 12/2.32 | 7/2.32 | 50.73 | 29.59 | 80.32 | 11.6 | 0.5692 | 42620 | 372 |
| 70/10 | 6/3.80 | 1/3.80 | 68.05 | 11.34 | 79.39 | 11.4 | 0.4217 | 23390 | 275.2 |
| 70/40 | 12/2.72 | 7/2.72 | 69.73 | 40.67 | 110.4 | 13.6 | 0.4141 | 58300 | 511.3 |
| 95/15 | 26/2.15 | 7/1.67 | 94.39 | 15.33 | 109.72 | 13.61 | 0.3058 | 35000 | 380.8 |
| 95/20 | 7/4.16 | 7/1.85 | 95.14 | 18.82 | 113.96 | 13.87 | 0.3019 | 37200 | 408.9 |
| 95/55 | 12/3.20 | 7/3.2 | 96.51 | 56.3 | 152.81 | 16 | 0.2992 | 78110 | 707.7 |
| 120/7 | 18/2.90 | 1/2.9 | 118.88 | 6.61 | 125.5 | 14.5 | 0.2422 | 27570 | 379 |
| 120/20 | 26/2.38 | 7/1.85 | 115.67 | 18.82 | 134.49 | 15.07 | 0.2496 | 41000 | 466.8 |
| 120/25 | 7/4.72 | 7/2.1 | 122.48 | 24.25 | 146.73 | 15.74 | 0.2345 | 47880 | 526.6 |
| …up to | |||||||||
| 800/100 | 54/4.33 | 19.26 | 795.17 | 100.88 | 896.05 | 38.98 | 0.03635 | 241100 | 2991 |
