Specifications

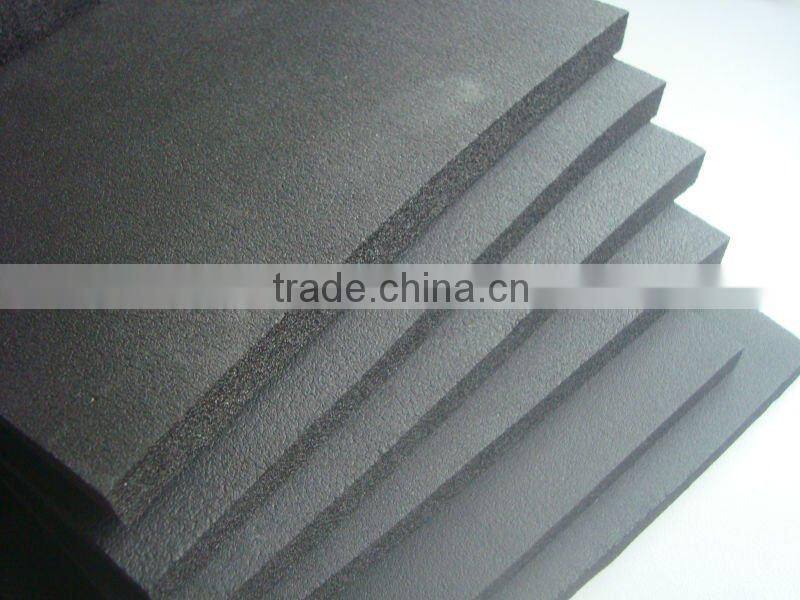

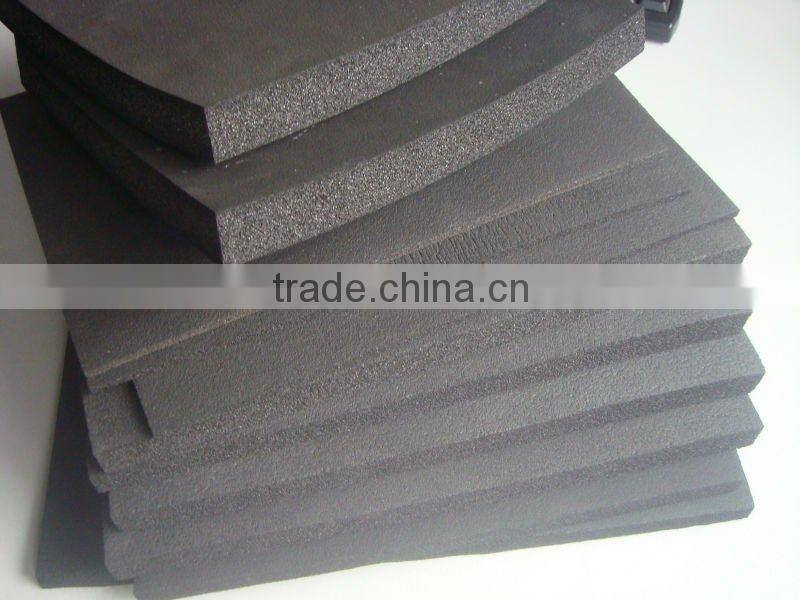

NBR PVC Black Heat Insulation Foam Board for Construction1.OEM/ODM acceptable
2.Fire grade:B1
3.ROHS, ISO9001
NBR/PVC Black Heat Insulation Foam Board for Construction | ||
| ||
Characteristics of our insulation board: | ||
1. Closed-cell Structure. | ||
2. Low and Stable Thermal Conductivity. | ||
3. Low Water Absorption Rate. | ||
4. Good Fireproof and Soundproof Performance. | ||
5. Good Aging Resistance Performance. | ||
6. Simple and Easy Installation. | ||
7. Environmental friendly & Improved IAQ. | ||
Application of insulation board: | ||
Insulation sheet is used to retard heat transmission and control condensation from chilled-water and refrigeration systems. It also has good performance in sound/shock absorption, have low thermal conductivity, so they're widely used in construction, decoration, ceiling, etc. | ||
Insulation board is ideal for applications in: | ||
Ductwork | ||
Dual temperature and low pressure steam lines | ||
Construction | ||
Ceiling decoration | ||
| ||
Technical specifications: | ||
Property |
Unit |
Value |
Density range |
kg/m³ |
50~100 |
Flammability |
- |
B1 |
Oxygen index |
% |
≥33 |
Thermal conductivity |
- |
- |
|
Average tempreture -20°C 0°C 40°C |
w(m.k) |
≤0.032 ≤0.035 ≤0.037 |
Moisture resistance factor |
- |
≥5x10³ |
Water absorption ratio in vacuum |
% |
≤10 |
|
Dimension stability 105°C ±3°C, 7d |
- |
≤10 |
|
Ozone resistance 200h |
% |
Good, not cracking |
|
Compress resilience ratio Compression ratio 50% Compression time 72h |
% |
≥70 |
Aging resistance |
- |
150 hours, slight wrinkles, no cracks, holes or distortion |
Dimensions |
- |
Pipes/tubes are in 1.83 mtr or 1.85 mtr length Sheet in rolls 1 mtr or 2 mtr width |
