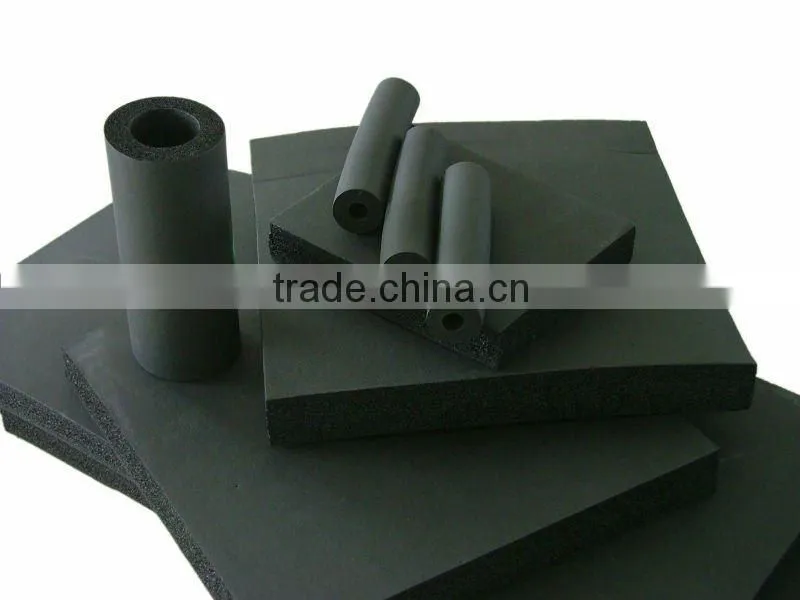

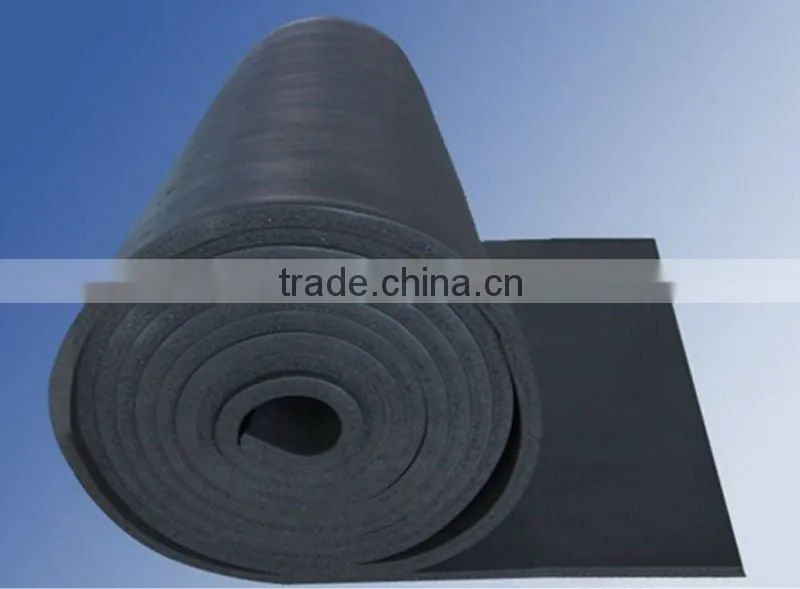

NBR/PVC 6mm Sound Rubber Foam Insulation Sheet

Name: NBR/PVC 6mm Sound Rubber Foam Insulation Sheet
Brand: Insoflex
SKU: 113533775
Availability: InStock

US$ 15 - 80 MOQ: 100 Rolls

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Insoflex

Model Number:

S-053

Kunshan Zhongya Insulation Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Insoflex

Model Number S-053

Material Other, NBR/PVC, NBR and PVC

Thickness 3mm-50mm, 6-50mm

Size 1m-1.2m width

Specifications

NBR/PVC 6mm Sound Insulation Foam Sheet
1.Apply in construction,buildings,decoration
2.Flammability Class O&1
3.ROHS&REACH

NBR/PVC 6mm Sound Insulation Foam Sheet:

Characteristics of sound insulation:
1. Closed-cell Structure.
2. Low Heating Conductivity.
3. Low Water Absorption Rate.
4. Good Fireproof and Soundproof Performance.
5. Good Aging Resistance Performance.
6. Simple and Easy Installation.

Application of sound insulation:
Be used to retard heat transmission and control condensation from chilled-water and refrigeration systems. It also efficiently reduces heat transfer for hot-water plumbing and liquid-heating and dual-temperature piping
It is ideal for applications in:
Ductwork
Dual temperature and low pressure steam lines
Process piping
Air-conditioner, including hot gas piping

Technical specifications:
Property	Unit	Value
Density range	kg/m³	50~100
Flammability	-	B1
Oxygen index	%	≥33
Thermal conductivity	-	-
Average tempreture -20°C 0°C 40°C	w(m.k)	≤0.032 ≤0.035 ≤0.037
Moisture resistance factor	-	≥5x10³
Water absorption ratio in vacuum	%	≤10
Dimension stability 105°C ±3°C, 7d	-	≤10
Ozone resistance 200h	%	Good, not cracking
Compress resilience ratio Compression ratio 50% Compression time 72h	%	≥70
Aging resistance	-	150 hours, slight wrinkles, no cracks, holes or distortion
Dimensions	-	Pipes/tubes are in 1.83 mtr or 1.85 mtr length Sheet in rolls 1 mtr or 2 mtr width
