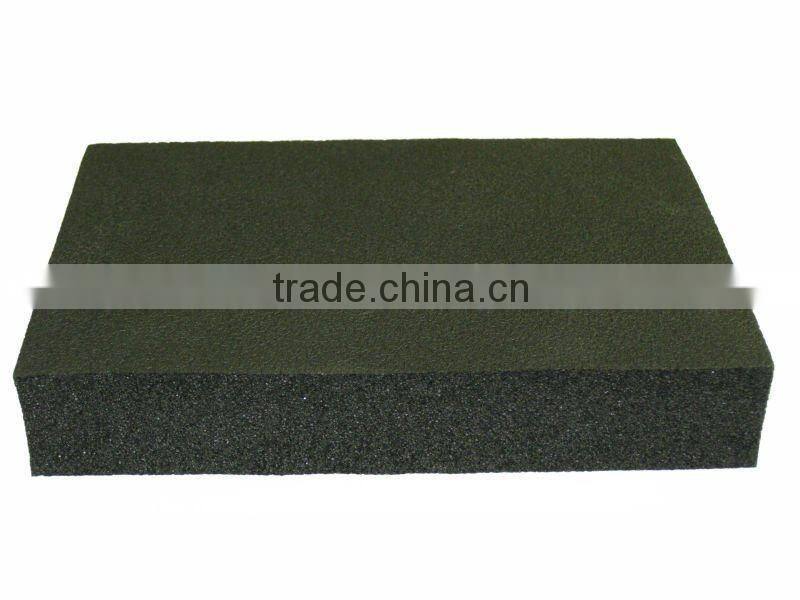

NBR Insulation 6mm Closed Cell Rubber Foam Sheet

Name: NBR Insulation 6mm Closed Cell Rubber Foam Sheet
Brand: zhongya
SKU: 113533697
Availability: InStock

US$ 0.5 - 10 MOQ: 100 Rolls

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

zhongya

Model Number:

S-003

Kunshan Zhongya Insulation Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name zhongya

Model Number S-003

Specifications

NBR insulation6mm closed cell rubber foam sheet
1Apply in construction,building
2SGS,ISO
3Closed-cell structure
4Fire safty

NBR insulation 6mm closed cell rubber foam sheet

Roof insulation characteristics:
1. Closed-cell Structure.
2. Low and Stable Thermal Conductivity.
3. Low Water Absorption Rate.
4. Good Fireproof and Soundproof Performance.
5. Good Aging Resistance Performance.
6. Simple and Easy Installation.
7. Environmental friendly & Improved IAQ.

Roof insulation application:
Be used to retard heat transmission and control condensation from chilled-water and refrigeration systems. It also efficiently reduces heat transfer for hot-water plumbing and liquid-heating and dual-temperature piping
It is ideal for applications in:
Ductwork
Dual temperature and low pressure steam lines
Process piping
Air-conditioner, including hot gas piping

Technical specifications:
Property	Unit	Value
Density range	kg/m³	50~100
Flammability	-	B1
Oxygen index	%	≥33
Thermal conductivity	-	-
Average tempreture -20°C 0°C 40°C	w(m.k)	≤0.032 ≤0.035 ≤0.037
Moisture resistance factor	-	≥5x10³
Water absorption ratio in vacuum	%	≤10
Dimension stability 105°C ±3°C, 7d	-	≤10
Ozone resistance 200h	%	Good, not cracking
Compress resilience ratio Compression ratio 50% Compression time 72h	%	≥70
Aging resistance	-	150 hours, slight wrinkles, no cracks, holes or distortion
Dimensions	-	Pipes/tubes are in 1.83 mtr or 1.85 mtr length Sheet in rolls 1 mtr or 2 mtr width
