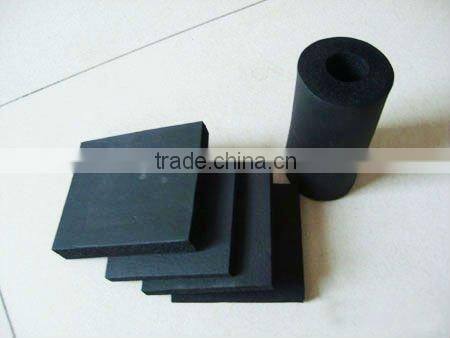

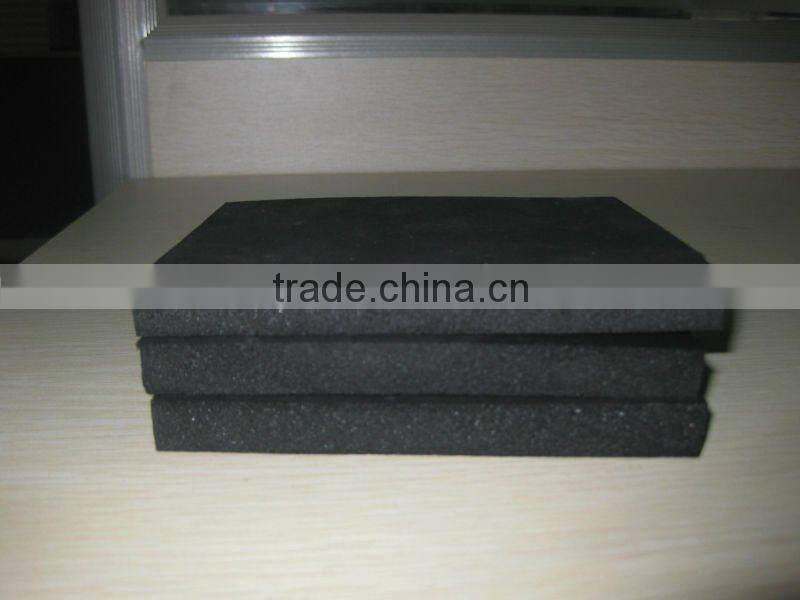

rubber foam insulation sheets (SGS approval)

 Foam insulation panels for adiabatic

Characteristics:

1. Closed-cell Structure.

2. Low Heating Conductivity.

3. Low Water Absorption Rate.

4. Good Fireproof and Soundproof Performance.

5. Good Aging Resistance Performance.

6. Simple and Easy Installation.

Application:

Be used to retard heat transmission and control condensation from chilled-water and refrigeration systems. It also efficiently reduces heat transfer for hot-water plumbing and liquid-heating and dual-temperature piping

It is ideal for applications in:

Ductwork

Dual temperature and low pressure steam lines

Process piping

Air-conditioner, including hot gas piping

Technical specifications:

Property

Unit

Value

Density range

kg/m³

50~100

Flammability

     -

B1

Oxygen index

%

≥33

Thermal conductivity

 -

-

Average tempreture

-20°C

0°C

40°C

w(m.k)

≤0.032

≤0.035

≤0.037

Moisture resistance factor

    -

≥5x10³

Water absorption ratio in vacuum

%

≤10

Dimension stability

105°C ±3°C, 7d

-

≤10

Ozone resistance

200h

%

Good, not cracking

Compress resilience ratio

Compression ratio 50%

Compression time 72h

%

≥70

Aging resistance

-

150 hours, slight wrinkles, no cracks, holes or distortion

Dimensions

-

Pipes/tubes are in 1.83 mtr or 1.85 mtr length

Sheet in rolls 1 mtr or 2 mtr width
