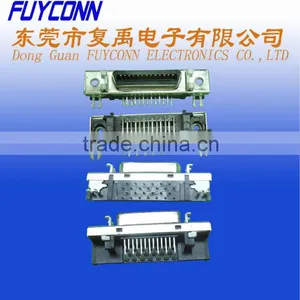

Help CenterPCB Right Angle Female SCSI Connector
Related Products
-
High-performance 14 Way SCSI Solder Assemble Male Type Connector Approved SGS/UL E 346172NegotiableMOQ: 1 Piece -
SCSI PCB STRAIGHT CONNECTOR CLASSIC TYPE 14 PIN MALE CONNECTORNegotiableMOQ: 2000 Pieces
-
AMP SCSI PCB STRAIGHT SOLDER CONNECTOR TYPE MALENegotiableMOQ: 2000 Pieces
-
SCSI CONNECTOR PCB RIGHT ANGEL CONNECTOR CLASSIC TYPE FEMALENegotiableMOQ: 2000 Pieces
-
AMP Connector SCSI CENTRONIC CONNECTOR FOR ROUND CABLE TYPE MALENegotiableMOQ: 2000 Pieces
Specifications
Name: PCB Right Angle Female SCSI ConnectorHigh quality: Compliant ROHS
Competitive price
Delivery in time
1 Materials
Connector: Phosphor Brass,
Refer to the P/N system for the Gold plating on mating area
2.54-5.08um pure matta Tin plated on temination area
1.27-2.54um Nickel underplated
Shell: Cold Roll 2.54-5.08um Nickel plated over 1.2um min copper
Housing : Hight temperature plastic, color black ,UL 94V-O rated
Cover: Hight temperature plastic, color black ,UL 94V-O rated
Board lock:C.R.S , 1.27-3.81?m Nickel plated over 1.27um min cu
2.Mechanical Characteristics
Durablity: 500 cycles min. for 0.76um gold
250 cycles min, for 0.38 um
50 cycles min , for gold flash
Contact Retention Force with insulator : 4.4 U min per contact
Mating Force :1.22 N Max/ Contact
Unmating Force: 0.20 N Mix / Contact
The housing flatness: should be within 0.003 mm/mm
Latch Retention Force : 300N min per connector
3 Electrical Characteristics:
Contact Rating : 1 A
Contact Resistance : 35m Max
Insulation Resistence : 7500 M Min .at 500VDC
Operation Temperature:-55 to 105
Dielectric Strenght :500VAC
4 Suitable for PCB with a norminal thickness of 1.56mm
5 Packing :option for tray pack is available
6 NO.of Contacts : 14/26/36/50/68/80/100/120 pin
