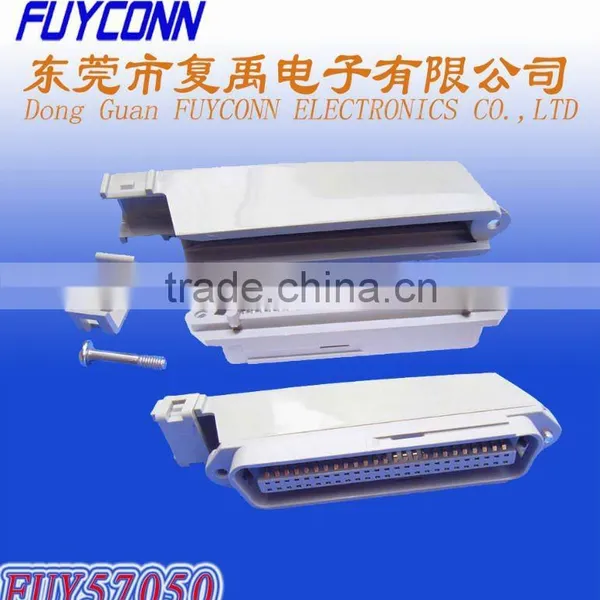

Help CenterTYCO AMP Centronics Champ Solder 50 Pin Male Plug Header Connector With All Right Angel Plastic Cover
Related Products
-
Centronics DDK Champ Solder Male Plug Type Connector With Top Cable Entry Qualified UL E346172US$ 1 - 2MOQ: 1000 Pieces -
57 SERIES CHAMP IDC CENTRONIC CONNECTOR D-SUB V.35NegotiableMOQ: 1000 Pieces
-
TYCO IDC Centronics 64 Pin Receptacle Champ RJ21 Side Entry Cable Connector With Plastic CoverUS$ 2 - 5MOQ: 1000 Pieces
-
Centronics 25 Pairs Female TELCO AMP RJ21 IDC Ribbon Cable Connector With Cable Clamp Certificated ULUS$ 2 - 5MOQ: 1000 Pieces
-
2.16mm Pitch Champ TE 5553921 Centronic Connector 50P IDC Female Receptacle TypeNegotiableMOQ: 100 Pieces
Specifications
Item No.: FUY570501,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features:

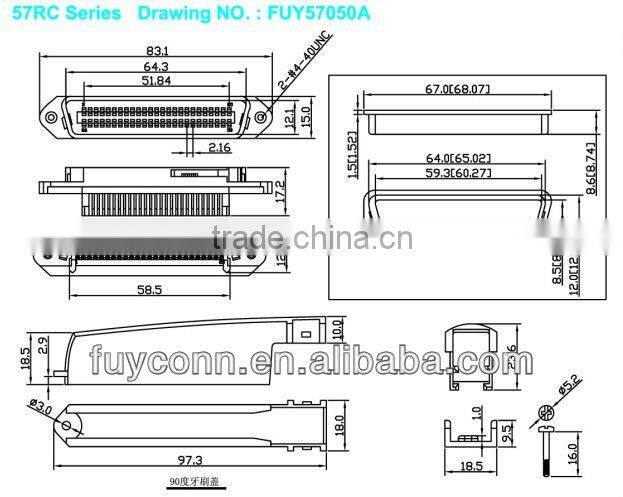

Model: FUY57050
Connector Classification: Plug
Product Type: Connector
Product Line:CENTRONIC/CHAMP
Connector Style: Male
Cover Type :Tapered Cover
Mechanical Attachment:
Com Material:Thermoplastic
Terminal Related Features:
Certerline :2.16mm(0.85 in)
Number of Position: 50 pin
Contact Plating: Gold (A:5u" ,B:10u"C:15u",D:30u")
Contact Material: Hig Strenght Copper Alloy
Housing Features:
Connector Style: Plug
Housing Material:All Plastics Cover
UL Flammability Rating: UL-94-V0
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Technical Parameters:
Packaging
Vacuum Tray
Application
VDSL Teleccom Equipment
Computer Peripherals
