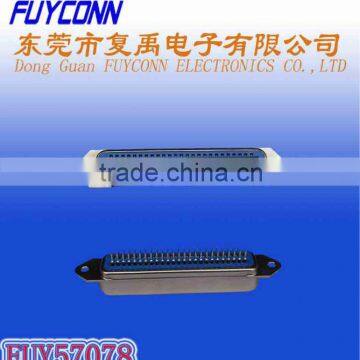

2.16mm Pitch Female Receptacle PCB Straight Solder DIP Termination Type Header Connector

Specifications

Item No.: FUY57078
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample

Specifications



Product features



Product Type: Connector

Connector Model: FUY57078

Product Line:CENTRONIC/Micro-Ribbon

Connector Style: Female

Orientation:Standard Orientation

PCB Mount Style: Straight



Mechanical Attachment



Panel Attachment Style: Square Rivet Insert

Plate Mertial:Thermoplastic

Com Material:Thermoplastic



Terminal Related Features



Certerline :2.16mm(0.85 in)

Number of Position: 14,24,36,50,64 pins

PCB Mount Retention Type: Right Angel

Contact Plating: Gold (A:5u" ,B15u",C:15u",D:30u")

Contact Material: Copper Alloy



Housing Features



Connector Style: Socket

Housing Material: Thermoplastic

UL Flammability Rating: UL 94-V1



Special Function

A:180°C DIP Square Holes (4.2mm)



Finish



Electrical Specifications:

Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C



Application





1, VDSL Teleccom Equipment

2, Computer Peripherals

3, Communication Equipment

4, PCB Board

5, Cable to Panel

6, Cable to cable

7,Computer terminal

8,Telemetering

9,Test Equipment

10, Printer
