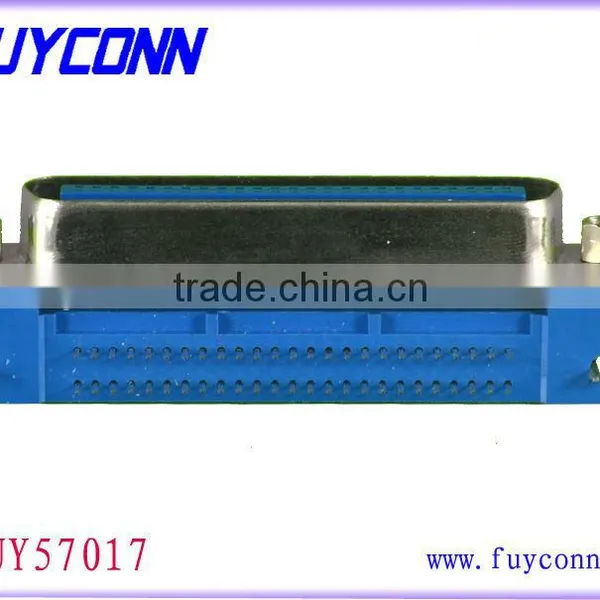

Help CenterPlug 50 Way Male Centronic Connector 25 Pairs PCB Mounting Right Angle
Related Products
-
0.085in Pitch 25 Pairs Champ Right Angle PCB Mount Plug Centronics 25 Pairs Male ConnectorUS$ 1 - 2MOQ: 1000 Pieces -
Male Plug 50 Pin Telecom Connector 25 Pair PCB Mount Right AngleUS$ 1 - 2MOQ: 1000 Pieces
-
57 Series 50 Pin Connector 25 Pairs PCB Mount DIP Right Angle 2.16mm Pitch Header Connector Male Plug TypeUS$ 1 - 2MOQ: 1000 Pieces
-
Right Angle Mounting Amphenol Female Socket 50 Centronic Connector 25 Pairs Solder DIP Receptacle TypeUS$ 1 - 2MOQ: 1000 Pieces
-
Soler DIP Type 57LE Amphenol Right Angle PCB Mount Header Connector 50 Way Female ReceptacleUS$ 1 - 2MOQ: 1000 Pieces
Specifications
Item No.: FUY57017-50P1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Male
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C

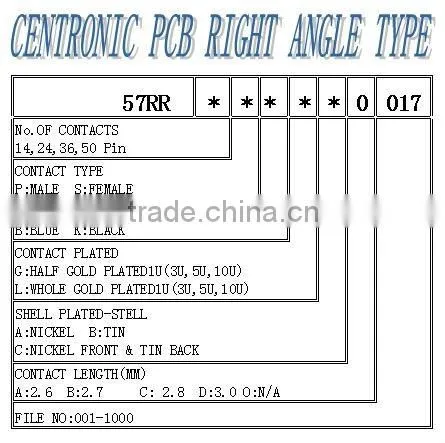

3) Order Information
4)Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
5)Technology Parameters
