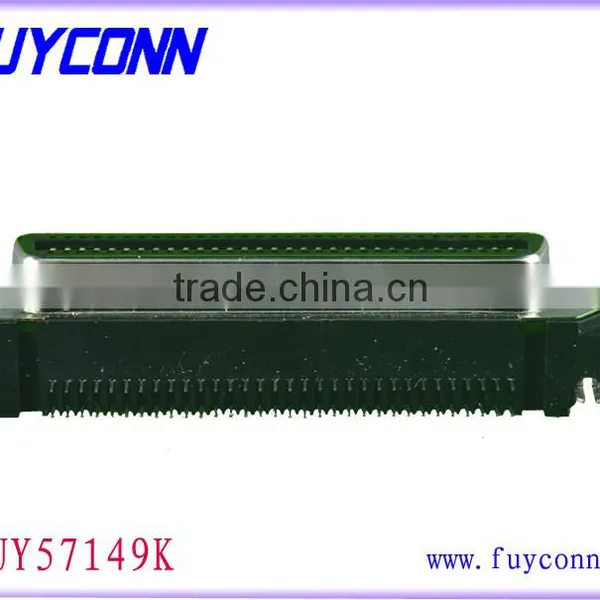

Help CenterRight Angle Mounting Amphenol Female Socket 50 Centronic Connector 25 Pairs Solder DIP Receptacle Type
Related Products
-
Soler DIP Type 57LE Amphenol Right Angle PCB Mount Header Connector 50 Way Female ReceptacleUS$ 1 - 2MOQ: 1000 Pieces -
50 Pin Receptacle Right Angle Solder DIP 57LE Amphenol PCB Mount Connector 25 Pairs FemaleUS$ 1 - 2MOQ: 1000 Pieces
-
57CN 25 Pairs Right Angle PCB Mounting Connector 50 Pin Female Receptacle TypeUS$ 1 - 2MOQ: 1000 Pieces
-
57 Series 50P Communication Female Connector Right Angle PCB Mounting 25 PairsUS$ 1 - 2MOQ: 1000 Pieces
-
57-50 Centronic Connector PCB Mount Right Angle Female Receptacle With Spring LatchesUS$ 1 - 2MOQ: 1000 Pieces
Specifications

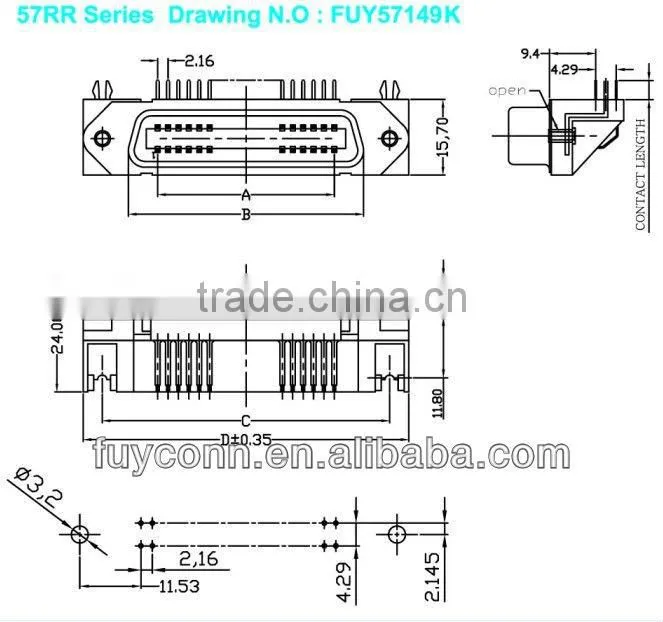

Item No.: FUY57149K-50P1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Common Features
| Designed for Cable-to-cable and cable-to-PC Board applications | |
| Board Application | |
| Available in Plug & Socket styles | |
| Terminal Option with various types | |
| Connector and hood sold as complete assembly | |
| Available in low profile hood style | |
| Metal shell provides grounding and shielding capability | |
| Mates with industry compatible connector |
2) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position: 64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
3) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
5) Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
6) Technology Parameters
