2.16mm Champ Female Receptacle PCB Straight Mount DIP Termination Socket Connector With Boad Lock
US$ 0.8 - 2
/ Piece
1000 Pieces(Min. Order)
- Guangzhou / Shenzhen
- T/T Credit Card
You May Like
-
DDK Plug Male DIP Type Champ 2.16mm Header Connector PCB Straight Mounting
-
Male Plug DDK Champ PCB Straight Solder DIP Termination Type 2.16mm Pitch Header Connector
-
Centronic Champ Connector 2.16mm PCB DIP Straight Male Plug Type Header
-
PCB Straight Solder DIP Termination DDK Female Receptacle Type Connector 2.16mm Pitch Header
-
2.16mm Pitch DIP PCB Straight DDK Female Receptacle Type Connector Rear Rivet Board Lock
-
2.16mm Pitch Champ Receptacle With Spring Latches PCB Straight DDK DIP Female Type Ribbon Cable Connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCONN | |
| Model Number | FUY57077 | Type | Other, Electrical Plug, Straight PCB Connector | |
| Grounding | Non-Grounding | Rated Voltage | 1000V Per Minute | |
| Rated Current | 5Amp | Application | Industrial |
Product Description
Specifications

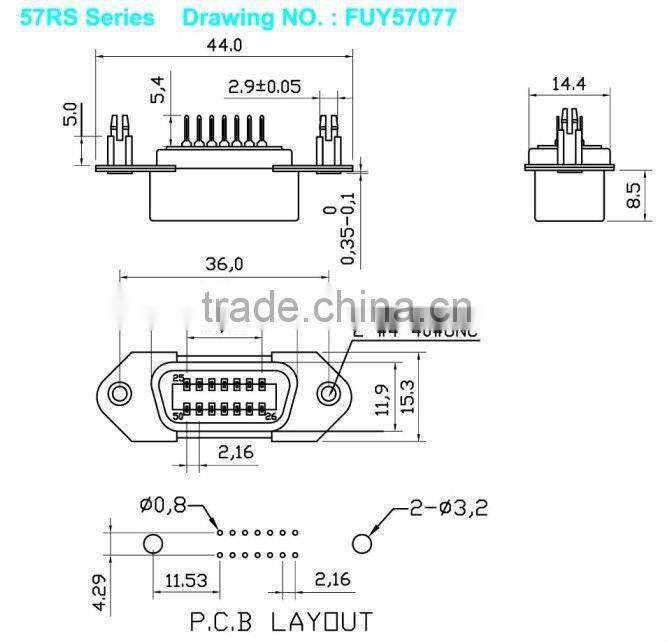

Item No.: FUY570771,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features
Product Type: Connector
Product Line:CENTRONIC
Connector Style: Female
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
Orientation:Standard
Mechanical Attachment
Panel Attachment Style:Rear to Rivet
Insulator Material:Thermoplastic
Terminal Related Features
Solder Tail Contact Plating: Nickel
Terminal Related Features
Certerline :2.16mm(0.85 in)

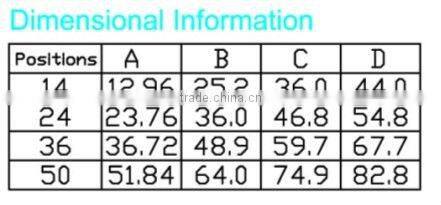

Number of Position: 14,24,36,50,64 pin
PCB Mount Retention Type: Right Angle
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Receptacle
Housing Material: Steel
UL Flammability Rating: UL 94V-O
Special Function
A:90°C DIP pan holes type
B:Pan holes,riveting
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Technology Parameters
