Home > Products > 2.16mm Pitch Champ IDC Connector > TYCO RJ21 90 Degree 50 Pin 25 Pairs Centronic Champ 2.16mm Pitch connector IDC Female Receptale Type

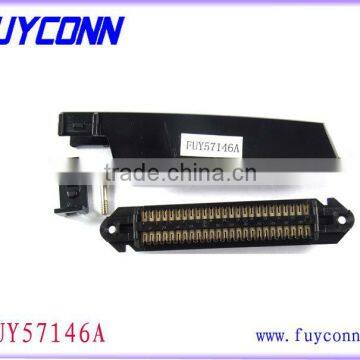

TYCO RJ21 90 Degree 50 Pin 25 Pairs Centronic Champ 2.16mm Pitch connector IDC Female Receptale Type
Negotiable
/ Piece
100 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- Guangzhou
You May Like
-
2.16mm pitch Female PCB Mounting Right Angle Champ Sockets Connector
-
2.16mm pitch Champ Female Centronix Connector Right Angle PCB Mounting
-
2.16mm Pitch 50pin 25 pairs Receptacle Socket Connector Femle Right Angle PCB Mounting
-
2.16mm Pitch Male Champ Right Angle PCB Mount Plug Type Header Connector with Board Lock
-
2.16mm pitch Champ Male Plug Centronic Socket Connector 90 Degree PCB Mounting
-
2.16mm pitch Champ Male Plug Connector DDK DIP PCB Mount Right Angle Header
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCOONN | |
| Model Number | FUY57146A-50P | Type | Other, 57LE Centronics Connector, Centronic IDC Connector | |
| Application | Other, RJ21 Cable | Gender | Other, Female, Female |
Product Description
Specifications
1,ROHS compliant, UL-approved2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
Specifications
1) Product features
1. Product Type: Centronic Connector
2. Product Line Champ IDC Connector
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:50pin
6. Contact Material: Phosphor Bronze
7. Contact Plating: Gold Flash 1u", 3u",5u" ,10u",15u", 30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Orientation:Standard
11. Mating Connector lock: with
12: Mating Connector lock type: Bail Lock, Screwlocks
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
3) Order Information
Remark : 1. This is general information for each of order.
2. Plz reference to filling out this form before inquiry.
3. We will feedback the latest information to you on time.
4. We are look forwar to long term business cooperation with you.
