Large Diameter Corrugated Metal Pipe Galvanized Corrugated Metal Pipe

US$ 600 - 1,900 MOQ: 1 Ton

Key Specifications

Standard:

Grade:

Thickness:

3, 8

Hebei Sinta FRP Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Xingang

Delivery Detail:

Delivery time depends on order quantity.

Thickness 3, 8

Section Shape Round

Outer Diameter 3 - 8 mm

Place of Origin Hebei, China

Secondary Or Not Non-secondary

Application Other, 1.Road culverts 2.Structure relines

Technique Hot Rolled

Certification CE

Surface Treatment Galvanized

Special Pipe EMT Pipe

Alloy Or Not Non-alloy

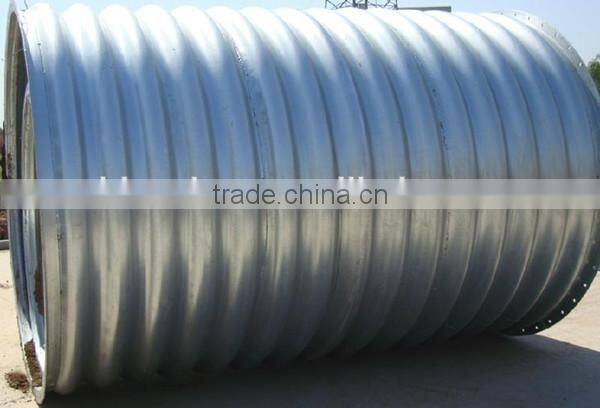

Large diameter corrugated metal pipe galvanized corrugated metal pipe

Product Description

The main application of corrugated steel pipe:

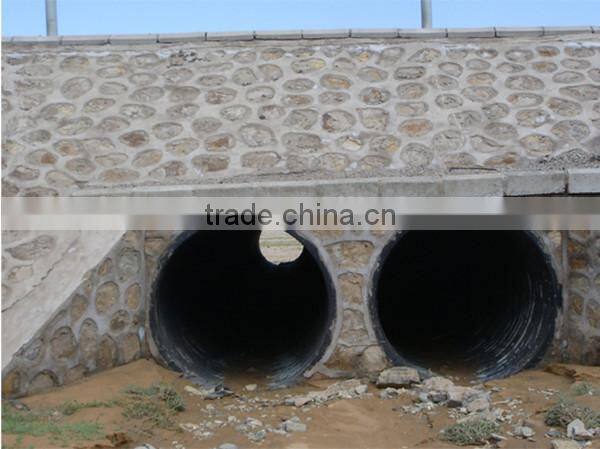

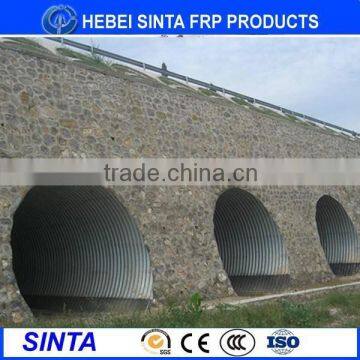

1. Road, railway, hidden trench for waterways, tunnels, culverts, animal channels, and filter wells.

2. For the load-bearing structure for bridge.

3. Down-flow pipes, rainwater pipes, sewage pipes for the city.

4. Underground pipelines.

5. Reinforcement and reconstruction for tunnels, bridges, culverts.

Four types of the corrugated steel pipes as below:

Items	Annular flanged corrugated metal pipe	The spiral corrugated steel pipe	The nestable corrugated steel pipe	structure plate corrugated steel pipe
Material	SS400 or Q235	JIS G3302 SGHC	Q235	SS400 or Q235
Thickness	3.0mm-5.0mm	1.6-4.2mm	1.6-4.5mm	2.0-10.0mm
Diameter (span)	500-2500mm	300-3600mm	500-2800mm	2000mm-16000mm
corrugation	125mm×25mm 150mm×50mm 200mm×55mm	68mm×13mm 76mm×25mm 125mm×25mm	68mm×13mm 76mm×25mm	150mm×50mm 200mm×55mm 400mm×150mm
Lifetime	>75years	>75years	>75years	>75years
Anticorrosion treatment	Hot dip galvanized≥63 µm 2nd anticorrosive	hot dip galvanized≥63 µm 2nd anticorrosive	hot dip galvanized≥63 µm 2nd anticorrosive	hot dip galvanized≥63 µm 2nd anticorrosive
