Help Center355nm Beam Expander
Related Products
Specifications
SpecificationsFor collimation of CO2 laser>100W
Fixed magnifications 1.5x - 10x
Galilei Design
Adjustable divergence

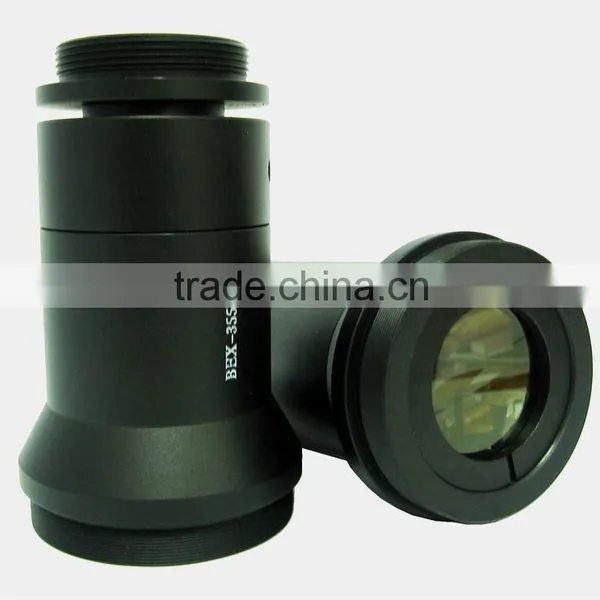

Beam Expander-355nm
BEX series of beam expander has been improved with adjustable mounting with connecting
thread of M16x0.75, M22x0.75 or M30x1
This type of mounting has advantage as the internal lenses will only move along the optical
axis without rotation. Adjustable ring with scales make it more convenient for user’s operation.
BEX series 355nm
Mounting Version for Beam Expander
In correspond with our constant innovation and drive for excellent. We recently release our
new beam expander mounting. Our adjustable mount has been widely accepted model that
ableto compensate various degree of input beam. Now with the new mount, the operation of
adjusting the first lens is more convenient. The user only needs to turn the center part of the
beam expander and the first lens will move accordingly along the optical axis with no rotation.
Specifications
Fixed magnifications
Adjustable divergence
Galilei Design
Damage threshold: 5J/cm2, 10ns
Or 500MW/cm2 ( CW ),1064nm
| Part No. | Magnification | Input CA (mm) | Output CA (mm) | M1 | Dia 1 (mm) | Dia 2 (mm) | L1(mm) | L2 (mm) |
|---|---|---|---|---|---|---|---|---|
| BEX-355-1.5X | 1.5x | 7.0 | 24.0 | M30x1 | 36.0 | 46.0 | 76.5 | 48.1 |
| BEX-355-2X2 | 2.0x | 6.0 | 23.0 | M22x0.75 | 28.0 | 33.0 | 57.0 | 47.0 |
| BEX-355-2X | 2.0x | 7.0 | 24.0 | M30x1 | 36.0 | 46.0 | 75.6 | 47.2 |
| BEX-355-3X | 3.0x | 7.0 | 24.0 | M30x1 | 36.0 | 46.0 | 77.3 | 48.9 |
| BEX-355-4X | 4.0x | 8.0 | 28.0 | M30x1 | 36.0 | 46.0 | 77.3 | 48.9 |
| BEX-355-4XA | 4.0x | 8.0 | 28.0 | M22x0.75 | 30.0 | 38.0 | 82.5 | 72.5 |
| BEX-355-5X | 5.0x | 8.0 | 28.0 | M30x1 | 36.0 | 46.0 | 71.0 | - |
| BEX-355-7X | 7.0x | 8.0 | 28.0 | M30x1 | 32.0 | 45.0 | 88.1 | 73.1 |
| BEX-355-8X | 8.0x | 8.0 | 28.0 | M30x1 | 36.0 | 46.0 | 84.0 | 70.0 |
| BEX-355-10X | 10.0x | 6.0 | 28.0 | M30x1 | 36.0 | 45.0 | 96.0 | 80.5 |
| BEX-355-15X | 15.0x | 6.0 | 28.0 | M30x1 | 35.0 | 44.0 | 95.0 | - |
| BEX-355-20X | 20.0x | 6.0 | 28.0 | M30x1 | 36.0 | 45.0 | 97.0 | 81.3 |
Package:plywood packages
Shipping: Door to door by DHL, FedEx UPS. TNT. (About 3-5 days)
1. One year equipment warranty and lifetime warranty maintenance
2. Free installation and test before sending and free training for operators
3. Advice for the solutions best for customers requirements.
4. Free training and sample provided.
1. Specialized in production of Lasers and laser-related equipment
2.Independent research and development
3.Spare parts self produced, production cost is in control.
Warranty: 1 year
Minimum order quantity:1 set
Payment term:TT, western union
Delivery time:3-5 days after payment
